The Printed Equatorial Tripod.

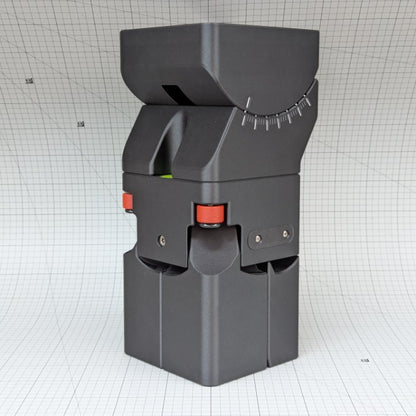

The Printed Equatorial Tripod (PET), fully assembled and tested.

Printed in PETG-CF, each Astrograph is expertly hand built to the highest standard.

• Assembled by the Designer of the MountOne.
• Printed in PETG-CF.
• Includes The PET CAD Pack.


You will also receive The PET CAD Pack. An email will be sent to you after check-out containing a download link.

The MountOne Documentation.

Please allow up to 28 days before shipment as each Astrograph is made to order.

The MountOne Printed Equatorial Tripod (PET).

The PET features adjustable legs, an integrated spirit level, and polar alignment for latitudes between 30-90°.

Adjusters at the top of the legs level the tripod, referencing a spirit level in the base. The upper section of the PET can be tilted back 60° and locked in place using a securing clamp.

The MountOne is powered via cables running through the PET. A standard DC Jack resides at the back of the PET, between the left & right legs, feeding 24V power into the MountOne.

The PET Can be folded back up at the end of your session, or leave the MountOne attached and move it as a single unit.

Also available fully assembled.

• The MountOne GOTO Telescope Mount.
• The DSLR Astrograph.

• The 100MM Astrograph.
• The Pinefeat Lens Controller Astrograph.

• The Sky-Watcher SKYMAX 102 OTA Astrograph.


The MountOne GOTO Mount shown in the images is not included.
