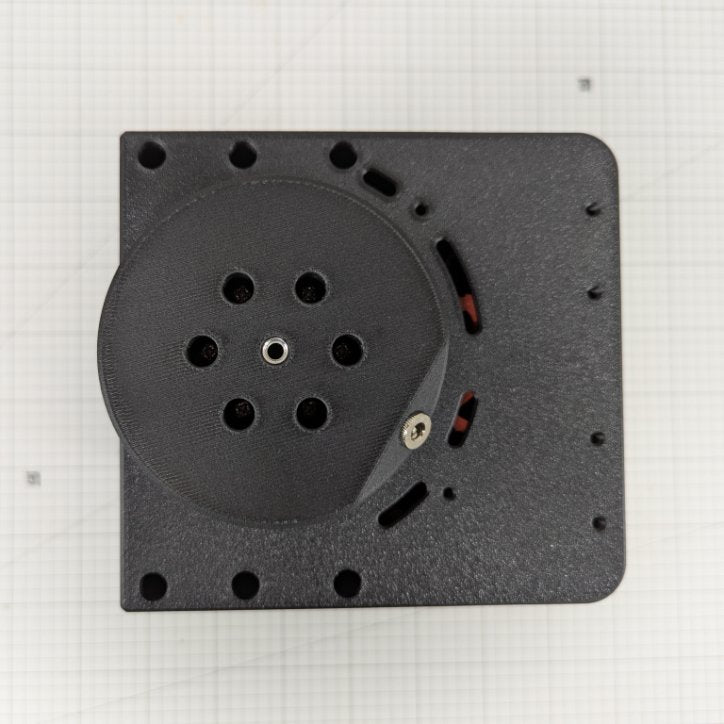

The MountOne GOTO Telescope Mount.

The MountOne GOTO Telescope Mount, fully assembled and tested.

Printed in PETG-CF, each MountOne is expertly hand built to the highest standard.

• Assembled by the Designer of the MountOne.
• 3 x Stepper Drivers for DEC/RA/FOC.
• The Latest OnStep Firmware.
• Includes a 24v 4A Power Adapter.
• Printed in PETG-CF.
• Includes The MountOne CAD Pack.

You will be contacted after purchasing an assembled MountOne to discuss your specific configuration options.

You will also receive The MountOne CAD Pack. An email will be sent to you after check-out containing a download link.

The MountOne Documentation.

Please allow up to 28 days before shipment as each MountOne is made to order.

The MountOne GOTO Telescope Mount.

The MountOne GOTO Telescope Mount uses two high performance 0.9° stepper motors coupled to two 5-stage 405:1 belt-driven reduction-drives. This configuration removes almost all backlash in the motion system. The MountOne is able to track with a computed  resolution of 0.25 arcseconds per-step while still being able to slew at 3° a second.

Eighteen bearings in the DEC & RA axes provide smooth and jitter free movement. Genuine Gates 3GT belts are used for each compound stage and are individually tensioned for optimal performance.

Integrated Slip-Rings pass power and signal data between the MountOne and one of four attached astrographs.

OnStep firmware controls the mount and provides a data-link to a huge range of astronomy software packages via one of four attached astrographs.

Also available fully assembled.

• The Printed Equatorial Tripod.

• The 100MM Astrograph.
• The DSLR Astrograph.

• The Pinefeat Lens Controller Astrograph.

• The Sky-Watcher SKYMAX 102 OTA Astrograph.


Please note that the small desk tripod is not included.
