The 100MM Astrograph.

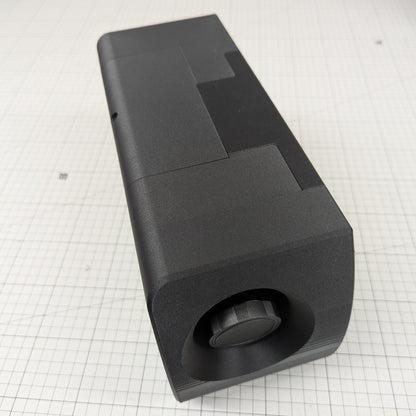

The 100MM Astrograph, fully assembled and tested.

Printed in PETG-CF, each Astrograph is expertly hand built to the highest standard.

• Assembled by the Designer of the MountOne.
• 100mm f/3.5 Apochromatic Lens.
• Raspberry Pi HQ Camera.
• 8GB Raspberry Pi 5 & 256GB M.2 HAT.
• Adafruit Ultimate GPS.
• Printed in PETG-CF.
• Includes The 100MM Astrograph CAD Pack.

You will also receive The 100MM CAD Pack. An email will be sent to you after check-out containing a download link.

The MountOne Documentation.

Please allow up to 28 days before shipment as each Astrograph is made to order.

The MountOne 100MM Astrograph.

Front and centre, top, is a 100mm f/3.5 apochromatic C-Mount lens. The lens has manual iris and focus control rings on the exterior of the lens.

The 100MM Astrograph enables automatic focus control of the lens by way of a stepper motor, belt and printed focus ring. Taking advantage of OnStep's INDI Focus driver, we can remotely control and adjust the precise position of the 100mm's focal plane.

Twin 6811-2RS bearings (the same as used in the MountOne), support any tension on the belts that adjust the focus. This keeps any stresses off both the lens and the Raspberry Pi HQ Camera it attaches to.

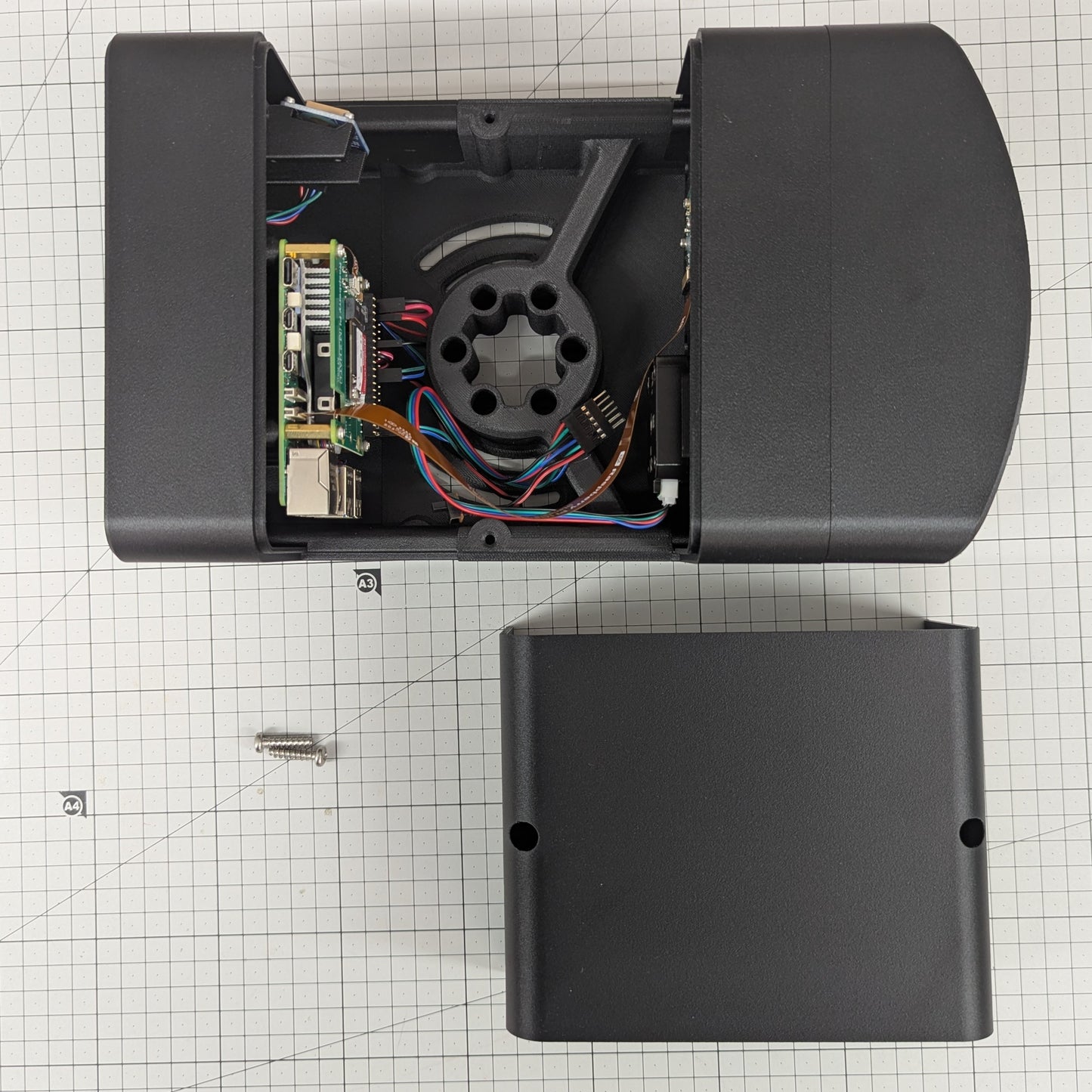

The 100MM astrograph integrates the lens, focus system, HQ Camera, a Raspberry Pi 5 & accessories, power converter, and an optional GPS into a single unit.

Also available fully assembled.

• The MountOne GOTO Telescope Mount.
• The Printed Equatorial Tripod.

• The DSLR Astrograph.

• The Pinefeat Lens Controller Astrograph.
• The Sky-Watcher SKYMAX 102 OTA Astrograph.


The MountOne GOTO Mount shown in the images is not included.
