The Pinefeat Hardware Kit.

The Hardware Kit for The PineFeat (PF) Lens Controller Astrograph.

Considerable time and effort has gone into selecting and testing the components in the PF Hardware Kit.

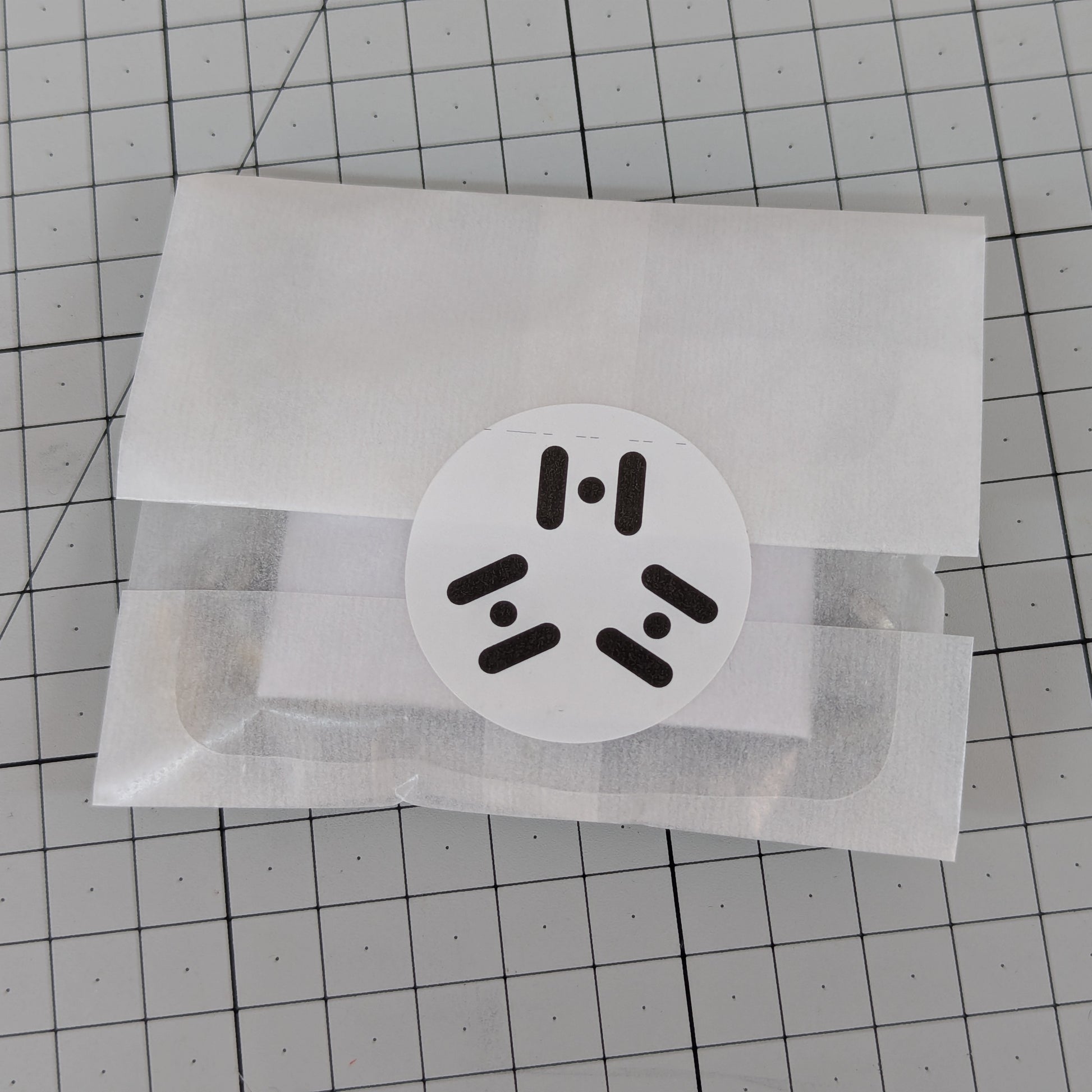

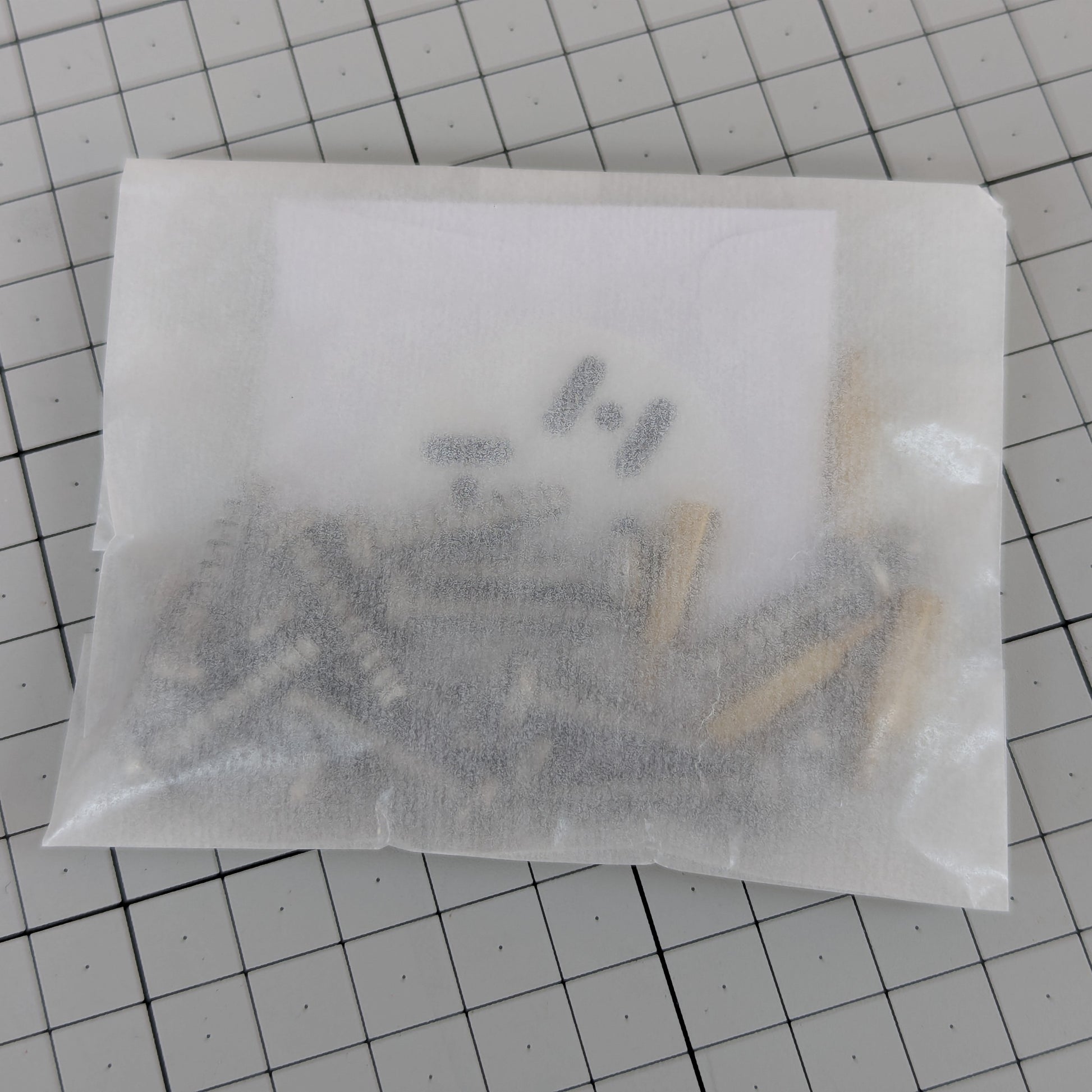

Each part has been selected for its quality, tested to ensure its durability and packaged together into The PF Hardware Kit for your convenience.

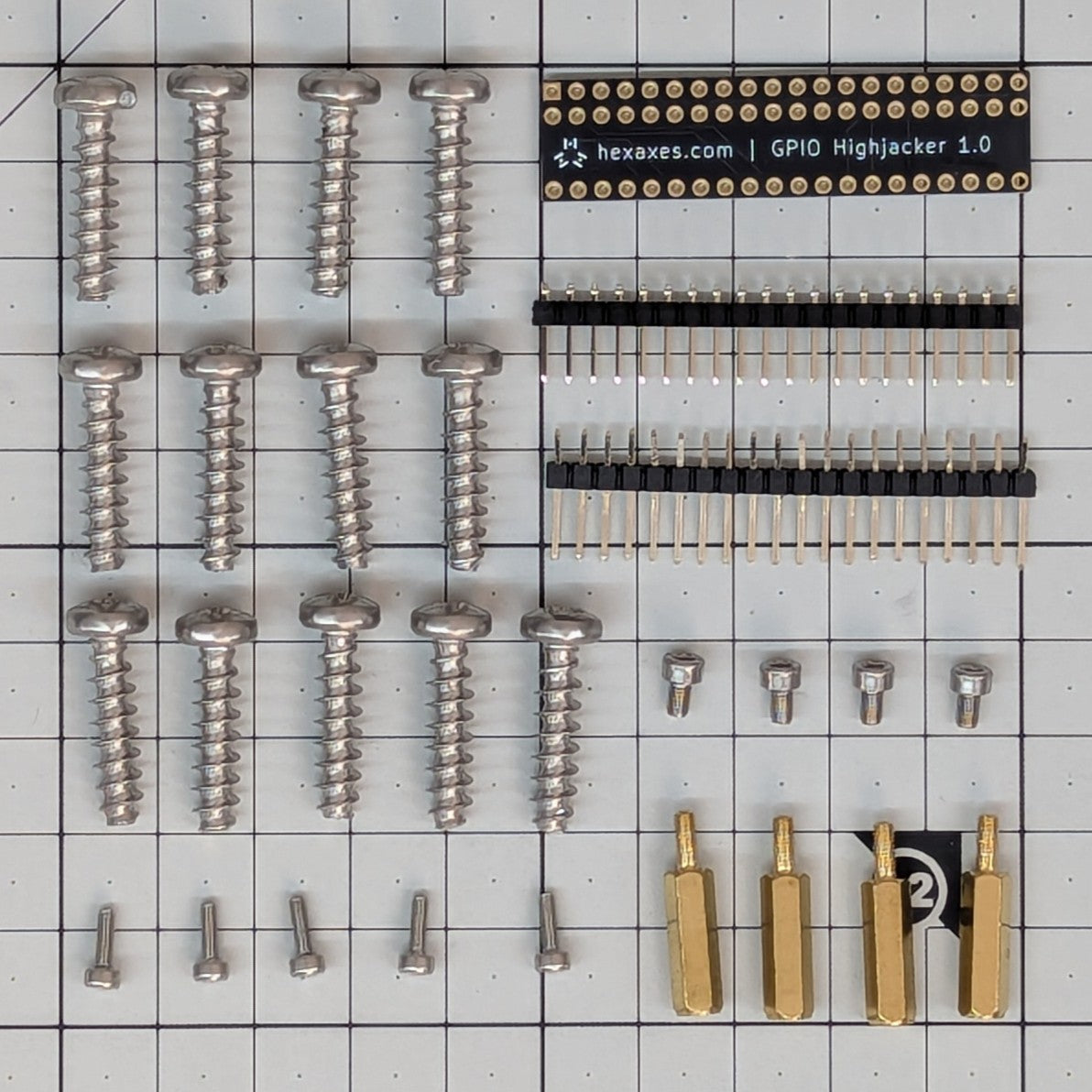

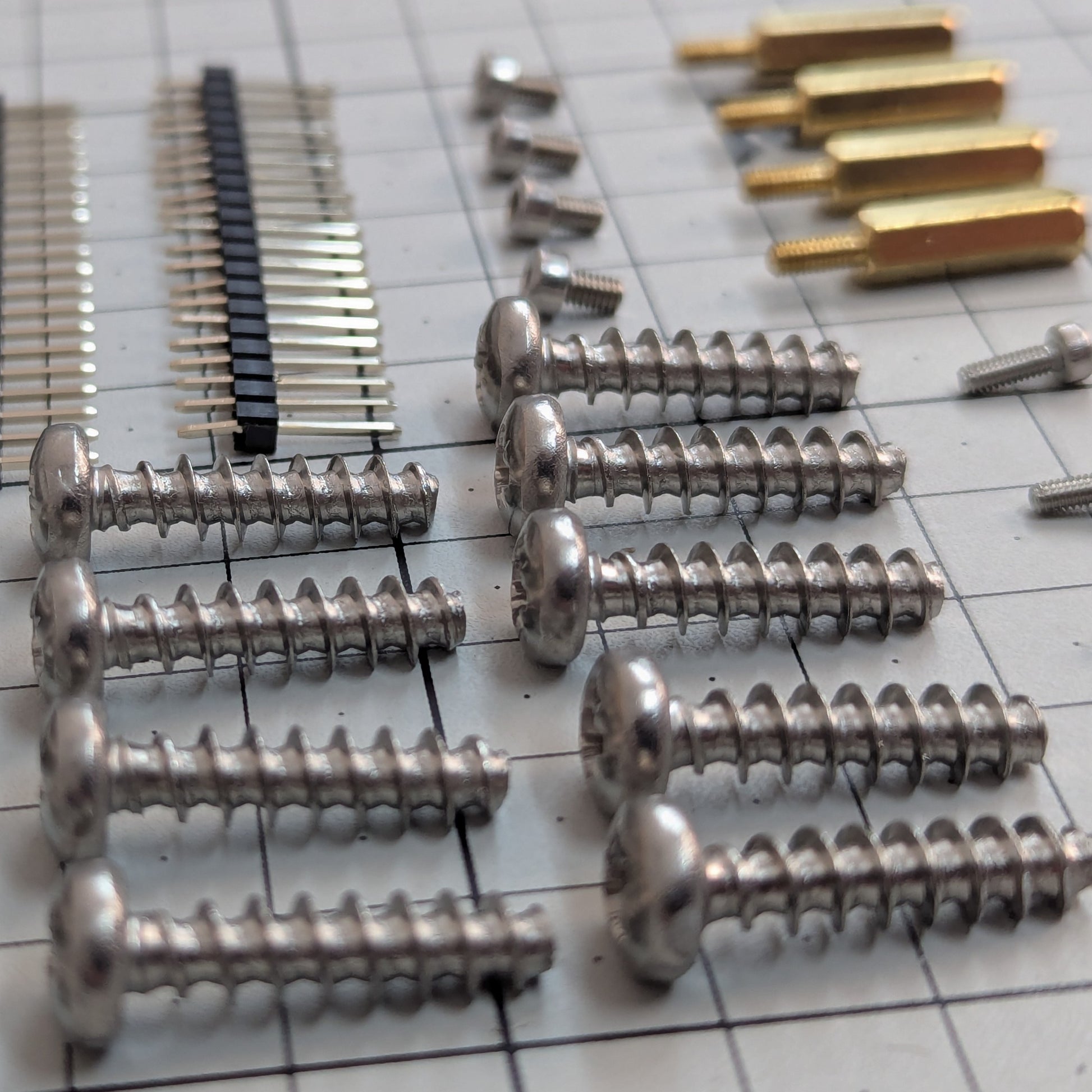

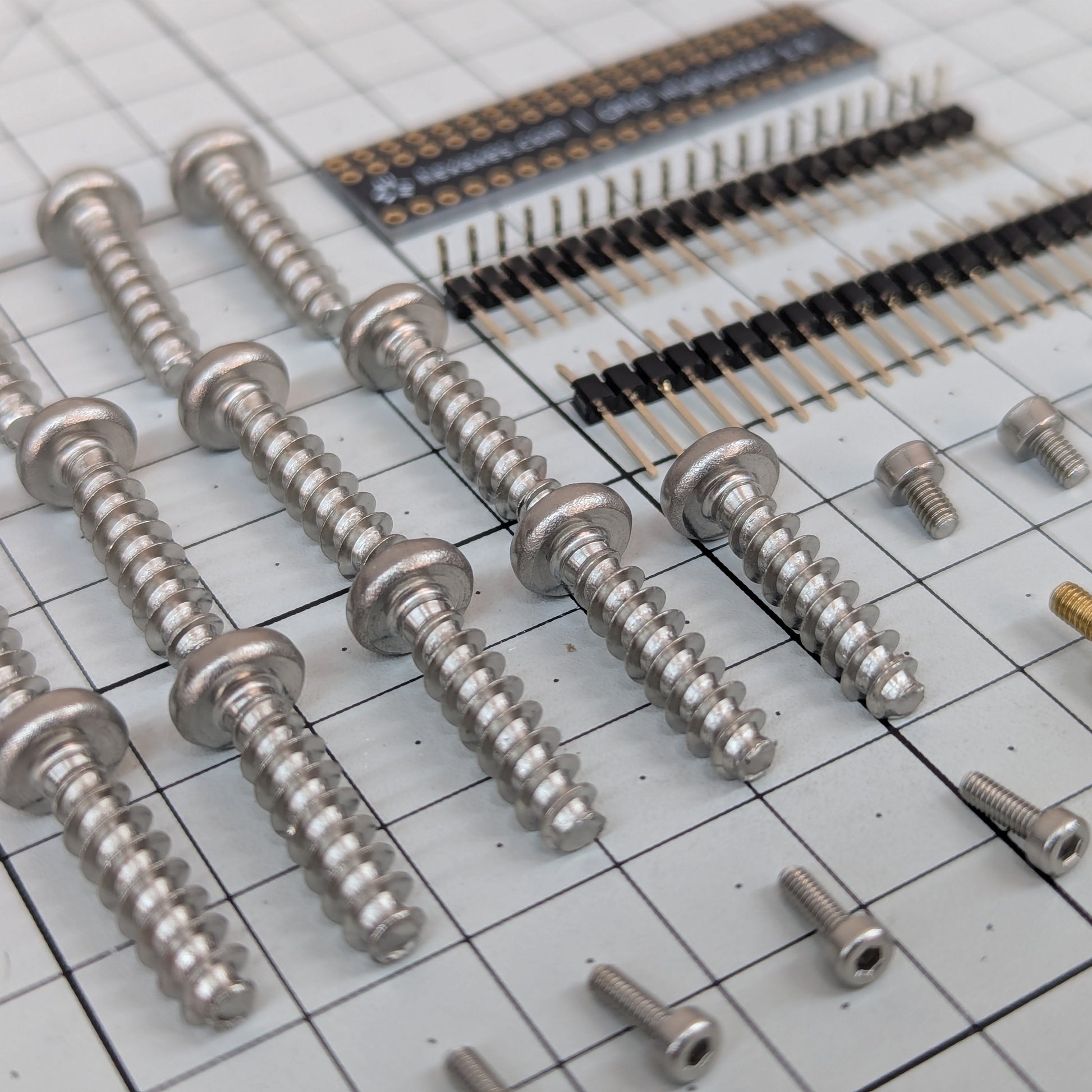

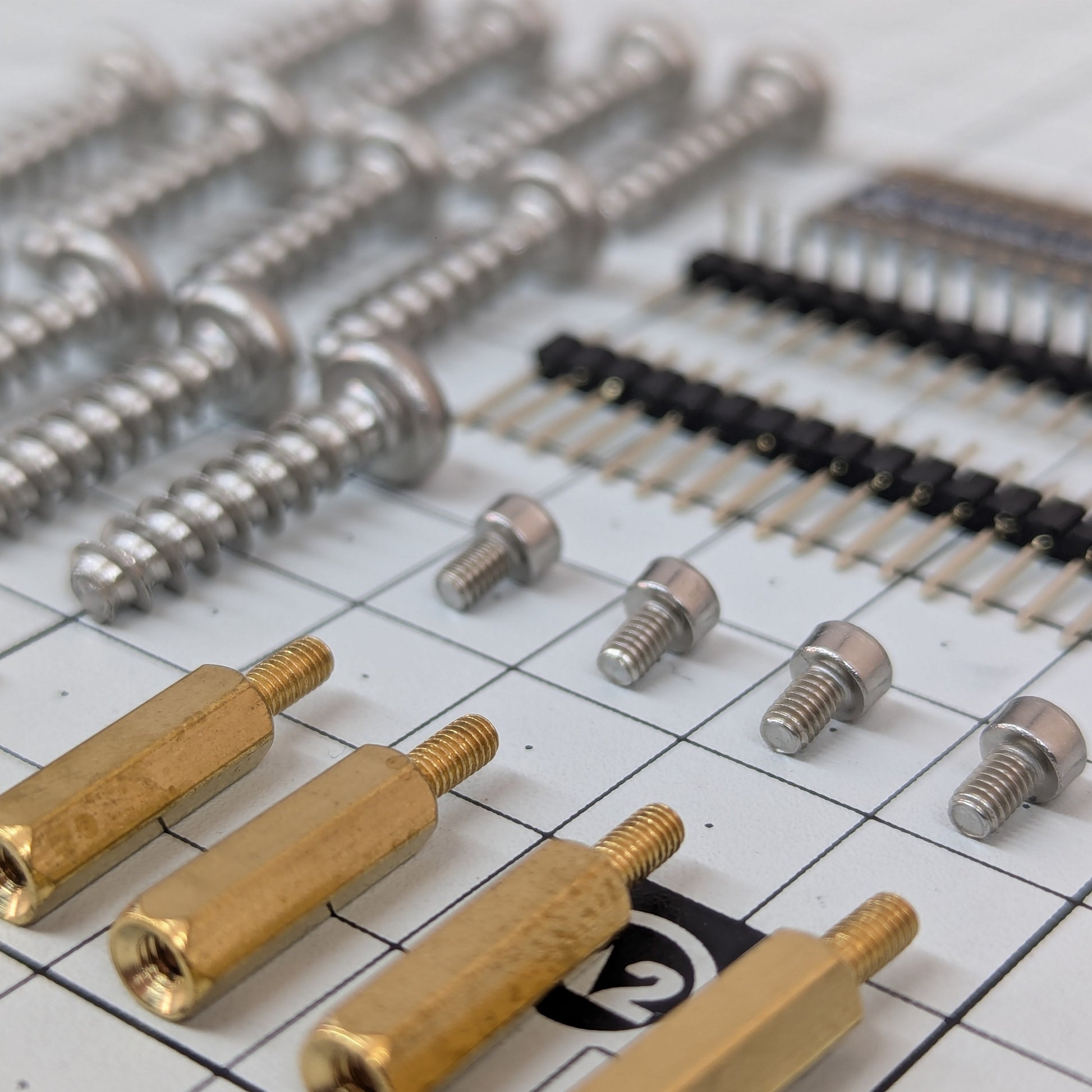

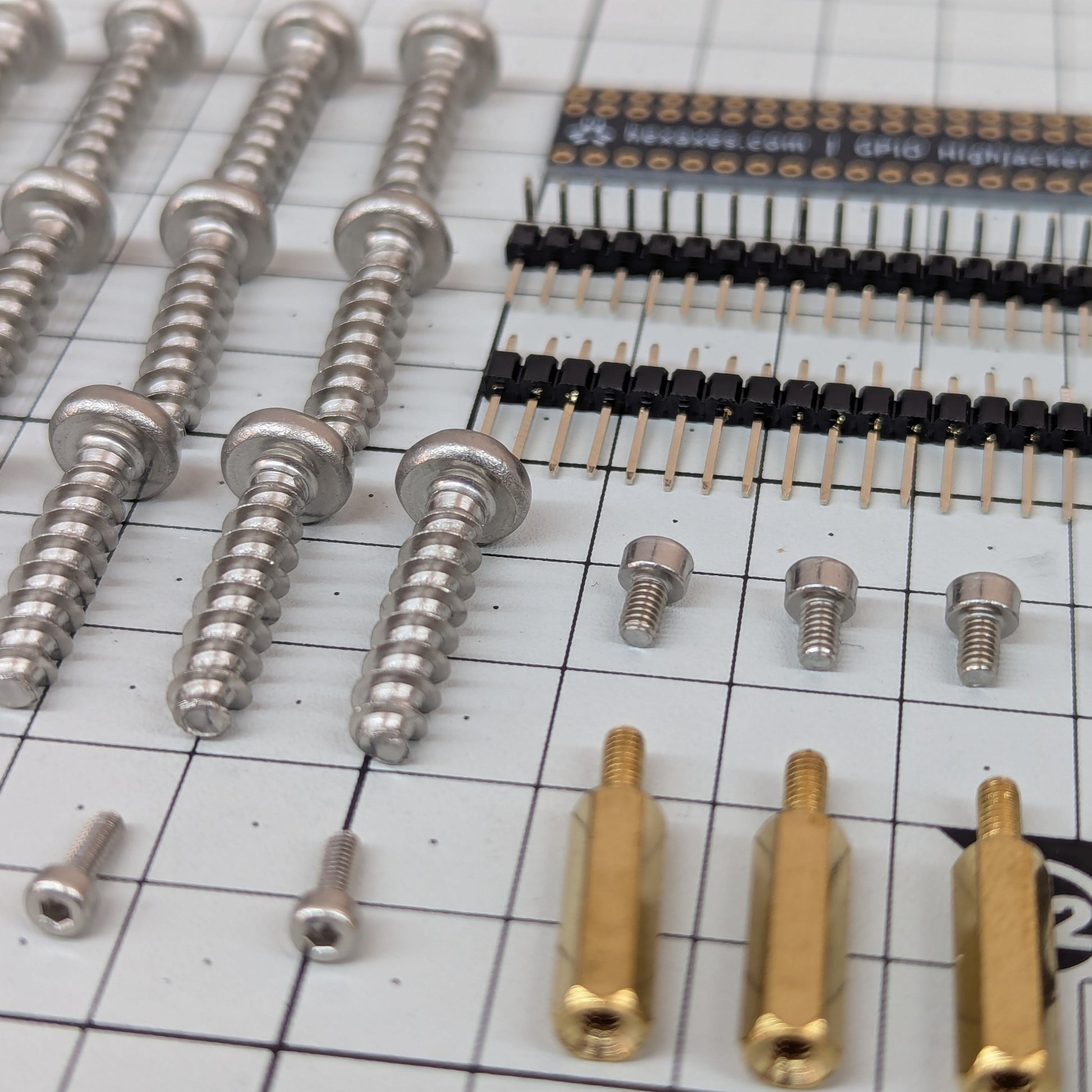

The PF Hardware Kit includes the following parts.

• 13 x M5 20mm Screws for Plastic.
• 1 x GPIO Highjacker.
• 4 x M2.5 4mm Socket Cap Screws.
• 4 x M2.5 15mm Standoffs.
• 6 x M2 6mm Socket Cap Screws.

Included with the PF Hardware Kits are the following downloads.

• The Pinefeat CAD Pack.
  • STEP Files, including the Main Assembly.
  • STL Files, full sets with all calibration sizes.
  • F3Z Fusion Files, the fully-editable Master Assembly.
  • PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
  • 3MF Files, for Bambu Lab P2S & A1 Mini.


Click here for full details on The PF CAD Pack.

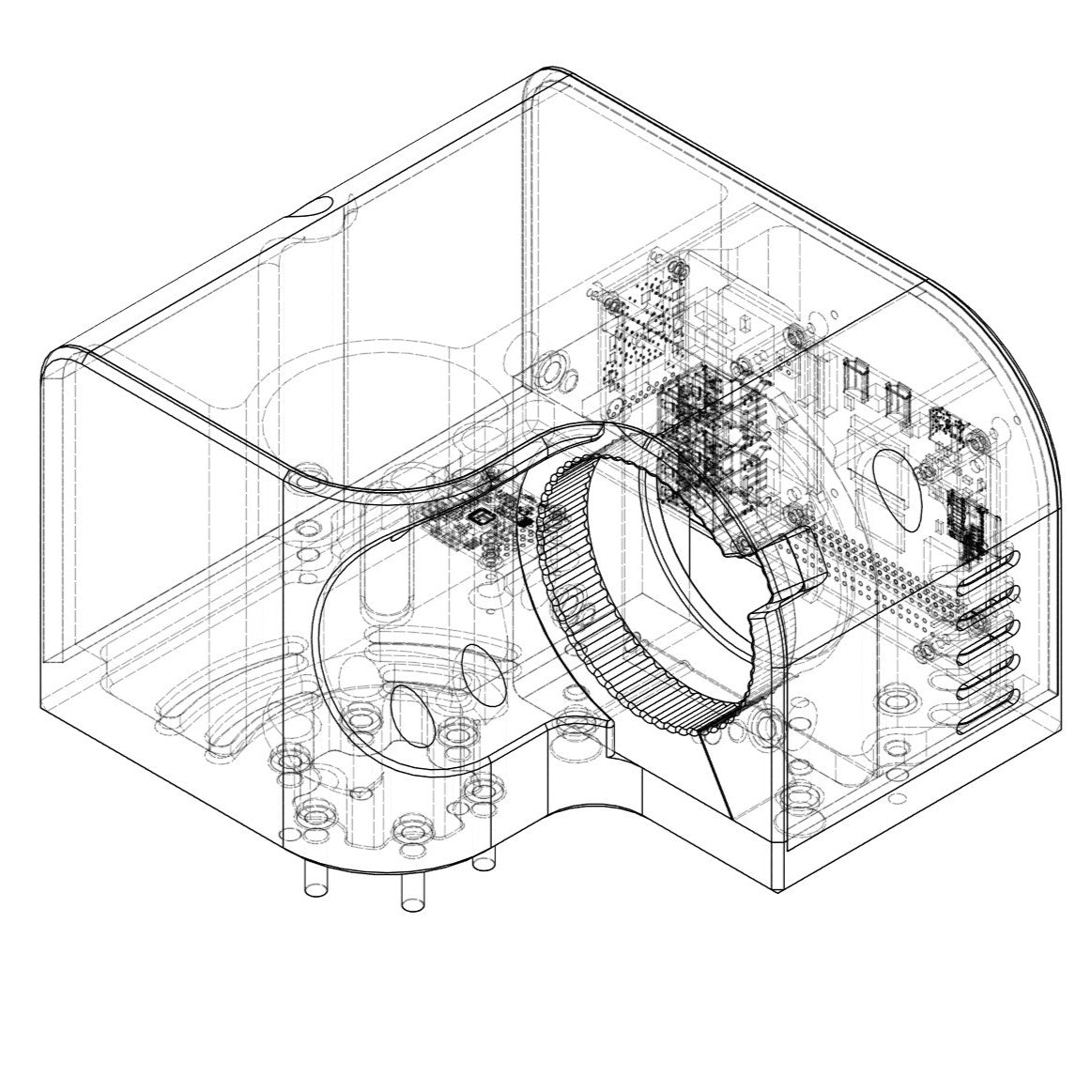

The PineFeat (PF) Lens Controller Astrograph.

The PF Lens Controller Astrograph enables the use of Canon EF & EF-S lenses with the MountOne. The PF Lens Controller INDI Driver manages focus calibration and focus control making the lens autofocus fully functional for this astrograph.

Use the Raspberry Pi 5 Model B or Computer Module 5 with an external Wi-Fi antenna. Imaging happens with the Raspberry Pi HQ Camera, with a spot for an optional GPS.

The PF Assembly Documentation.
