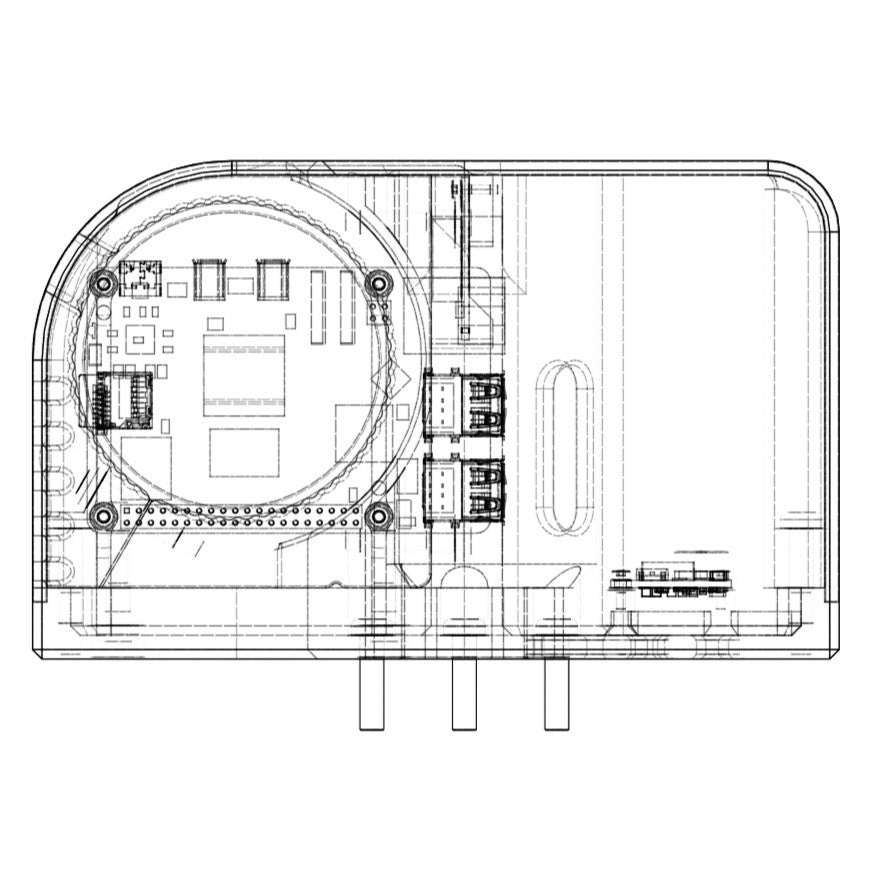

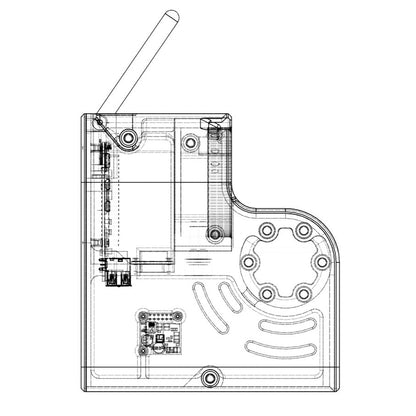

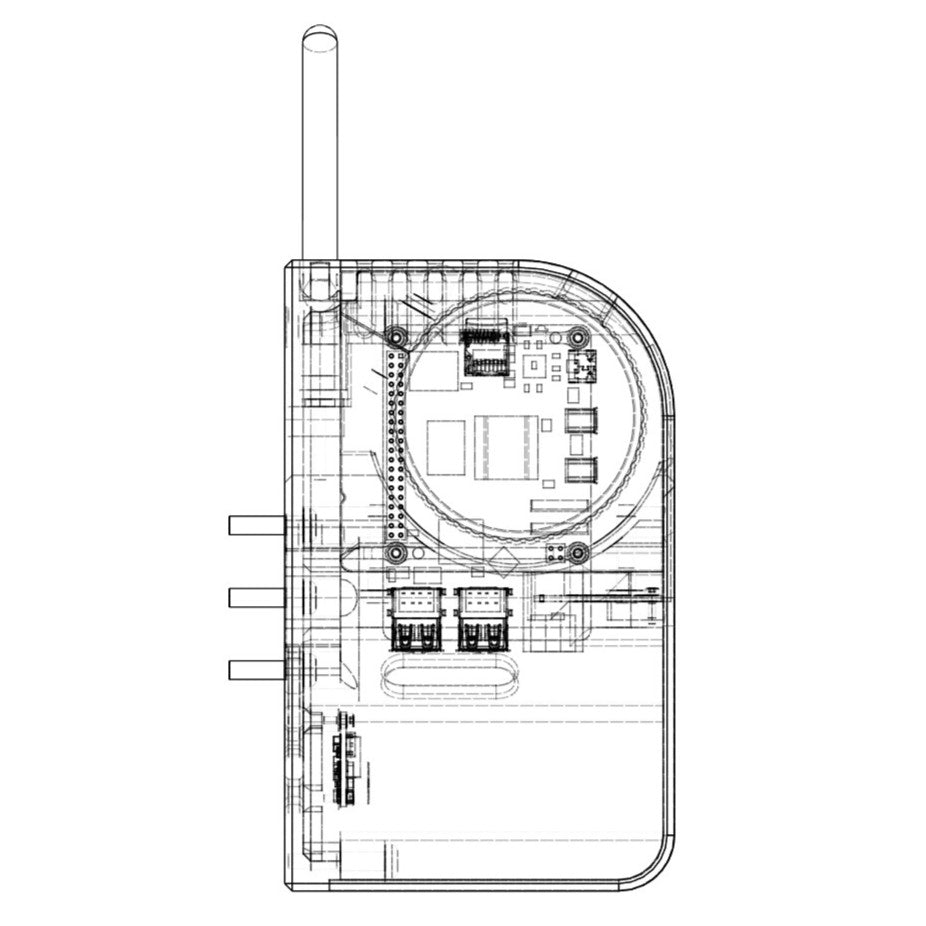

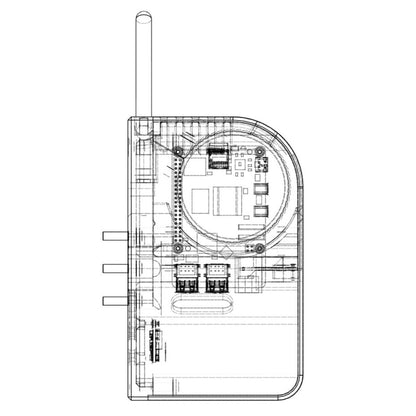

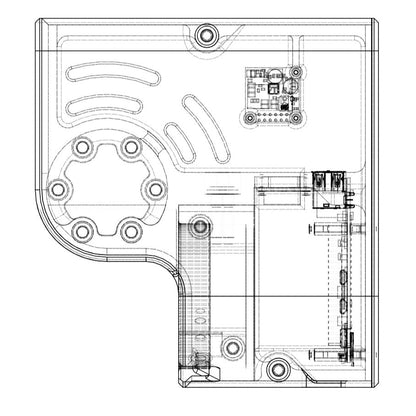

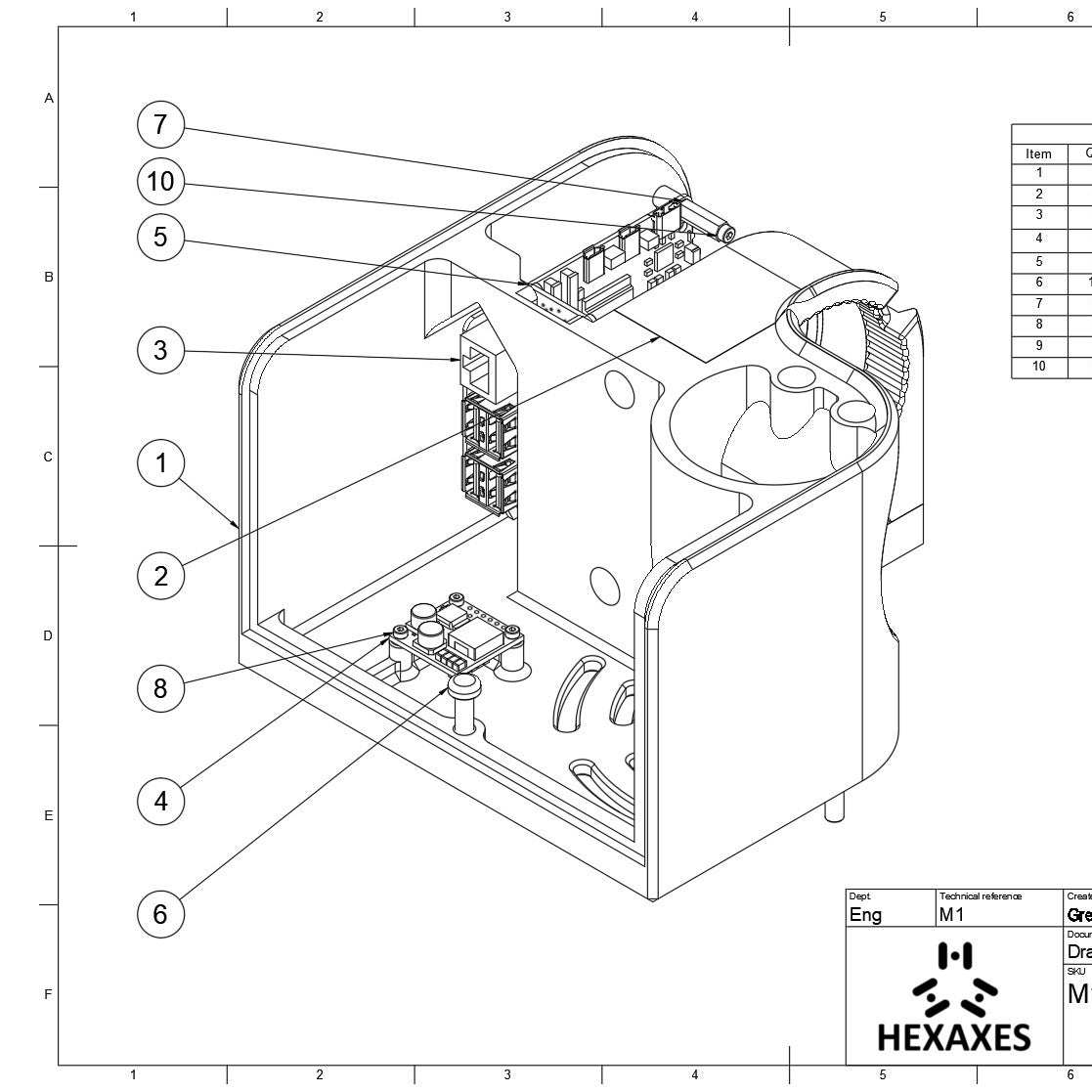

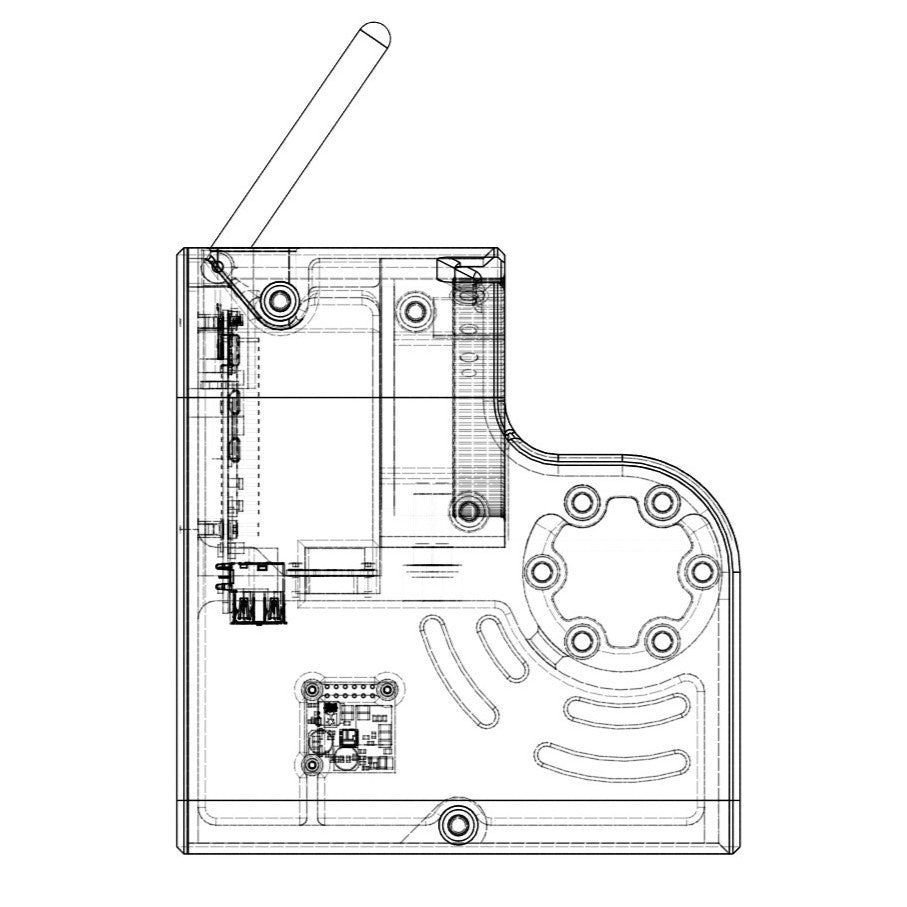

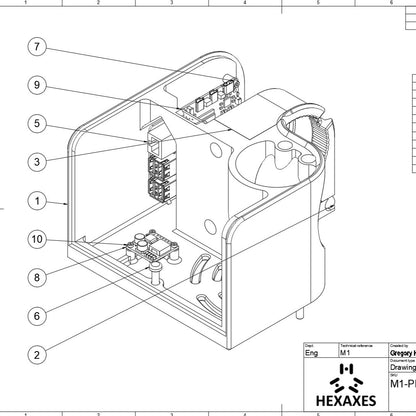

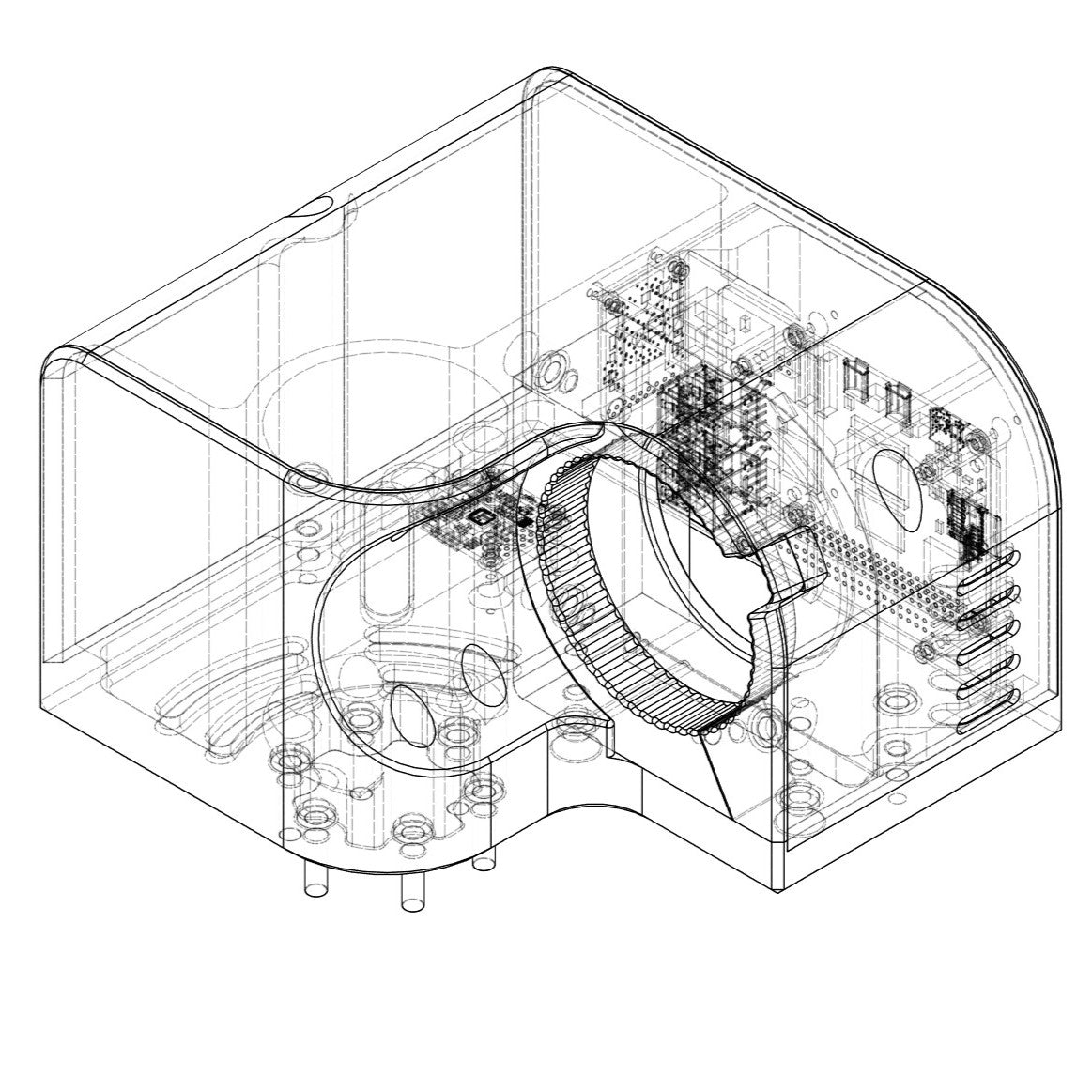

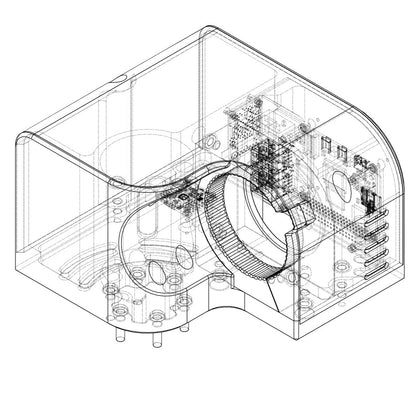

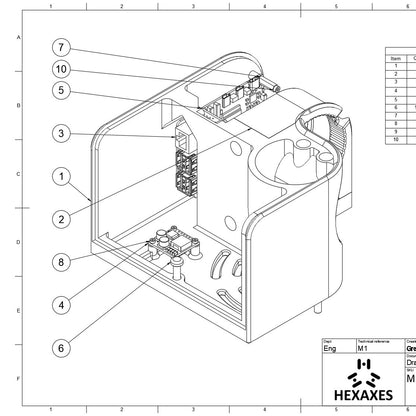

The Pinefeat CAD Pack.

The PF CAD Pack contains all digital resources for the MountOne PineFeat Lens Controller Astrograph.

Contained in The PF CAD Pack are

• STEP Files, including the Main Assembly.
• STL Files, full sets with all calibration sizes.
• F3Z Fusion Files, the fully-editable Master Assembly.

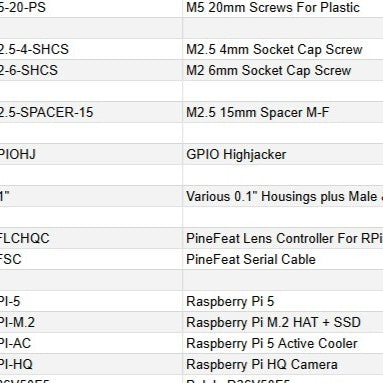

• PDF Files, Bill-Of-Materials with Fixings & Printed Parts.

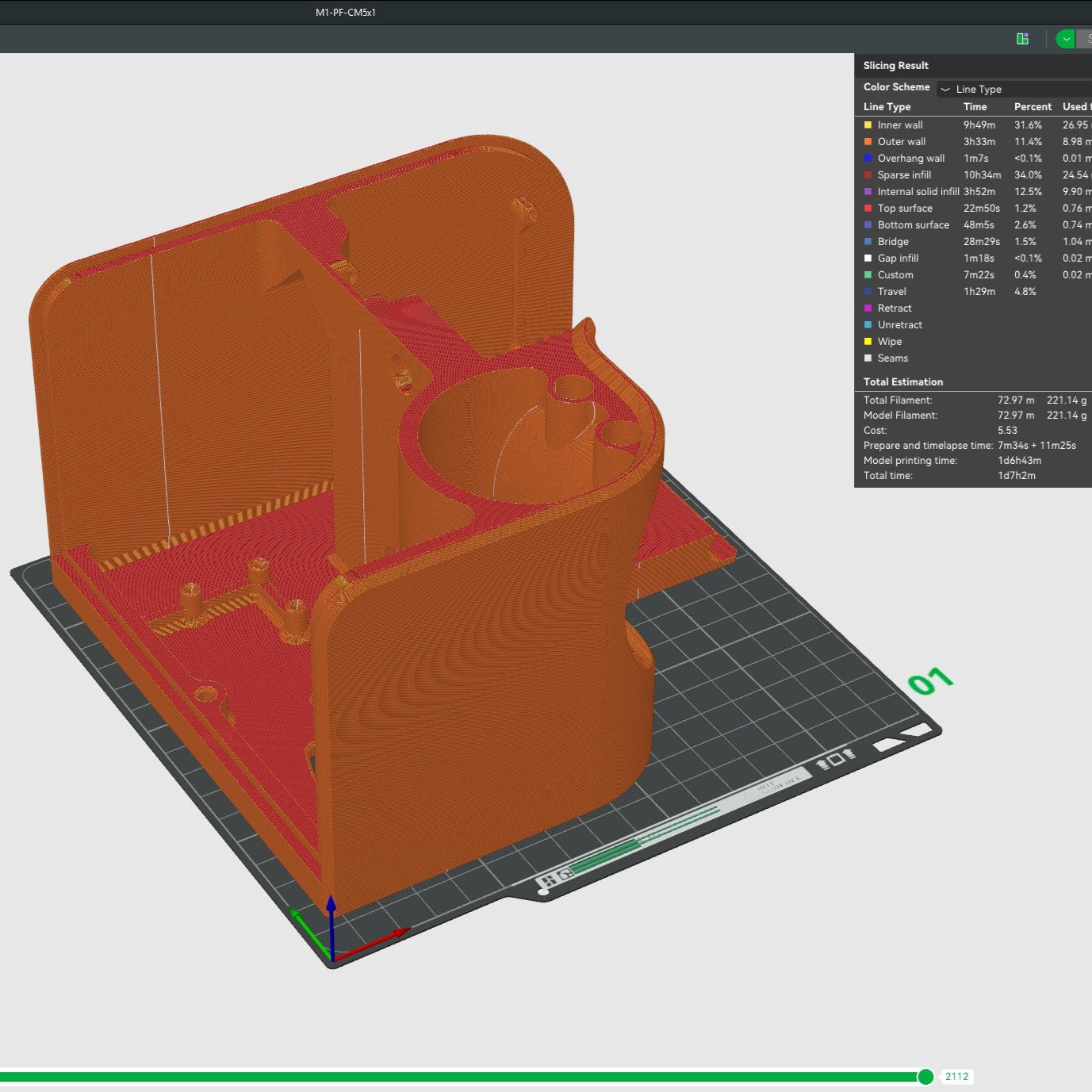

• 3MF Files, for Bambu Lab P2S & A1 Mini.

A direct-download link will be emailed to you after check-out.

Both the Model B & the Compute Module versions are included.

The PF CAD Pack is included with all purchases of The PF Hardware Kit.

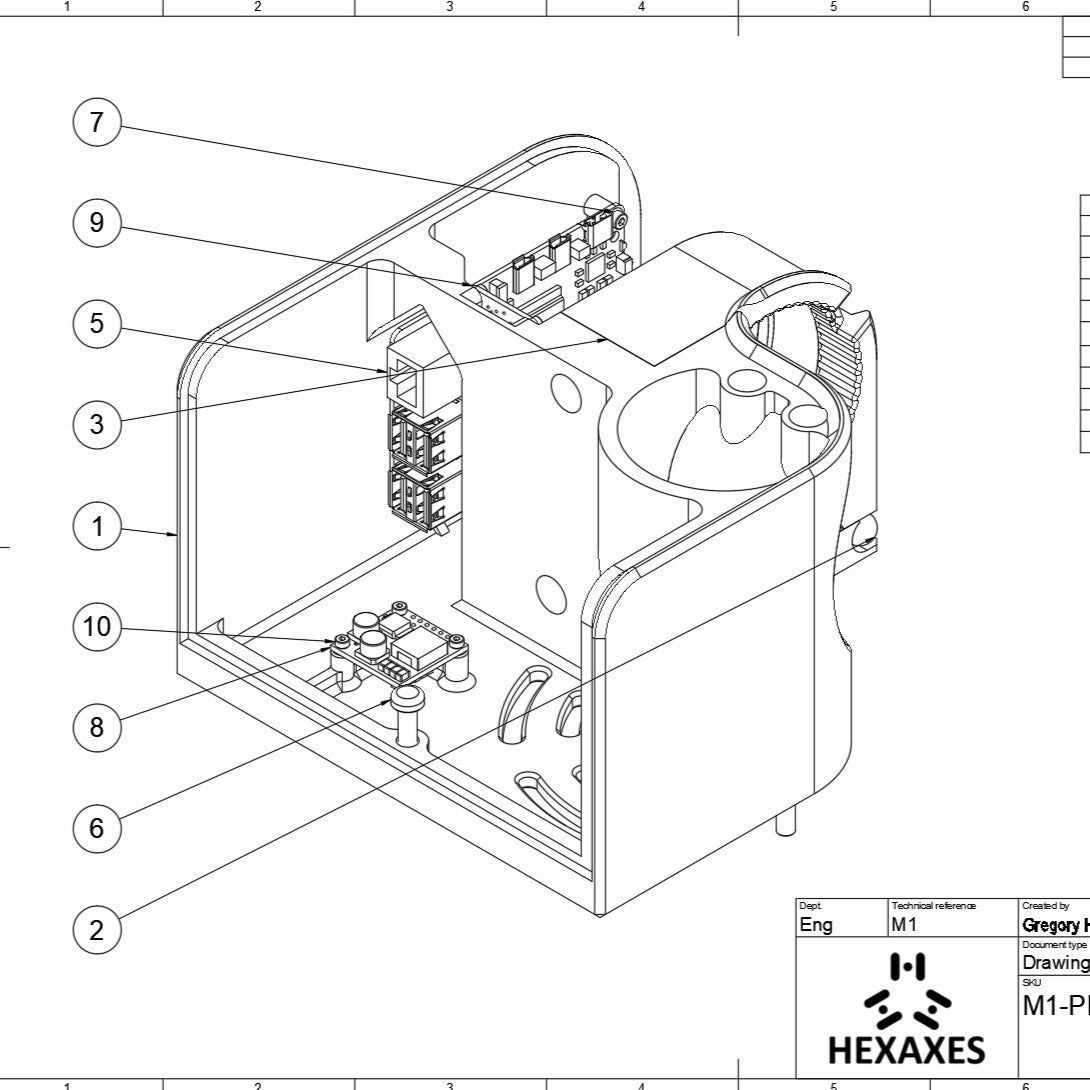

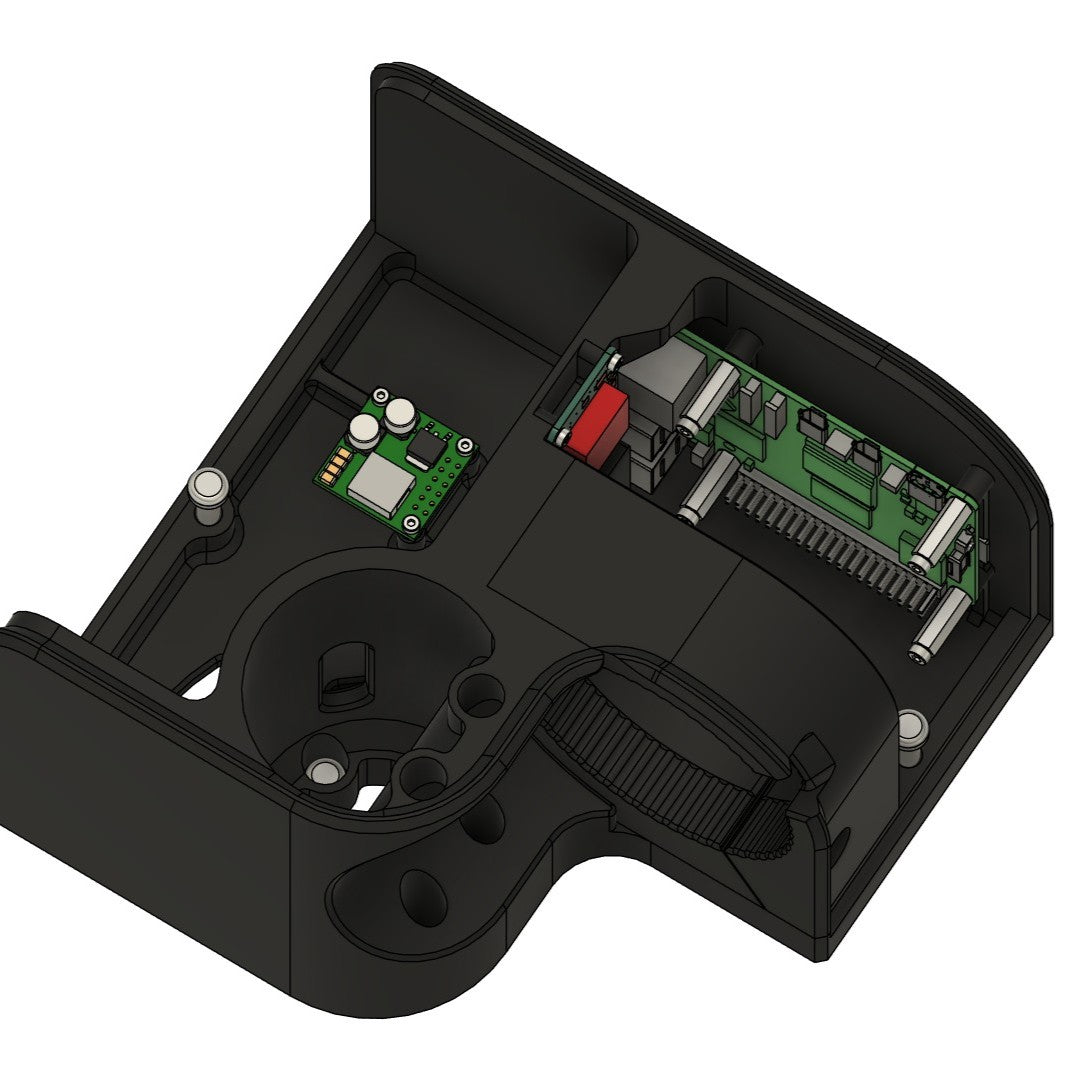

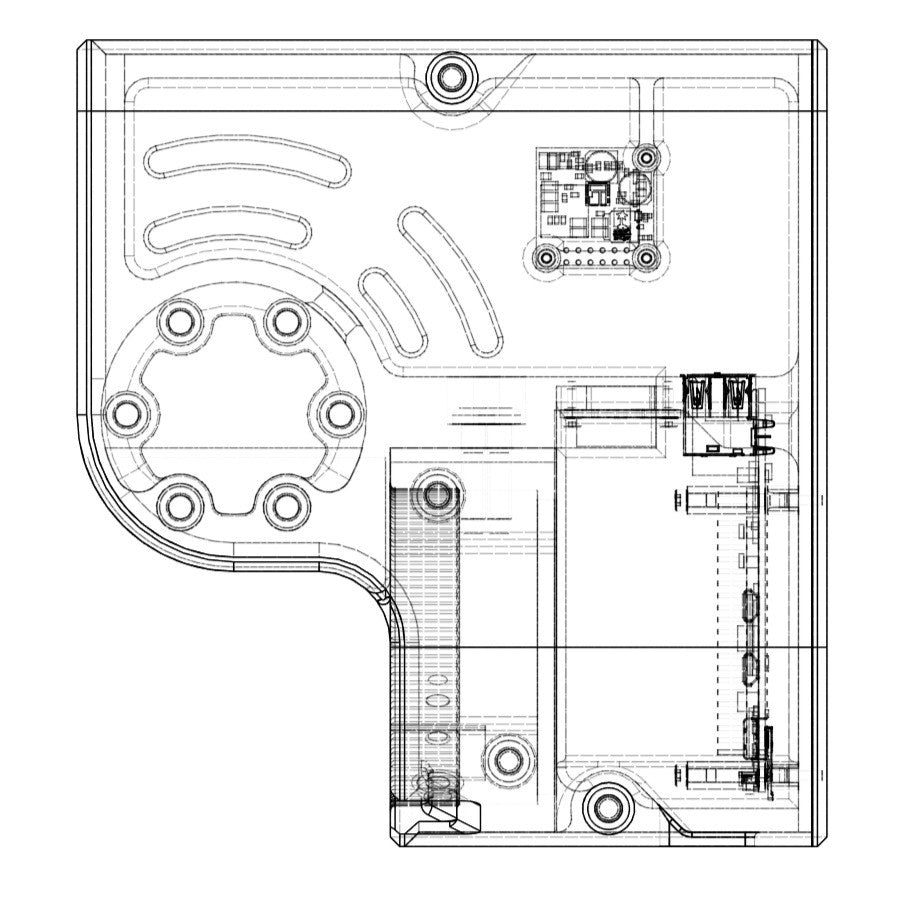

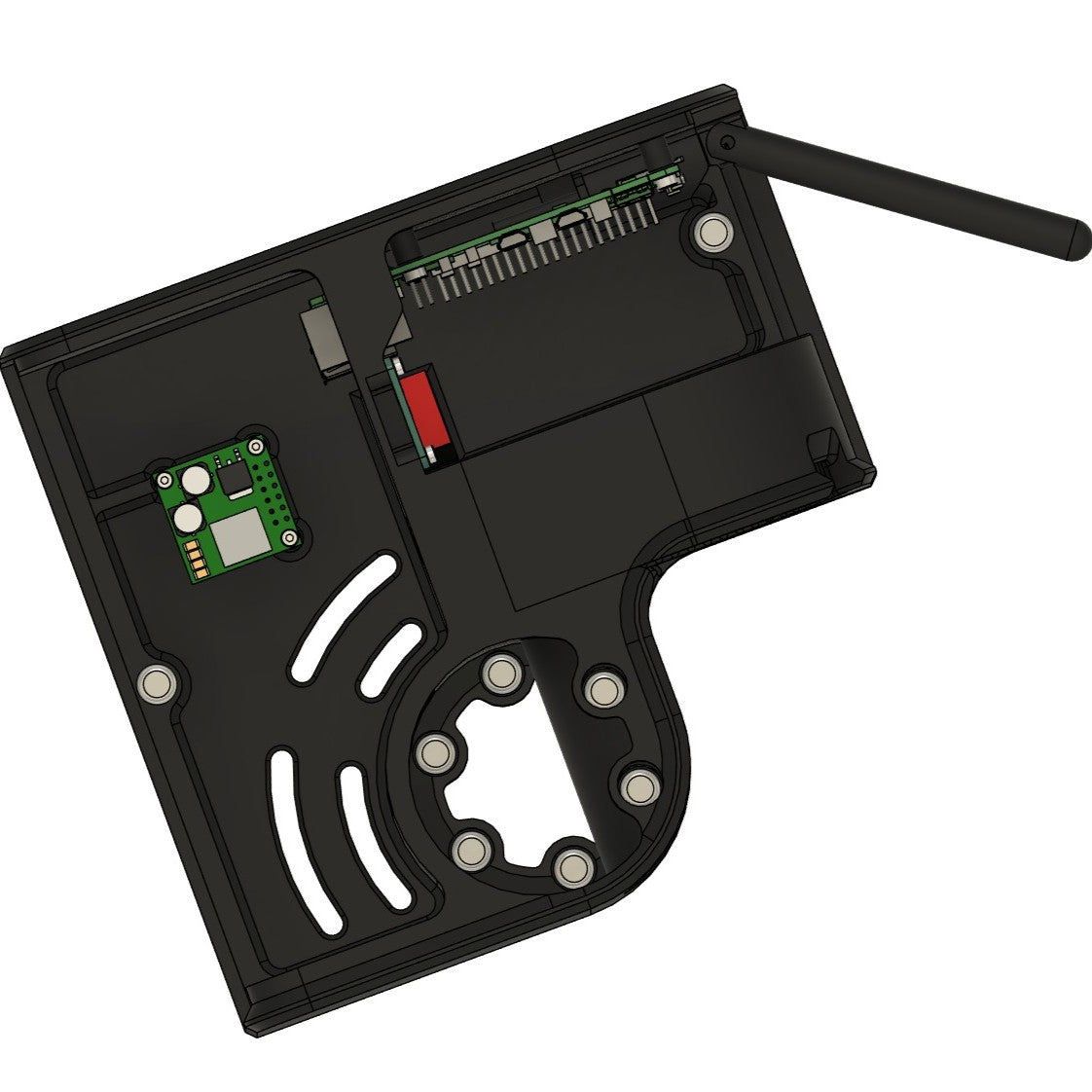

The PineFeat (PF) Lens Controller Astrograph.

The PF Lens Controller Astrograph enables the use of Canon EF & EF-S lenses with the MountOne. The PF Lens Controller INDI Driver manages focus calibration and focus control making the lens autofocus fully functional for this astrograph.

Use the Raspberry Pi 5 Model B or Computer Module 5 with an external Wi-Fi antenna. Imaging happens with the Raspberry Pi HQ Camera, with a spot for an optional GPS.

The PF Assembly Documentation.
