The PET Hardware Kit.

The Hardware Kit for The MountOne Printed Equatorial Tripod (PET).

Considerable time and effort has gone into selecting and testing the components in the PET Hardware Kit.

Each part has been selected for its quality, tested to ensure its durability and packaged together into The PET Hardware Kit for your convenience.

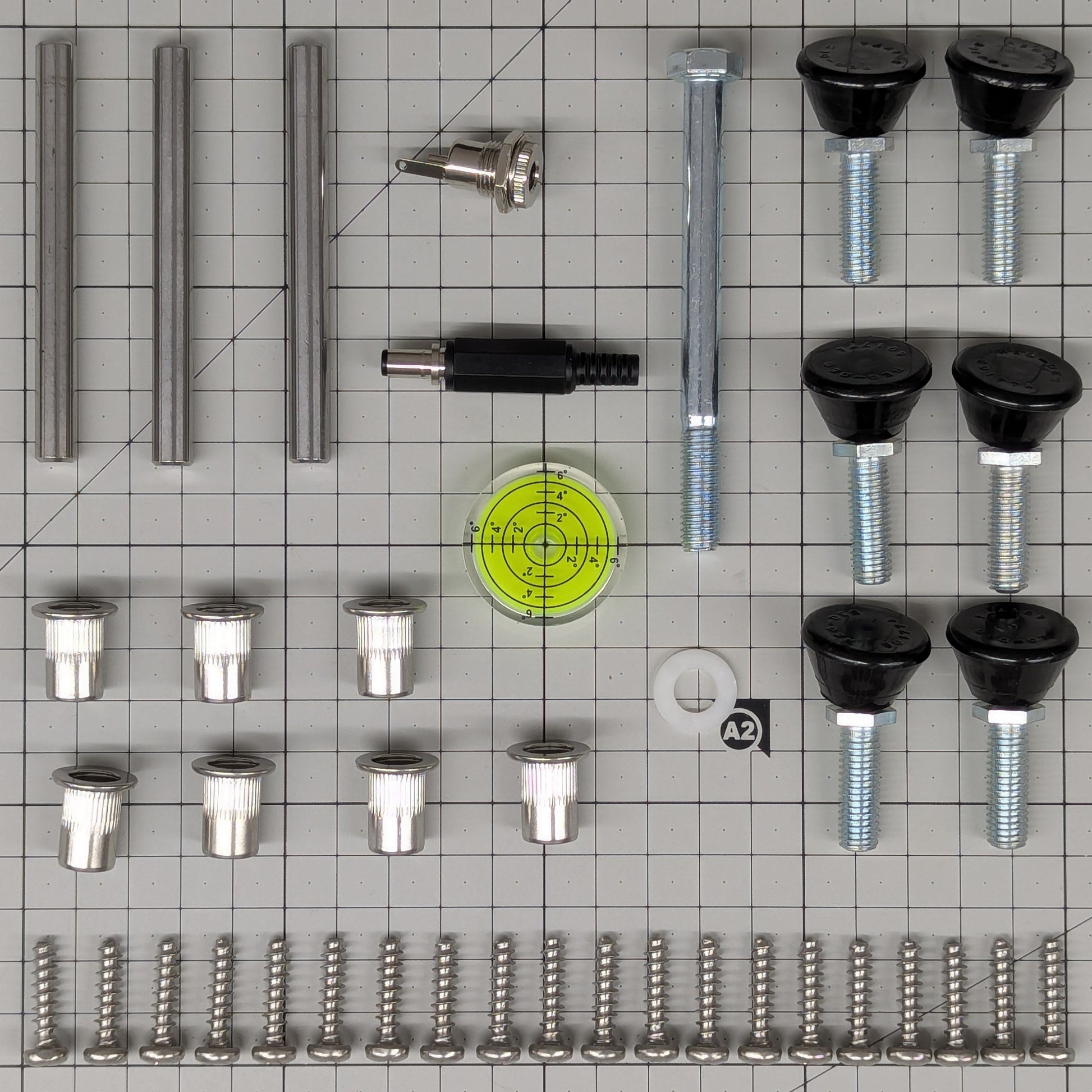

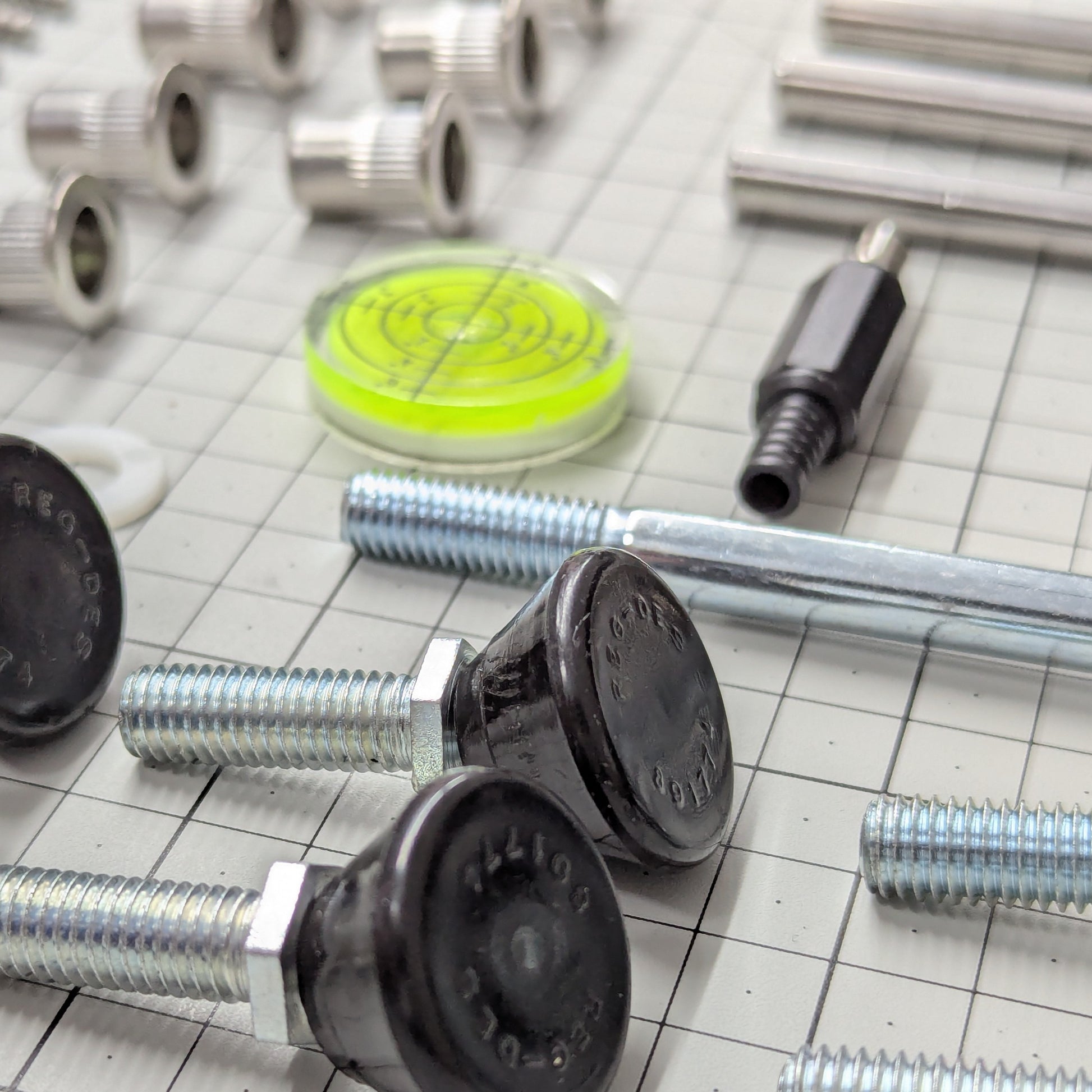

The PET Hardware Kit includes the following parts.

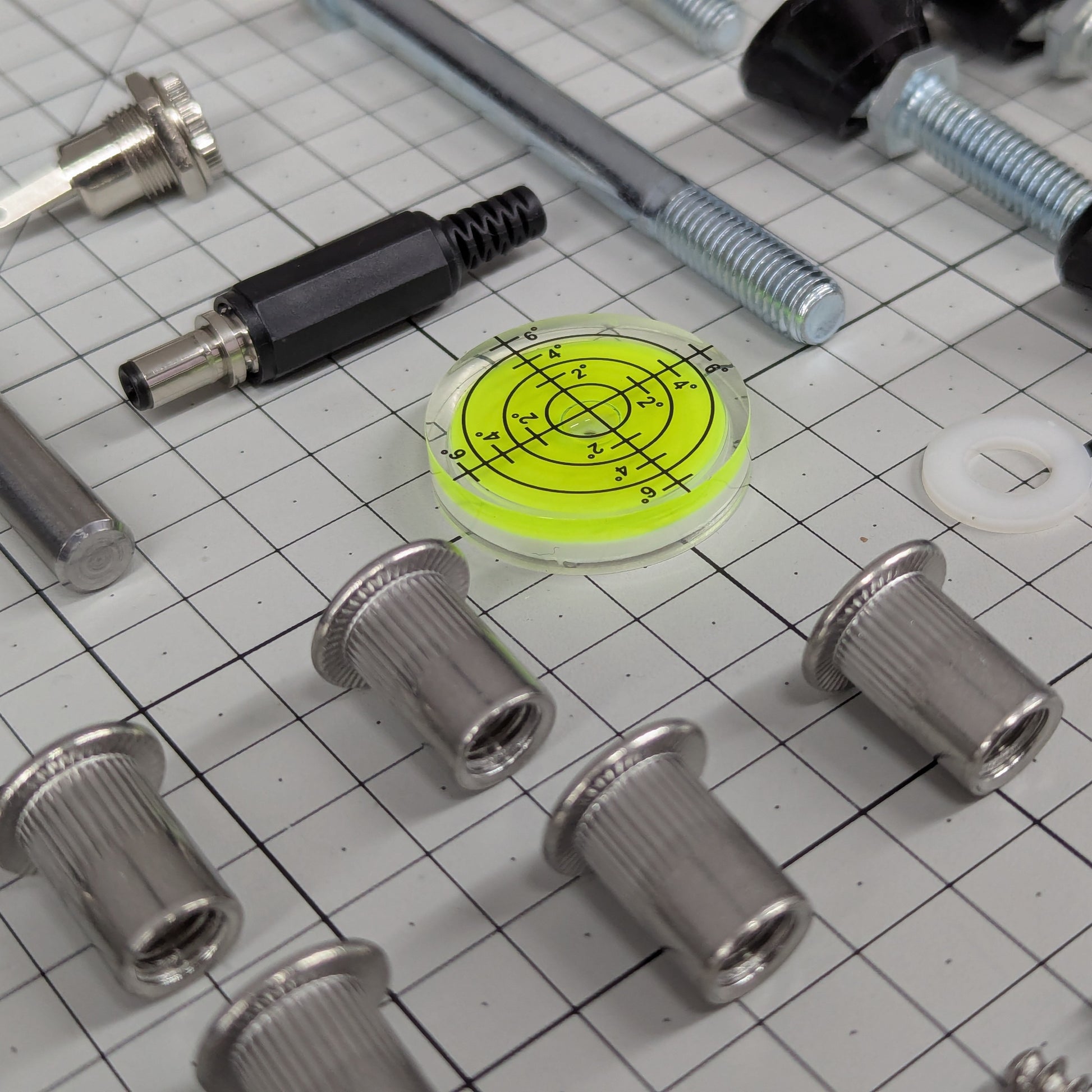

• 1 x 32mm Spirit Level.

• 3 x 80mm Long, 8mm Diameter Bars.

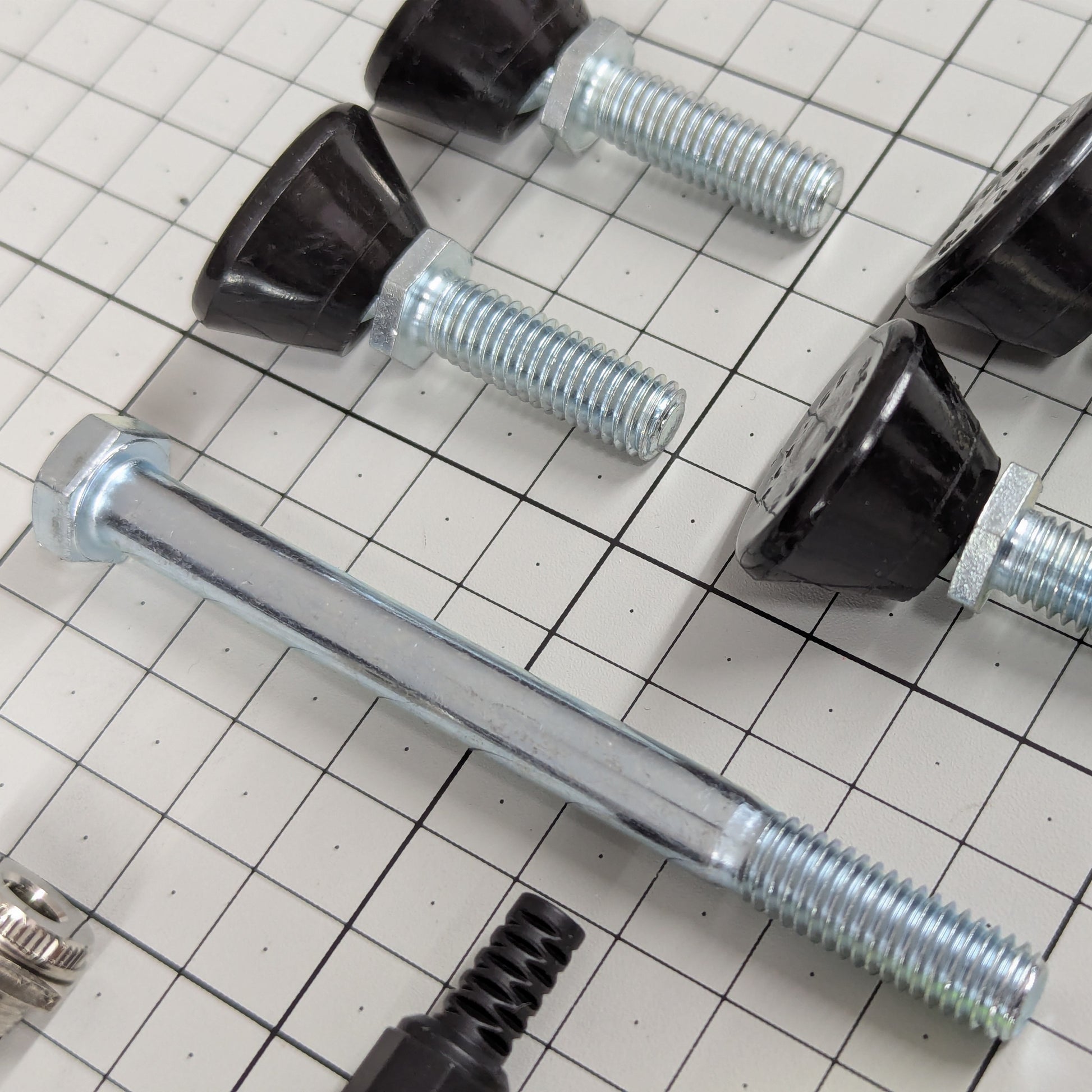

• 1 x M8 90mm Hex Bolt.

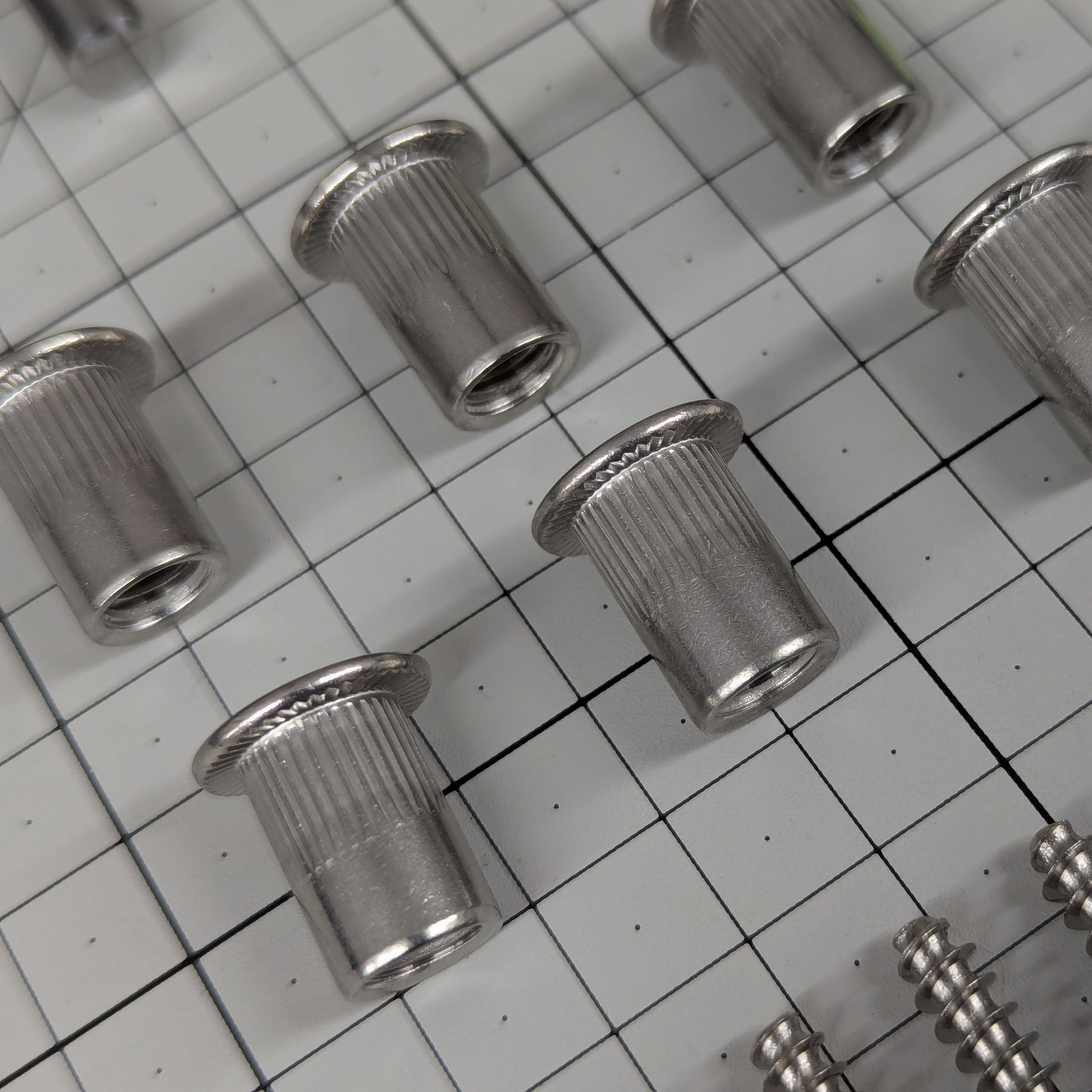

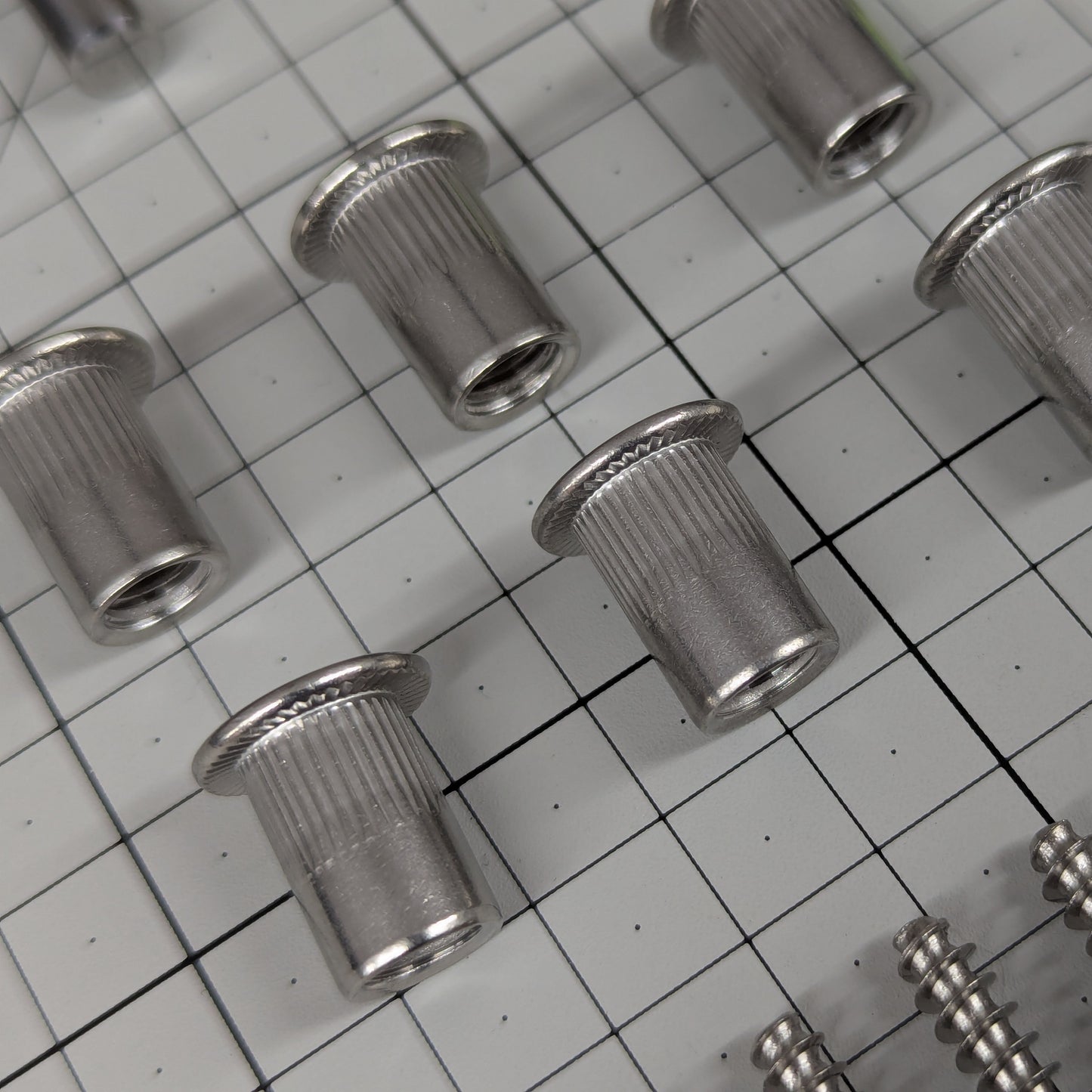

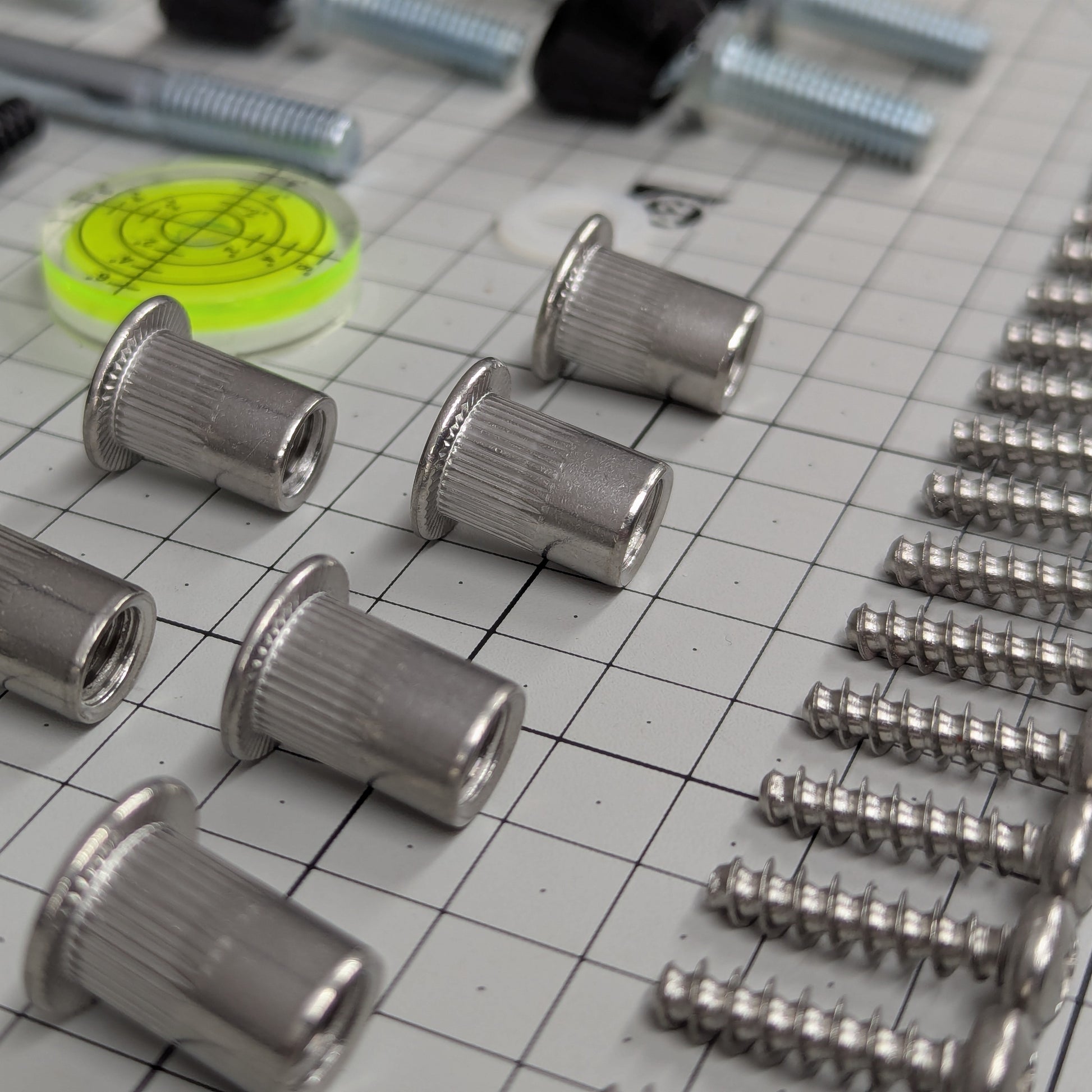

• 7 x M8 Rivnuts.
• 1 x M8 Nylon Washer.

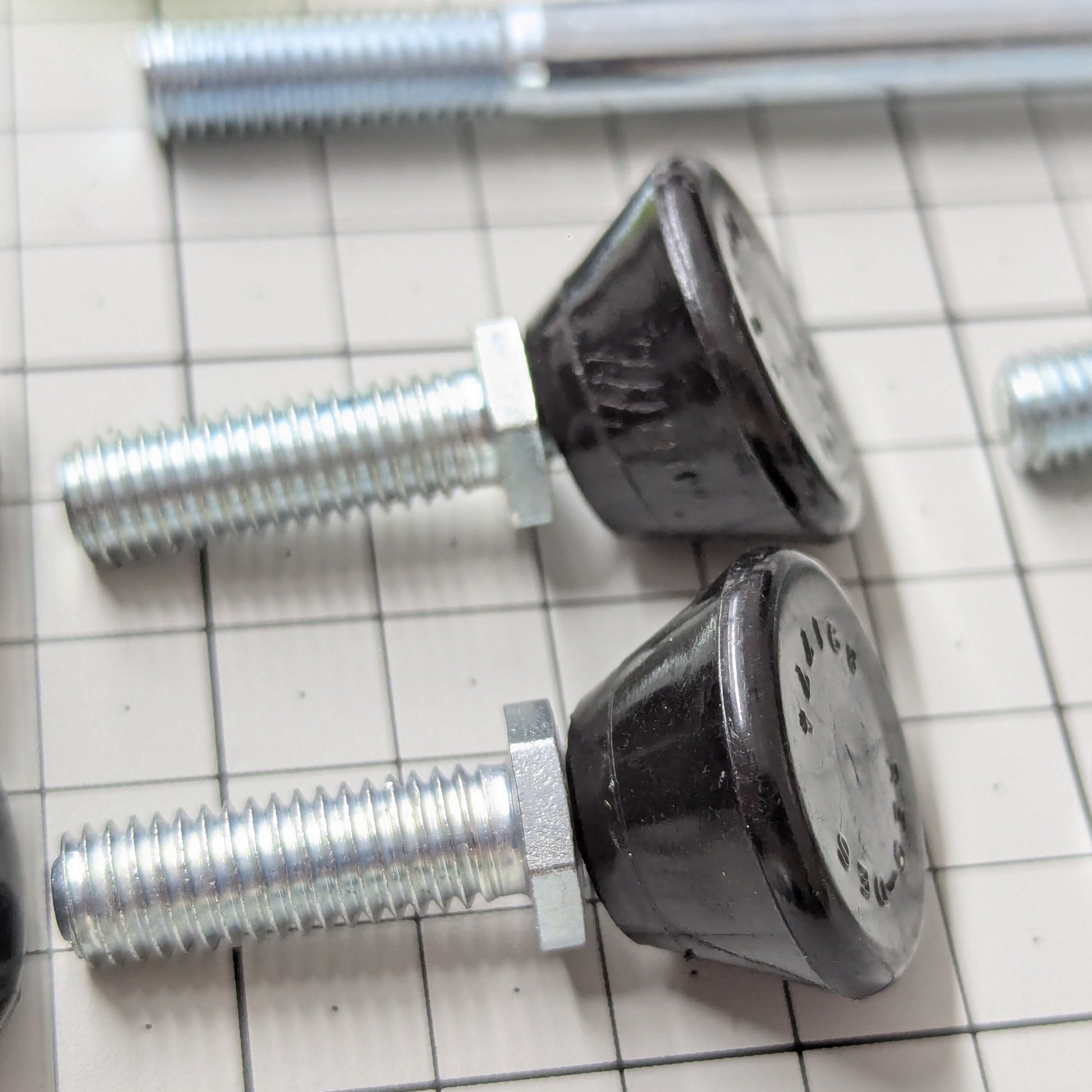

• 6 x M8 Rubber Feet.
• 1 x DC Female Sockets
• 1 x DC Male Plugs.
• 20 x M5 20mm Screws for Plastic.

Included with the PET Hardware Kits are the following downloads.

• The PET CAD Pack.
  • STEP Files, including the Main Assembly.
  • STL Files, full sets with all calibration sizes.
  • F3Z Fusion Files, the fully-editable Master Assembly.
  • PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
  • 3MF Files, for Bambu Lab P2S & A1 Mini.


Click here for full details on The PET CAD Pack.

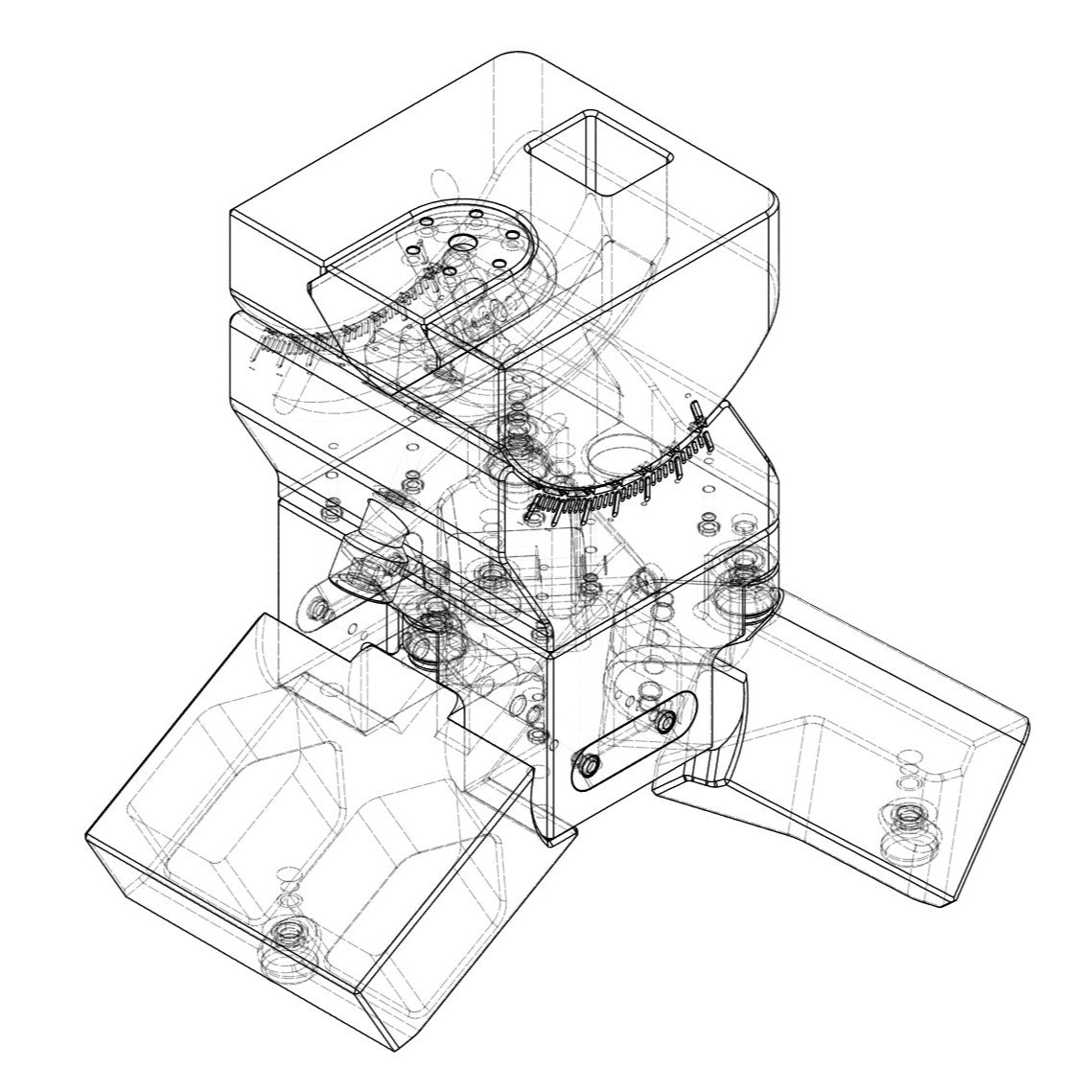

The MountOne Printed Equatorial Tripod (PET).

The PET features adjustable legs, an integrated spirit level, and polar alignment for latitudes between 30-90°.

Adjusters at the top of the legs level the tripod, referencing a spirit level in the base. The upper section of the PET can be tilted back 60° and locked in place using a securing clamp.

The MountOne is powered via cables running through the PET. A standard DC Jack resides at the back of the PET, between the left & right legs, feeding 24V power into the MountOne.

The PET Can be folded back up at the end of your session, or leave the MountOne attached and move it as a single unit.

The PET Assembly Documentation.
