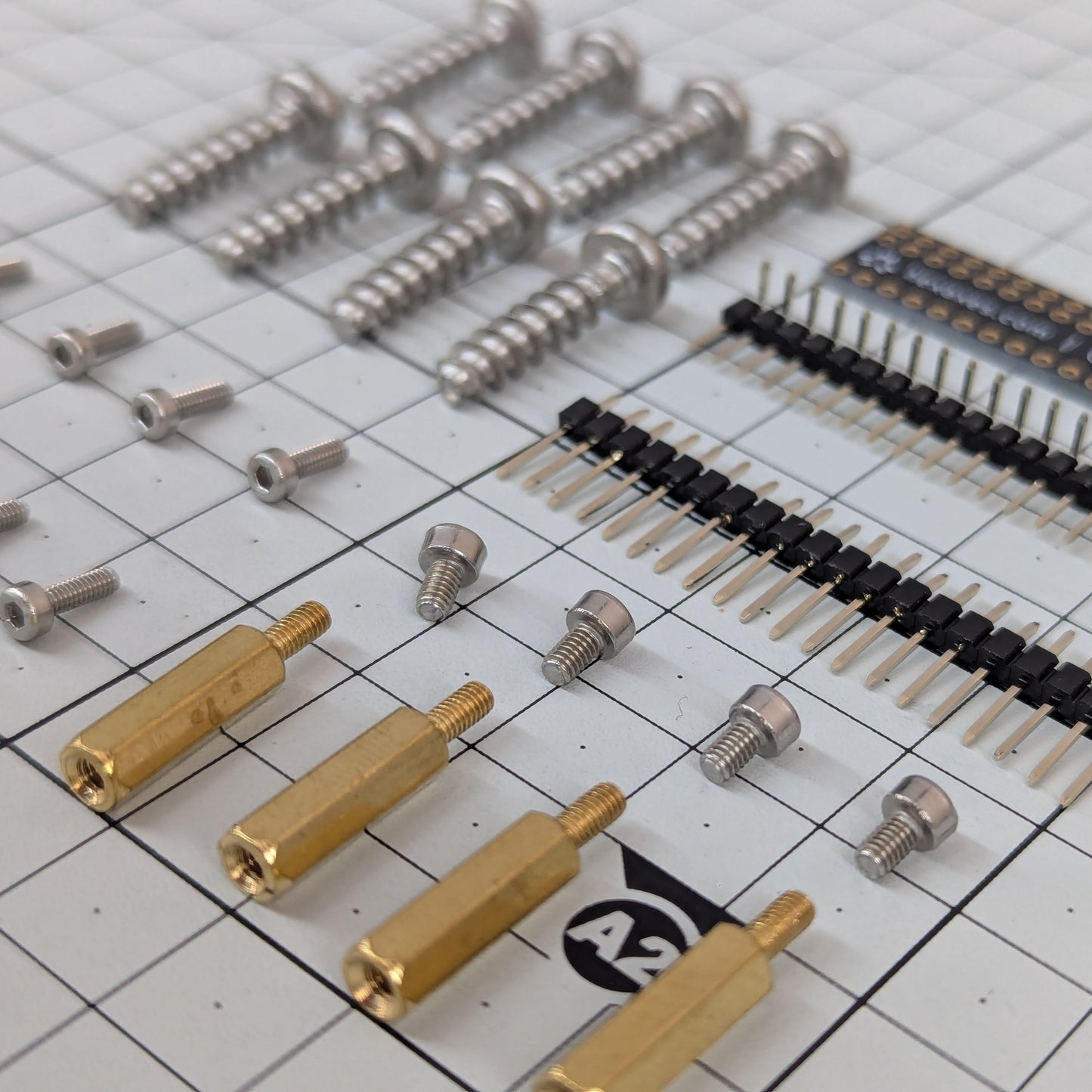

The DSLR Hardware Kit.

The Hardware Kit for The MountOne DSLR Astrograph.

Considerable time and effort has gone into selecting and testing the components in the DSLR Hardware Kit.

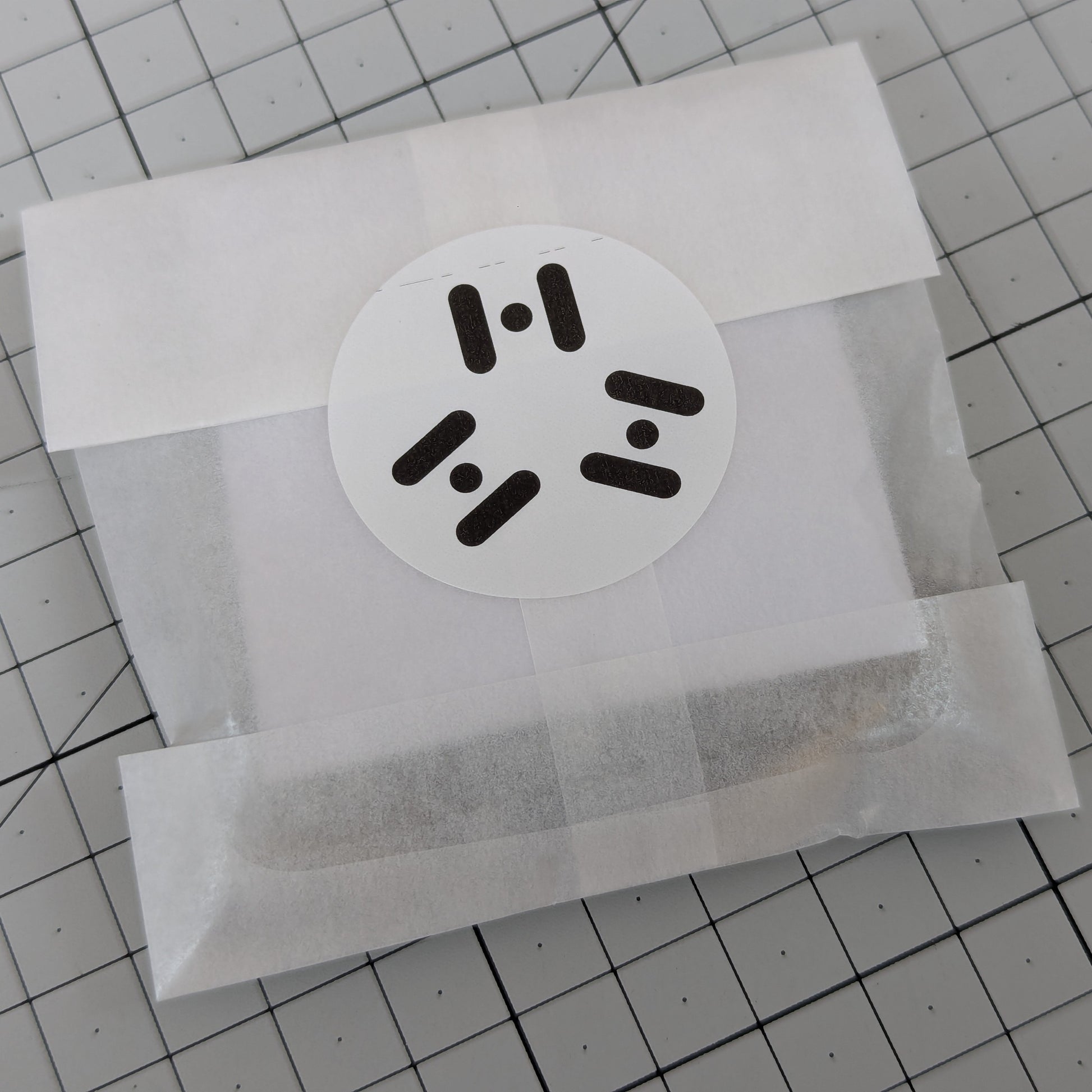

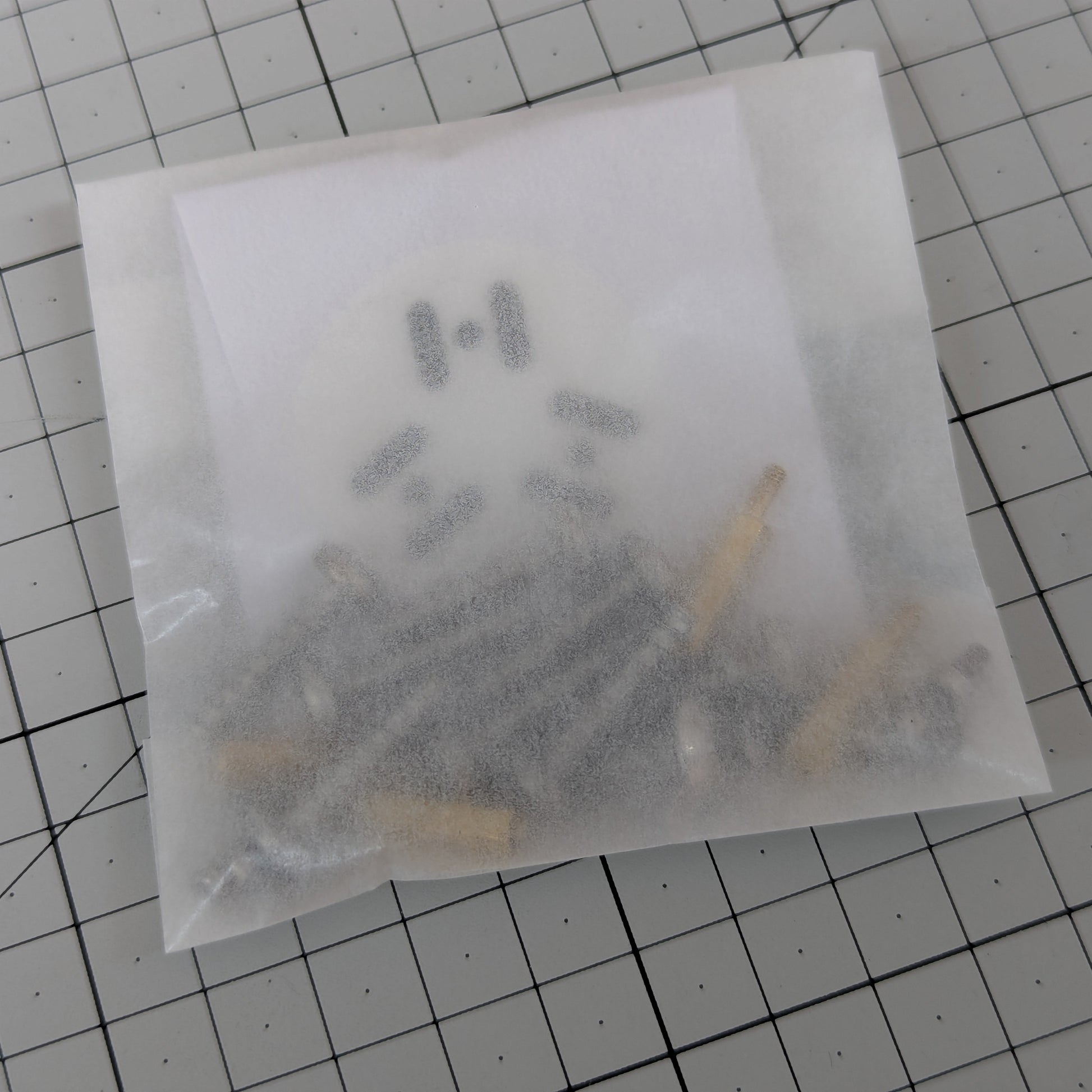

Each part has been selected for its quality, tested to ensure its durability and packaged together into The DSLR Hardware Kit for your convenience.

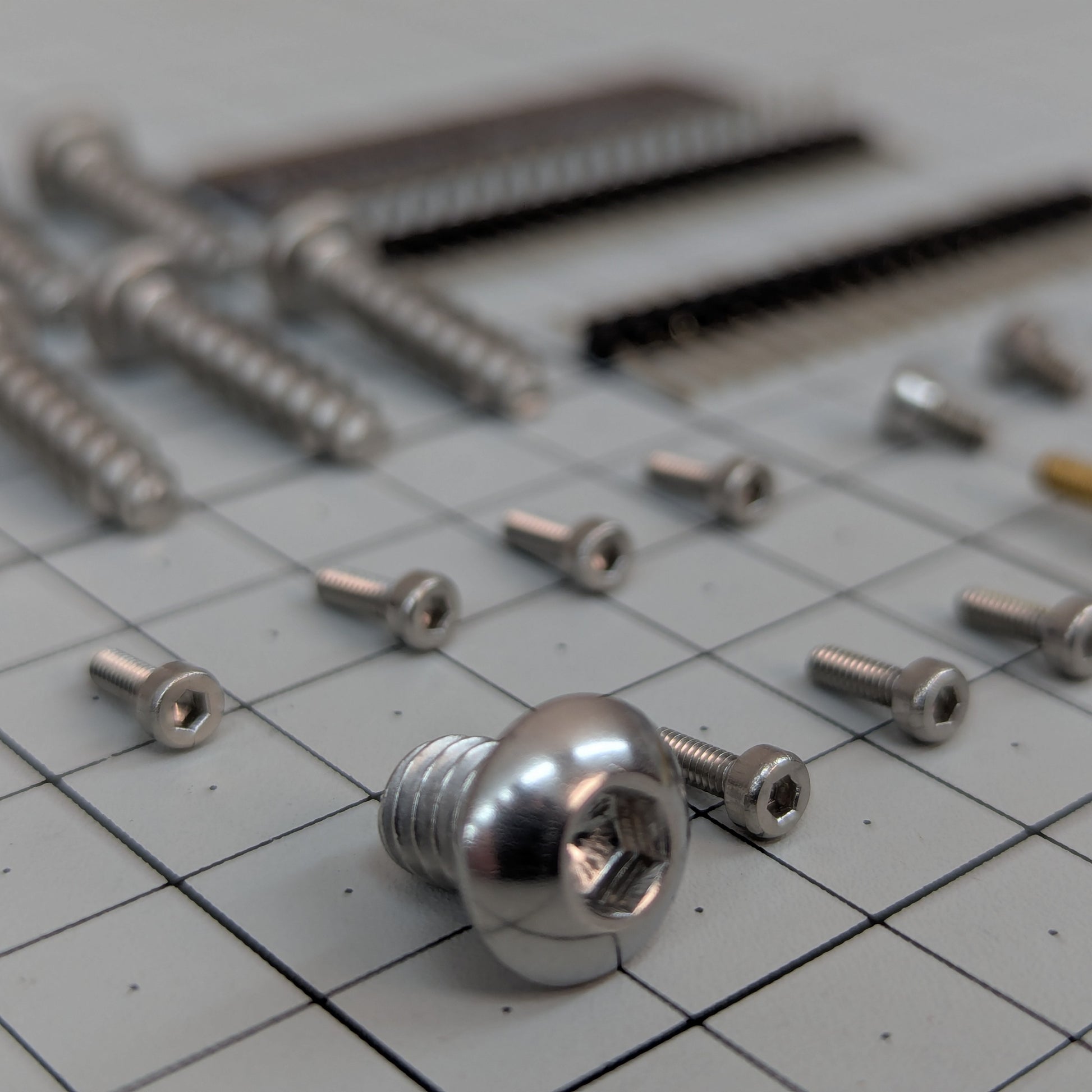

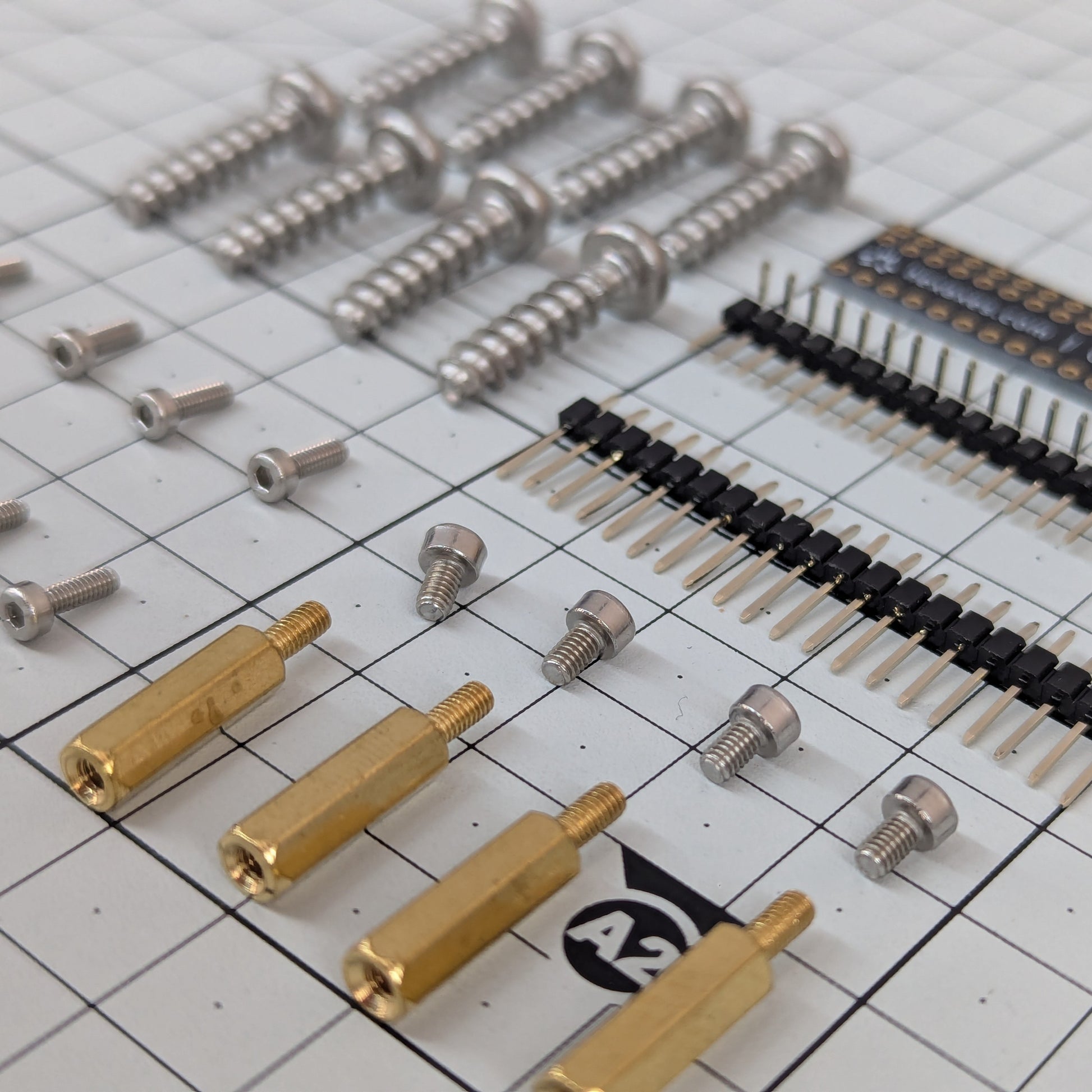

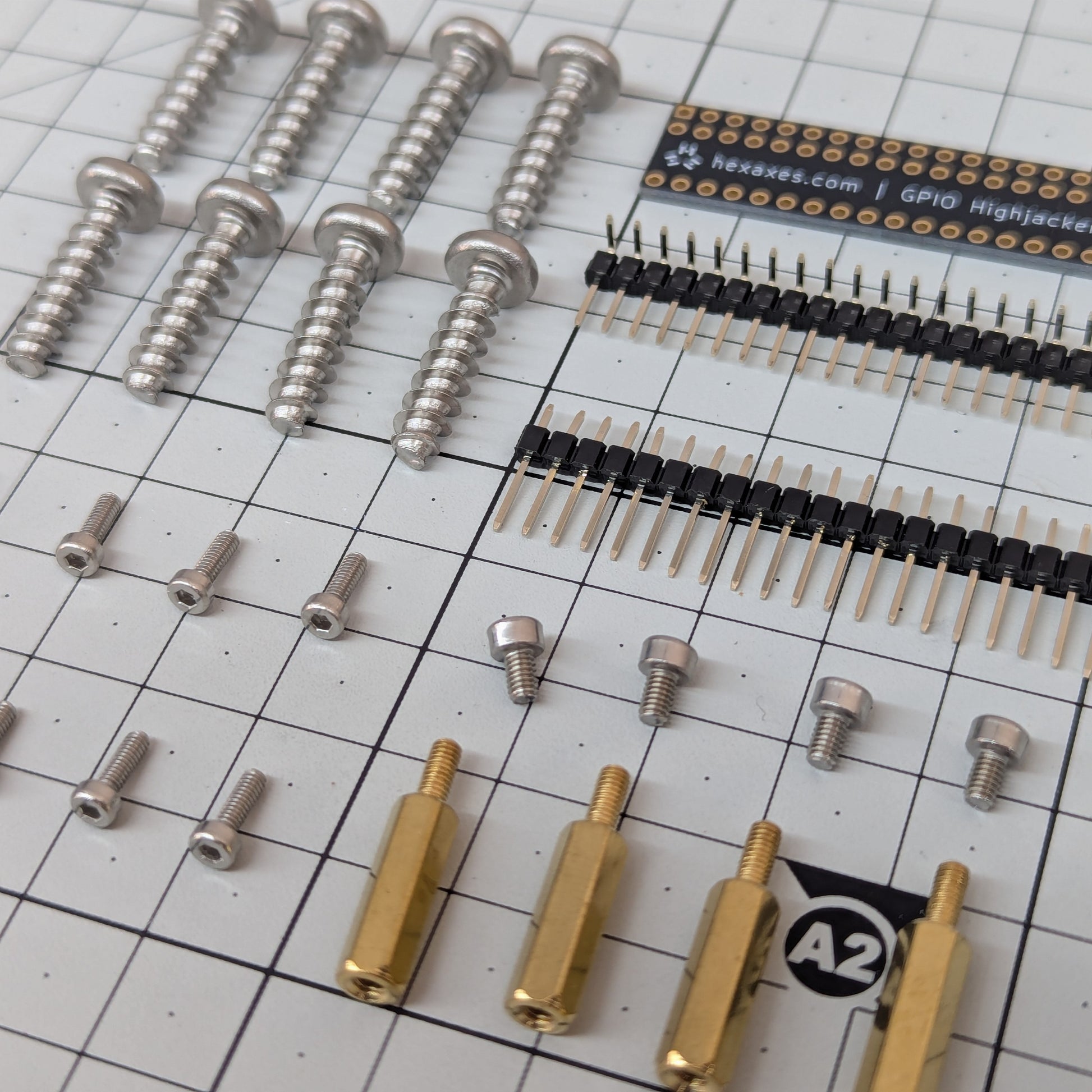

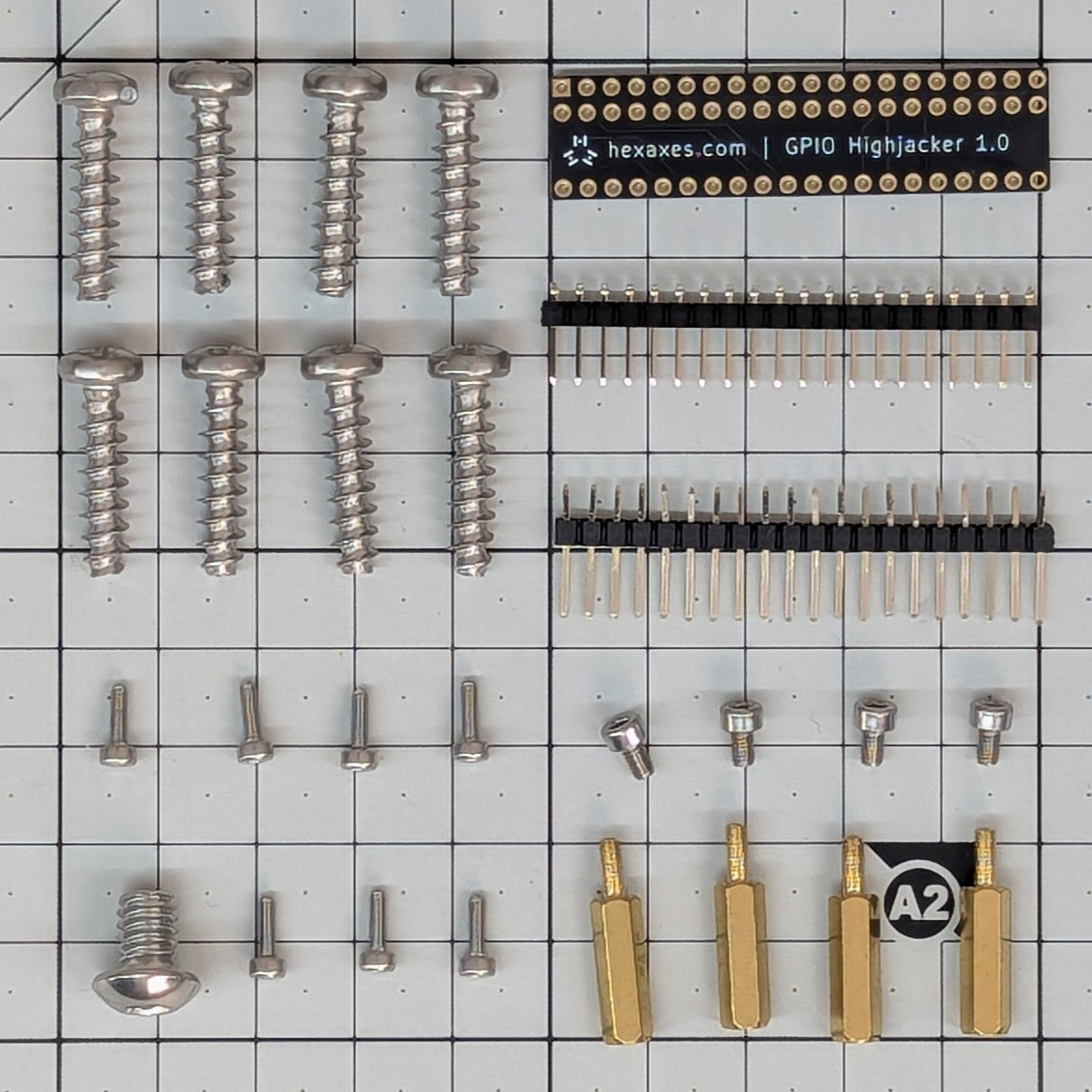

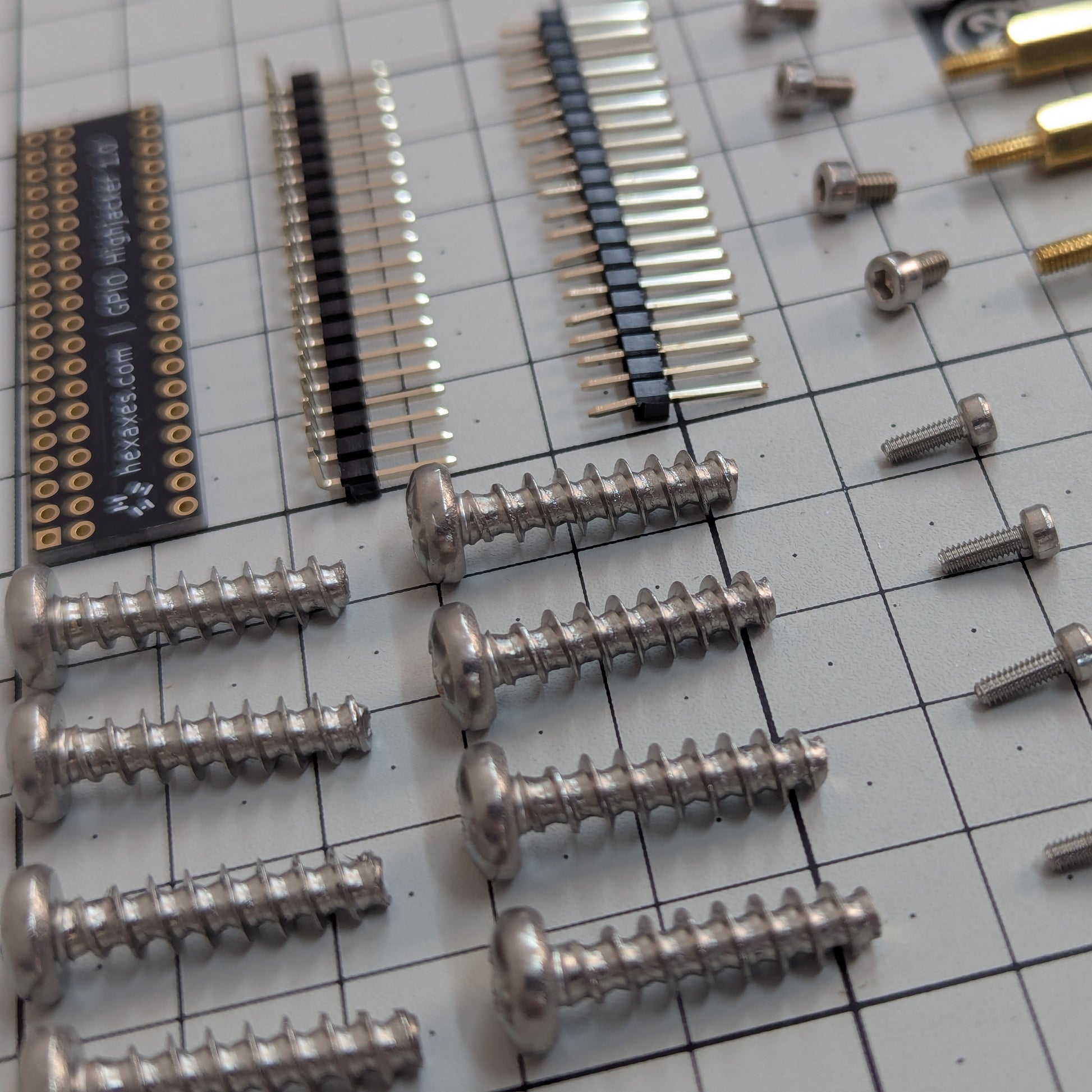

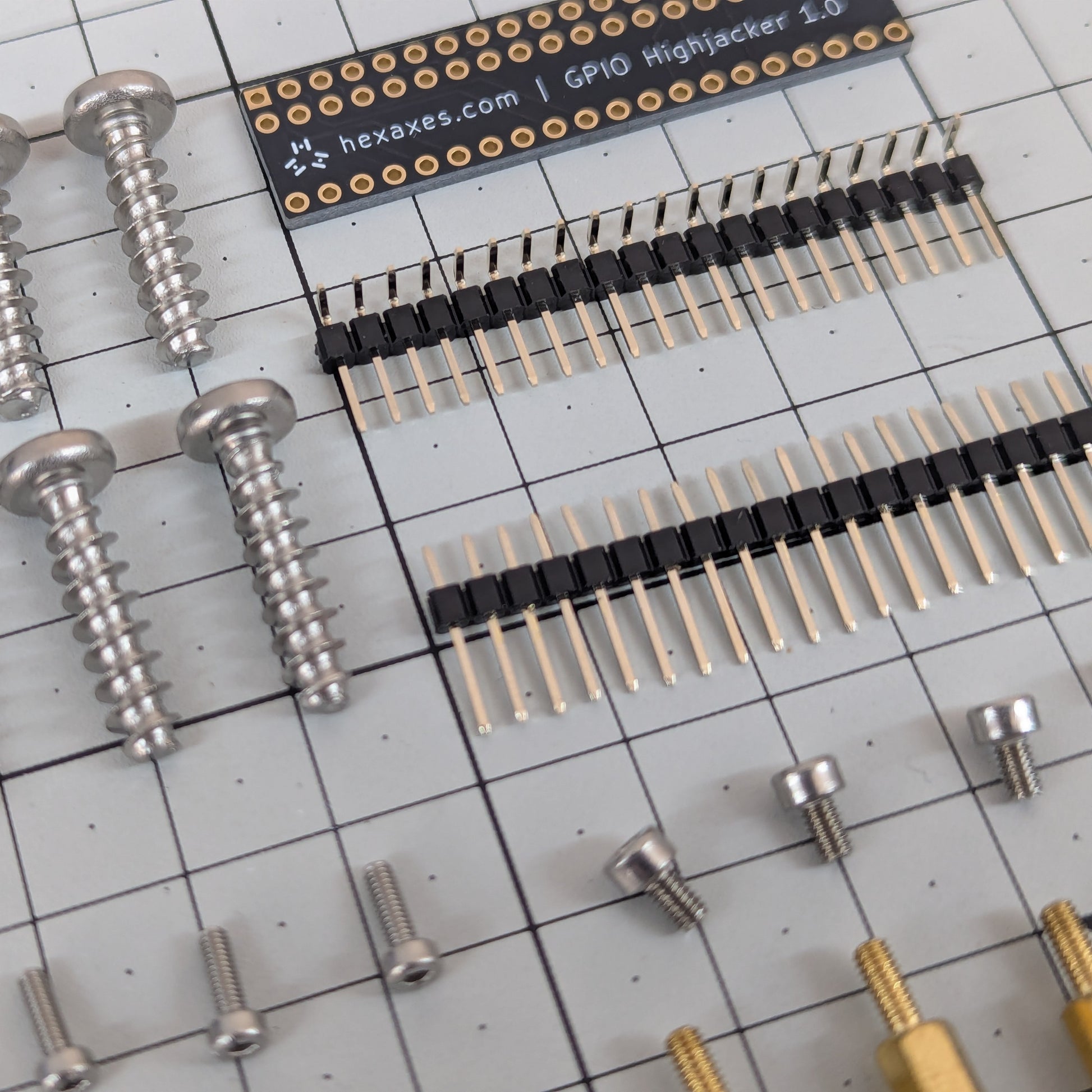

The DSLR Hardware Kit includes the following parts.

• 1 x GPIO Highjacker.
• 8 x M5 20mm Screws for Plastic.

• 4 x M2.5 15mm Standoffs.
• 4 x M2.5 4mm Socket Cap Screws.
• 7 x M2 6mm Socket Cap Screws.
• 1 x 1/4-20 3/8 UNC Bolt.

Included with the DSLR Hardware Kits are the following downloads.

• The DSLR CAD Pack.
  • STEP Files, including the Main Assembly.
  • STL Files, full sets with all calibration sizes.
  • F3Z Fusion Files, the fully-editable Master Assembly.
  • PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
  • 3MF Files, for Bambu Lab P2S & A1 Mini.


Click here for full details on the DSLR CAD Pack.

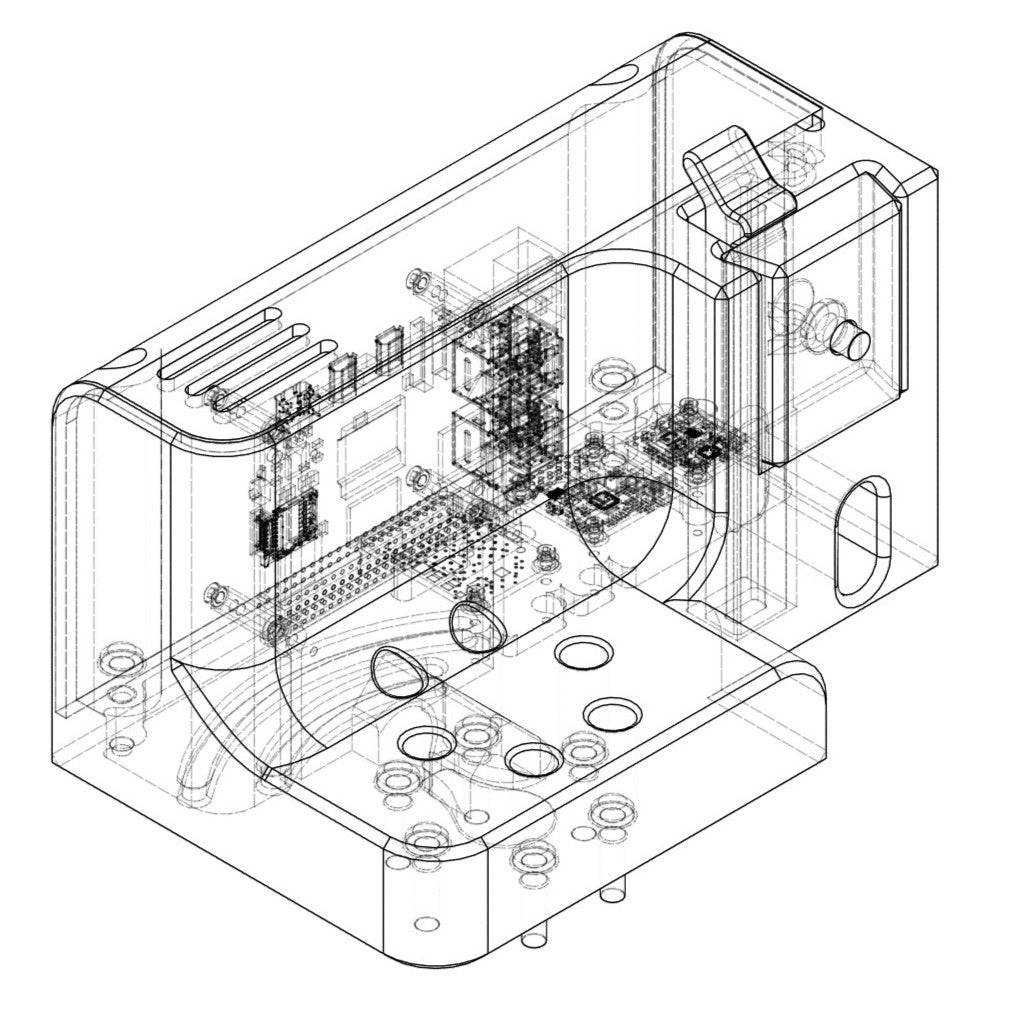

The MountOne DSLR Astrograph.

The MountOne DSLR Astrograph is probably the easiest of the four astrographs to build. All imaging, including focus, is handled by the DSLR via the gPhoto INDI driver.

The DSLR Astrograph  requires only a Raspberry Pi 5 & Accessories, a 5v power module, and a 7.5v power module for the camera, with the option of adding a GPS module should one feel the need. You'll need  to source a DSLR & Lens.
