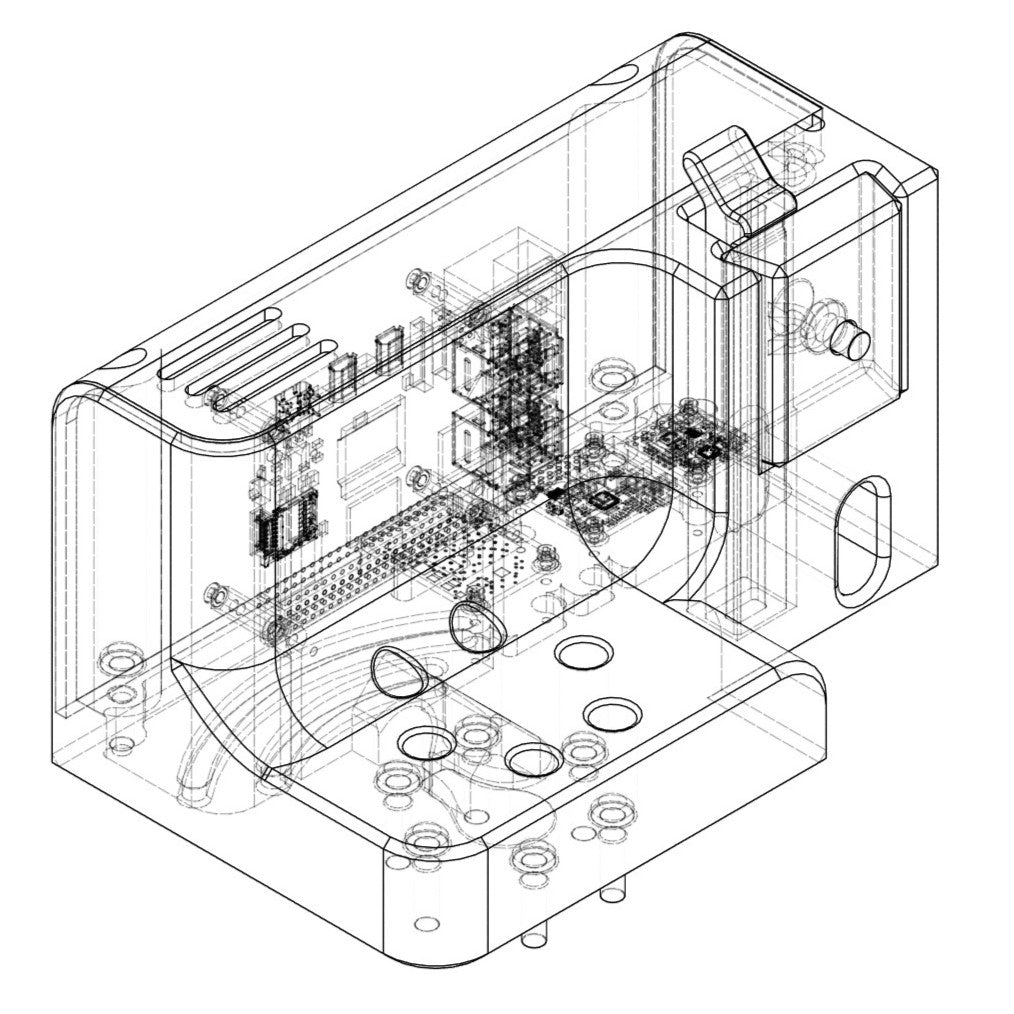

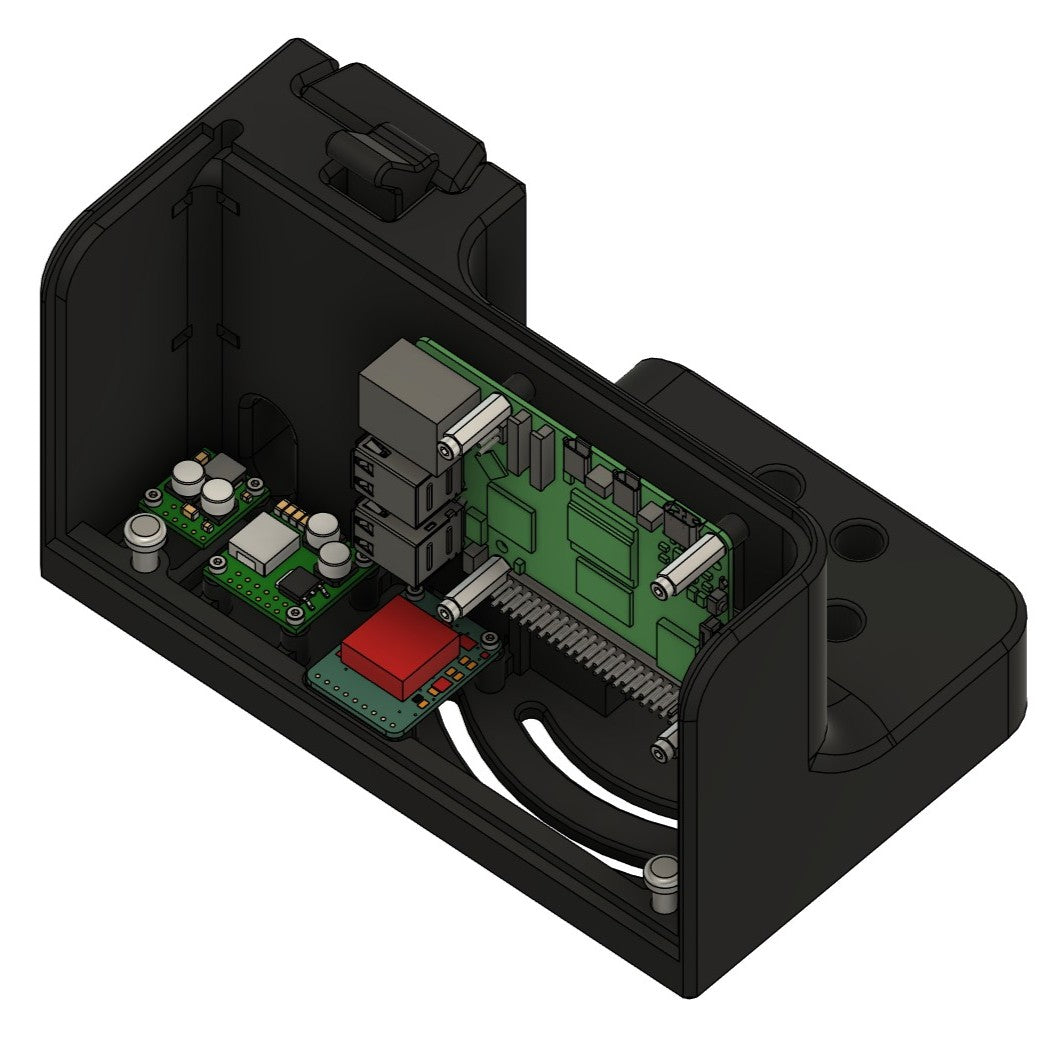

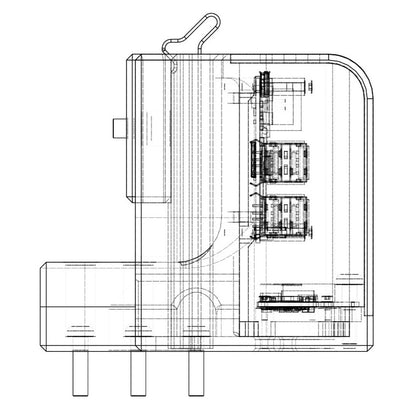

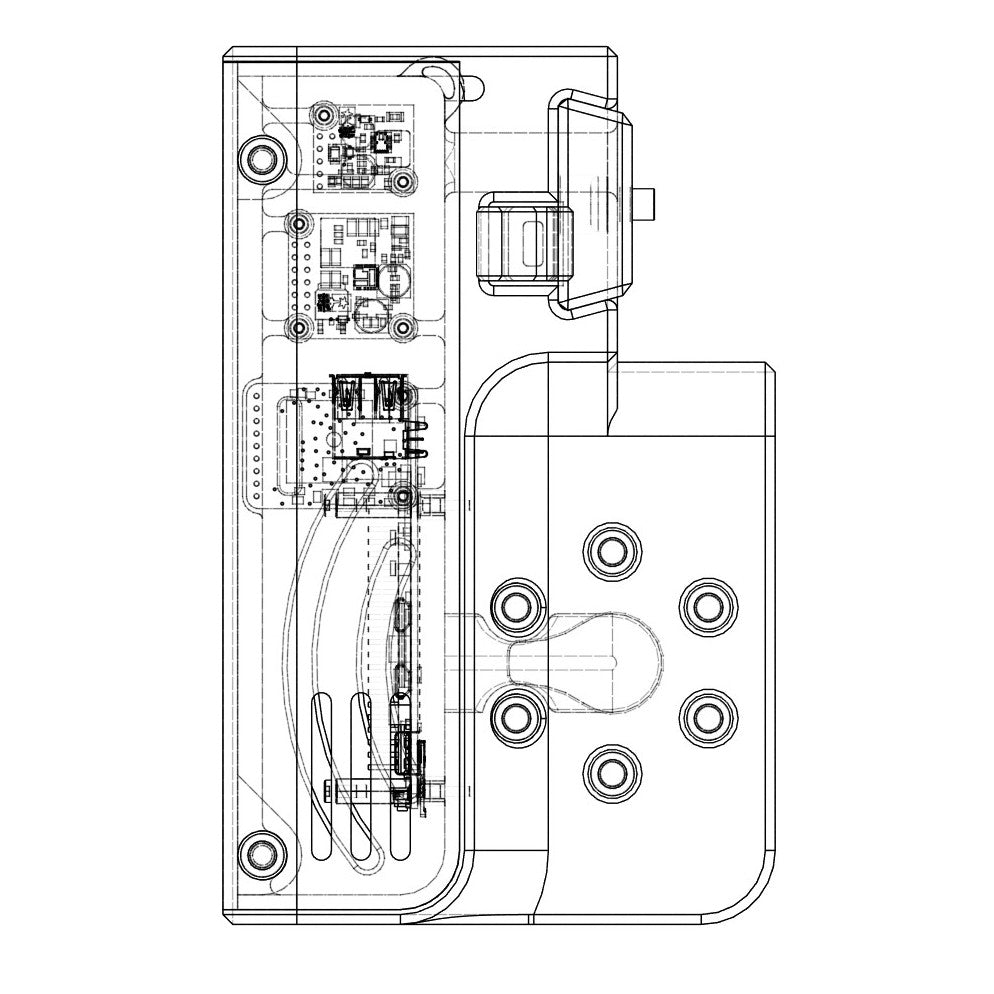

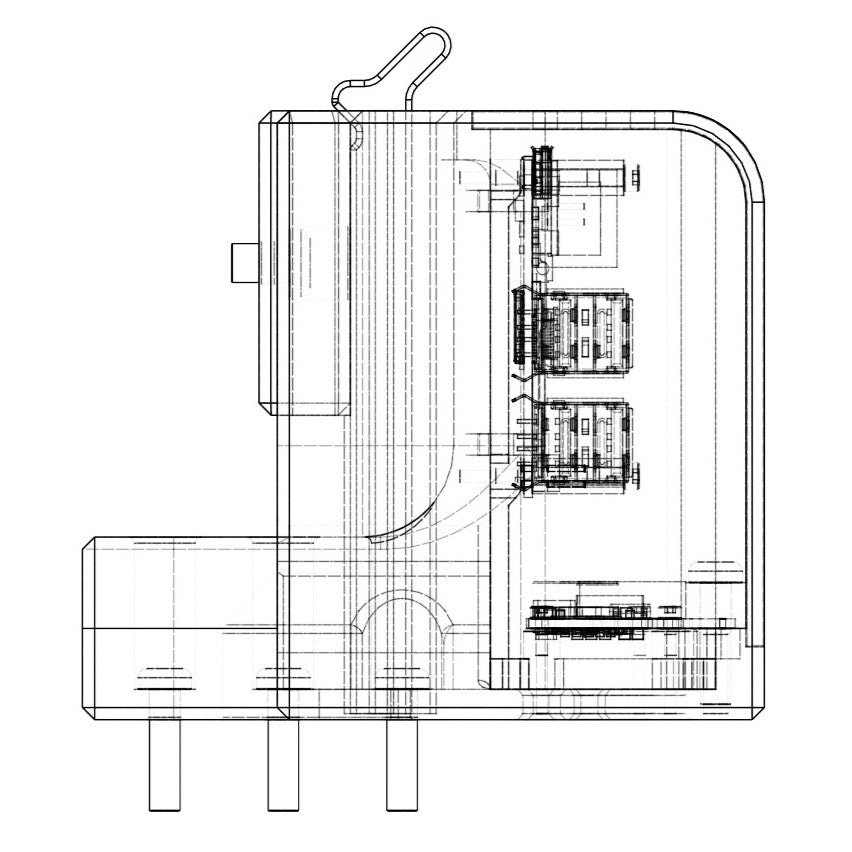

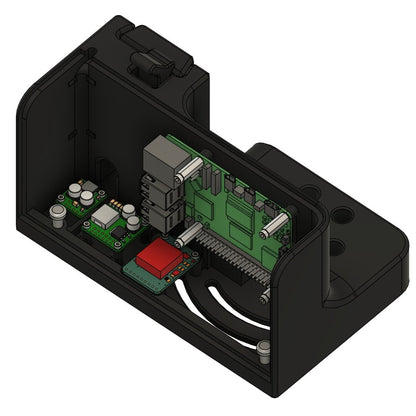

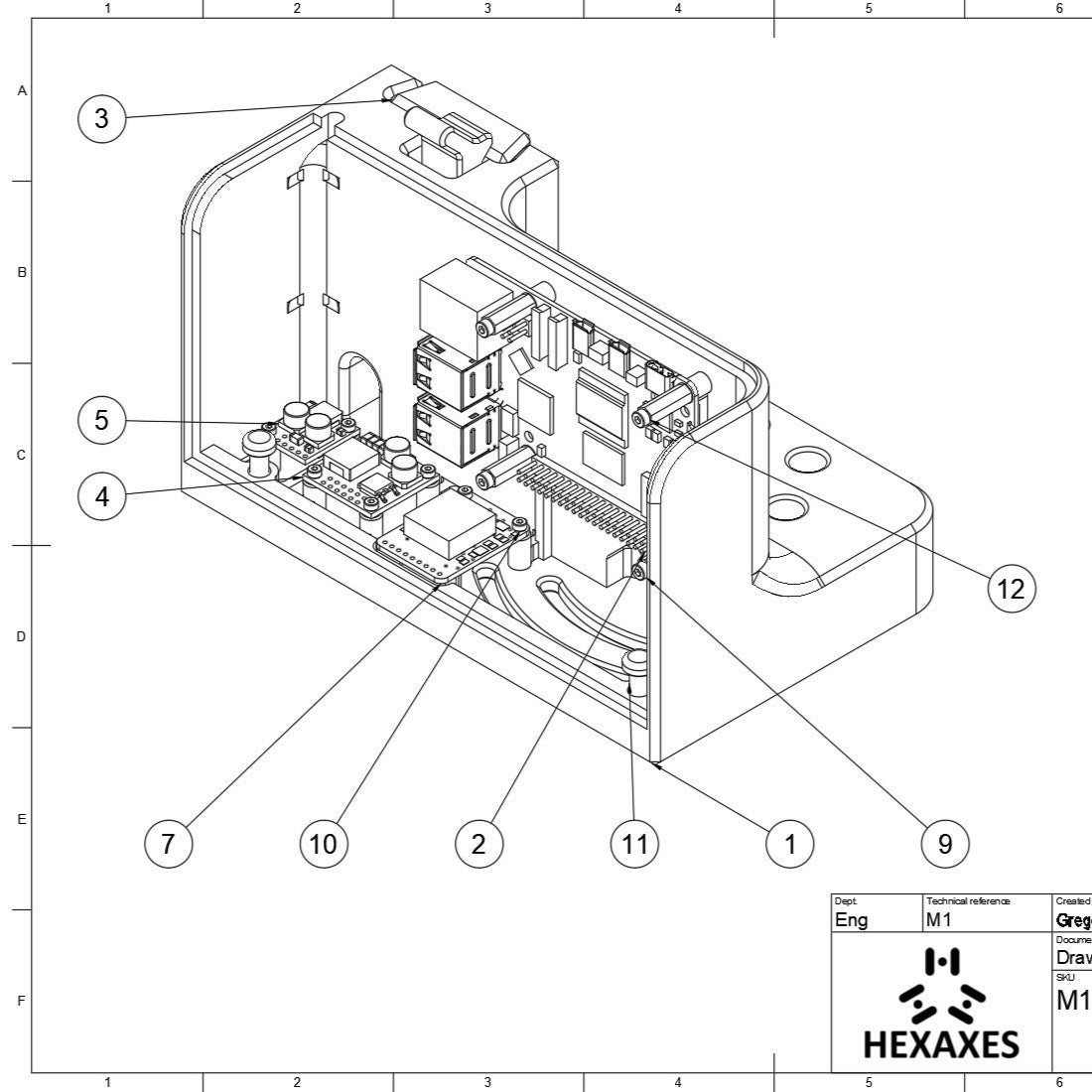

The DSLR CAD Pack.

The DSLR CAD Pack contains all digital resources for the MountOne DSLR Astrograph.

Contained in The DSLR CAD Pack are

• STEP Files, including the Main Assembly.
• STL Files, full sets with all calibration sizes.
• F3Z Fusion Files, the fully-editable Master Assembly.

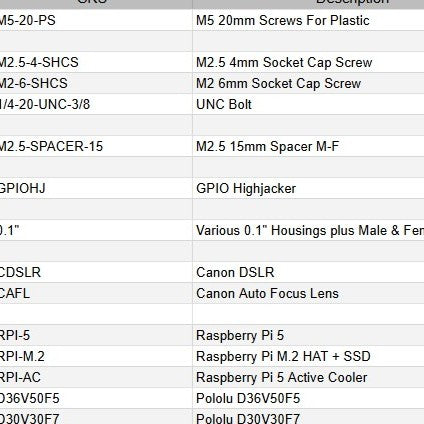

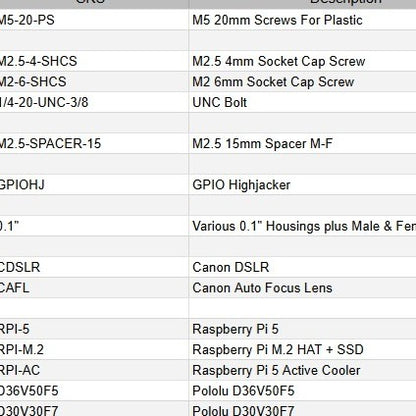

• PDF Files, Bill-Of-Materials with Fixings & Printed Parts.

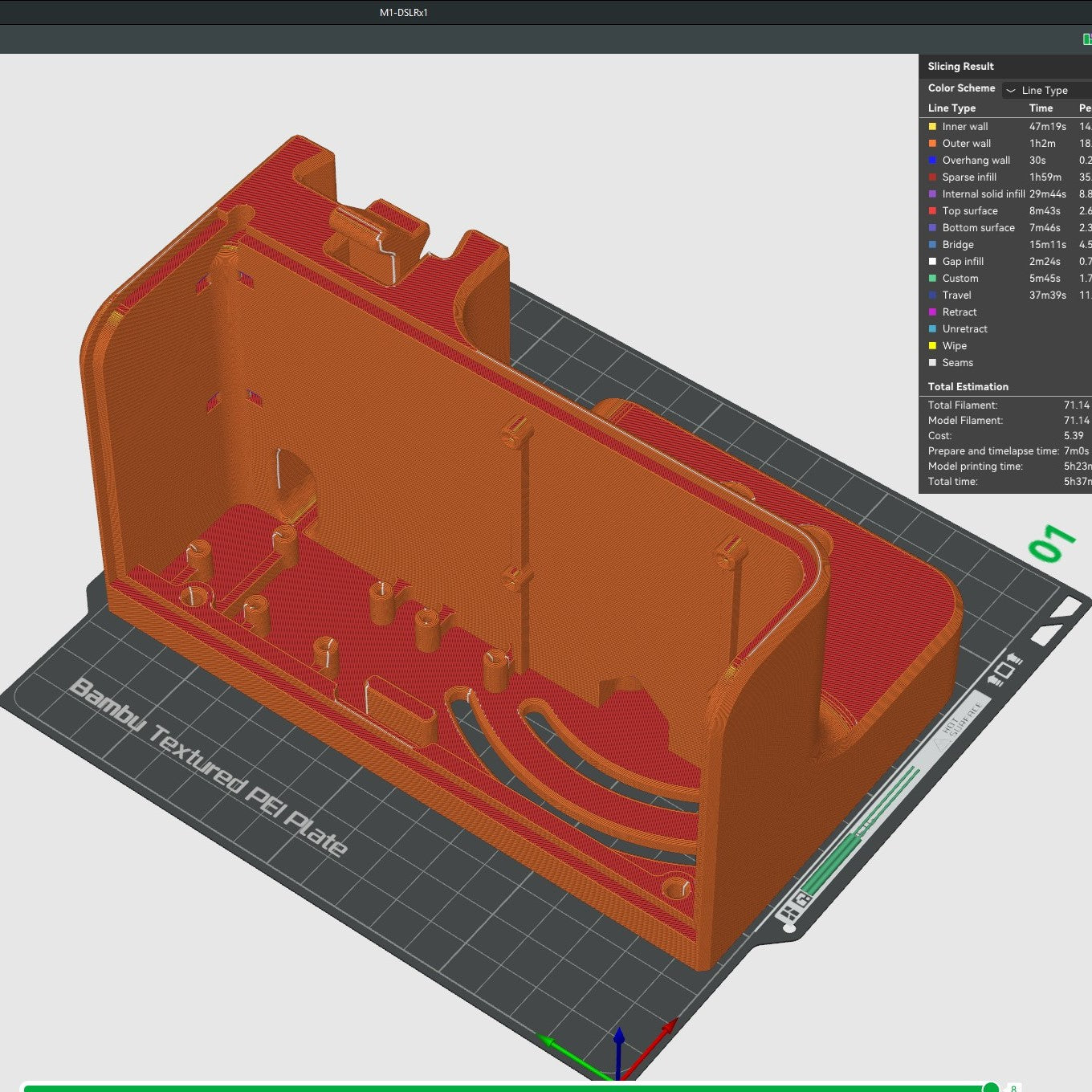

• 3MF Files, for Bambu Lab P2S & A1 Mini.

A direct-download link will be emailed to you after check-out.

The DSLR CAD Pack is included with all purchases of The DSLR Hardware Kit.

The MountOne DSLR Astrograph.

The MountOne DSLR Astrograph is probably the easiest of the four astrographs to build. All imaging, including focus, is handled by the DSLR via the gPhoto INDI driver.

The DSLR Astrograph  requires only a Raspberry Pi 5 & Accessories, a 5v power module, and a 7.5v power module for the camera, with the option of adding a GPS module should one feel the need. You'll need  to source a DSLR & Lens.

The DSLR Assembly Documentation.
