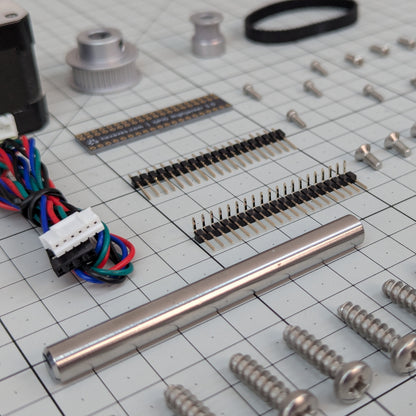

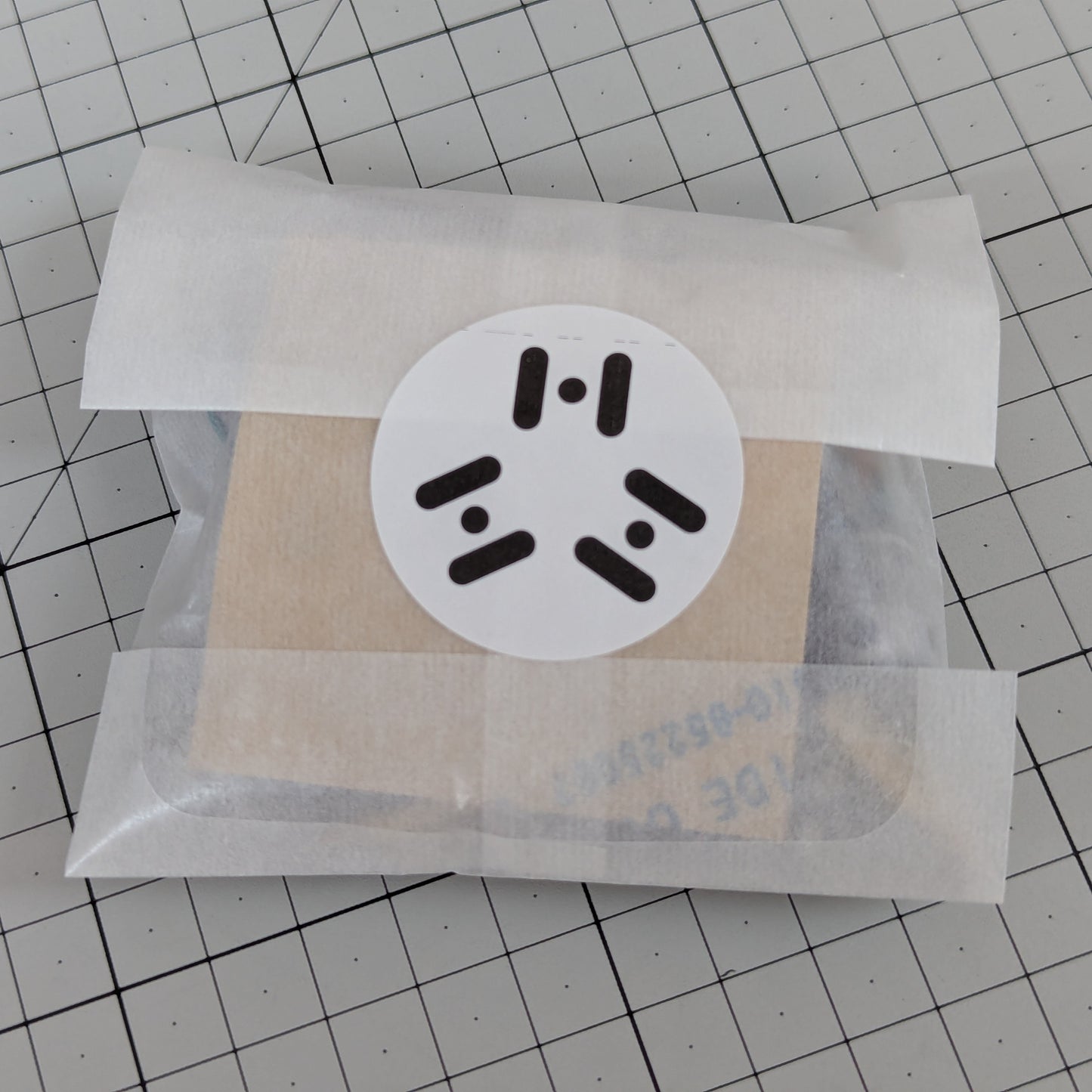

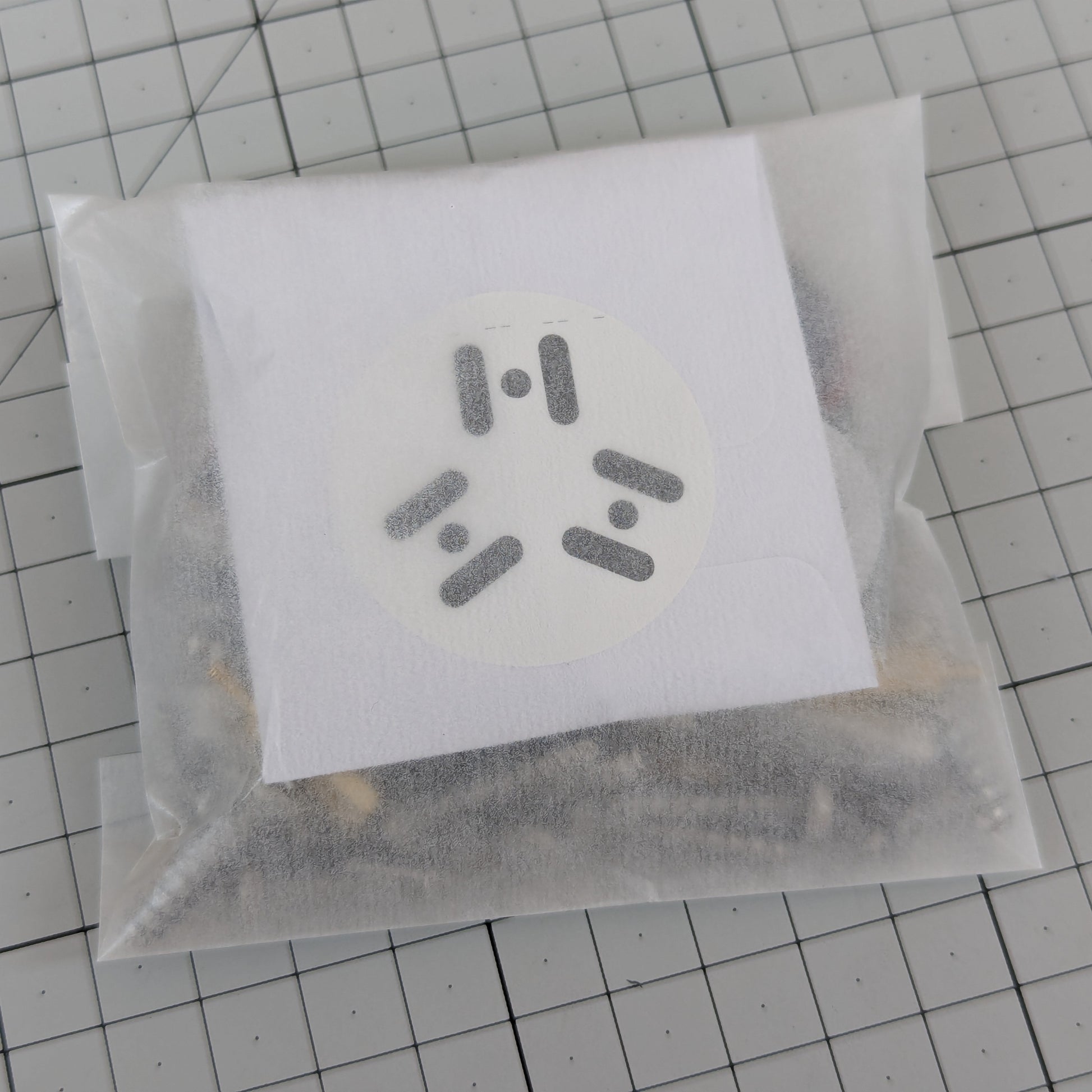

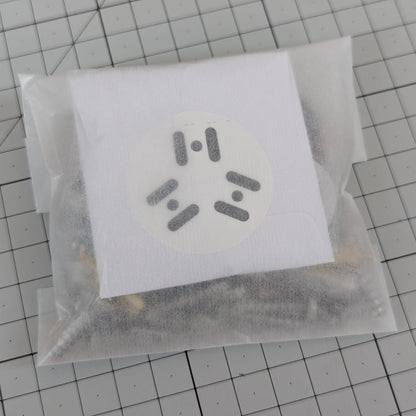

The 102OTA Hardware Kit.

The Hardware Kit for The Sky-Watcher SKYMAX 102 OTA Astrograph.

Considerable time and effort has gone into selecting and testing the components in the 102OTA Hardware Kit.

Each part has been selected for its quality, tested to ensure its durability and packaged together into The 102OTA Hardware Kit for your convenience.

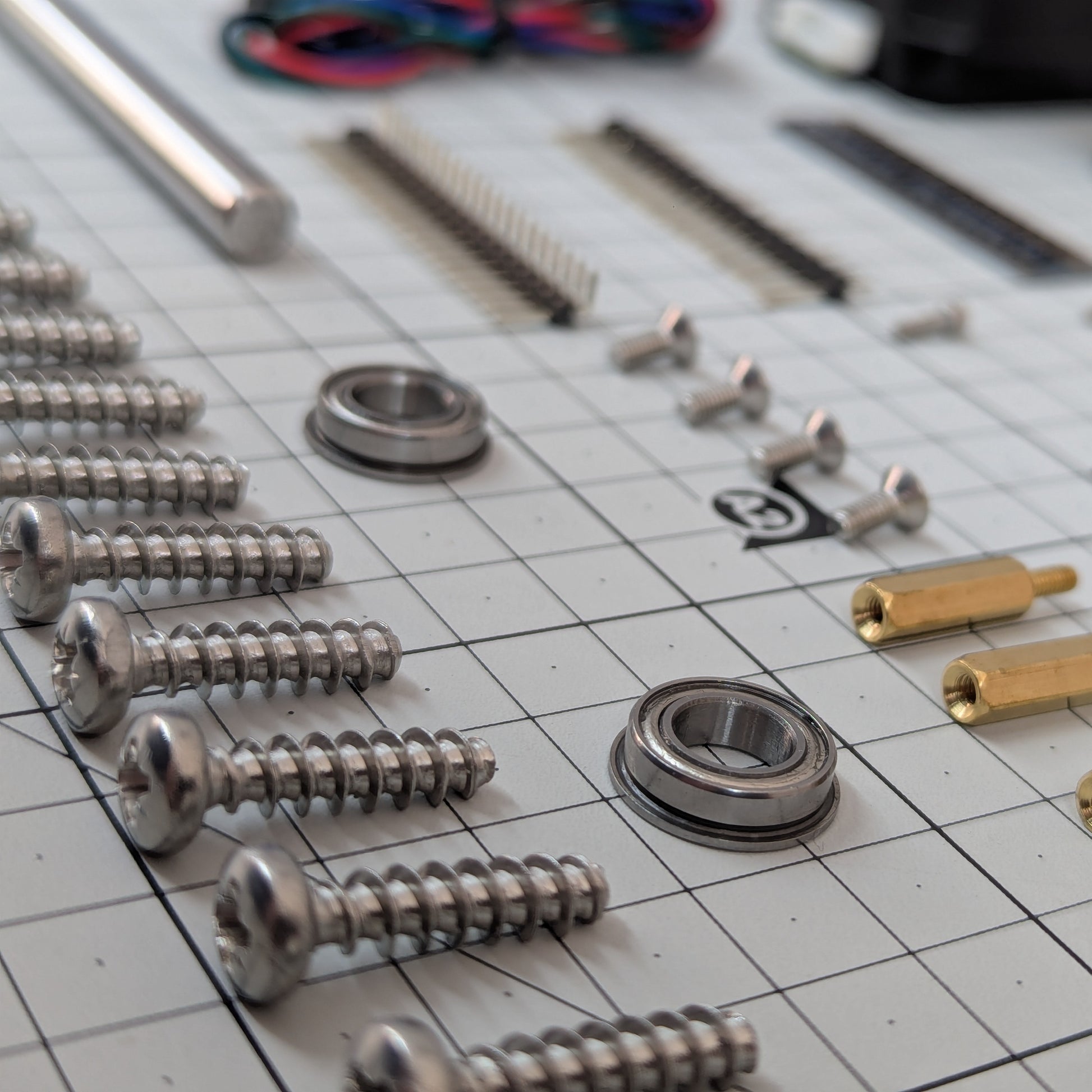

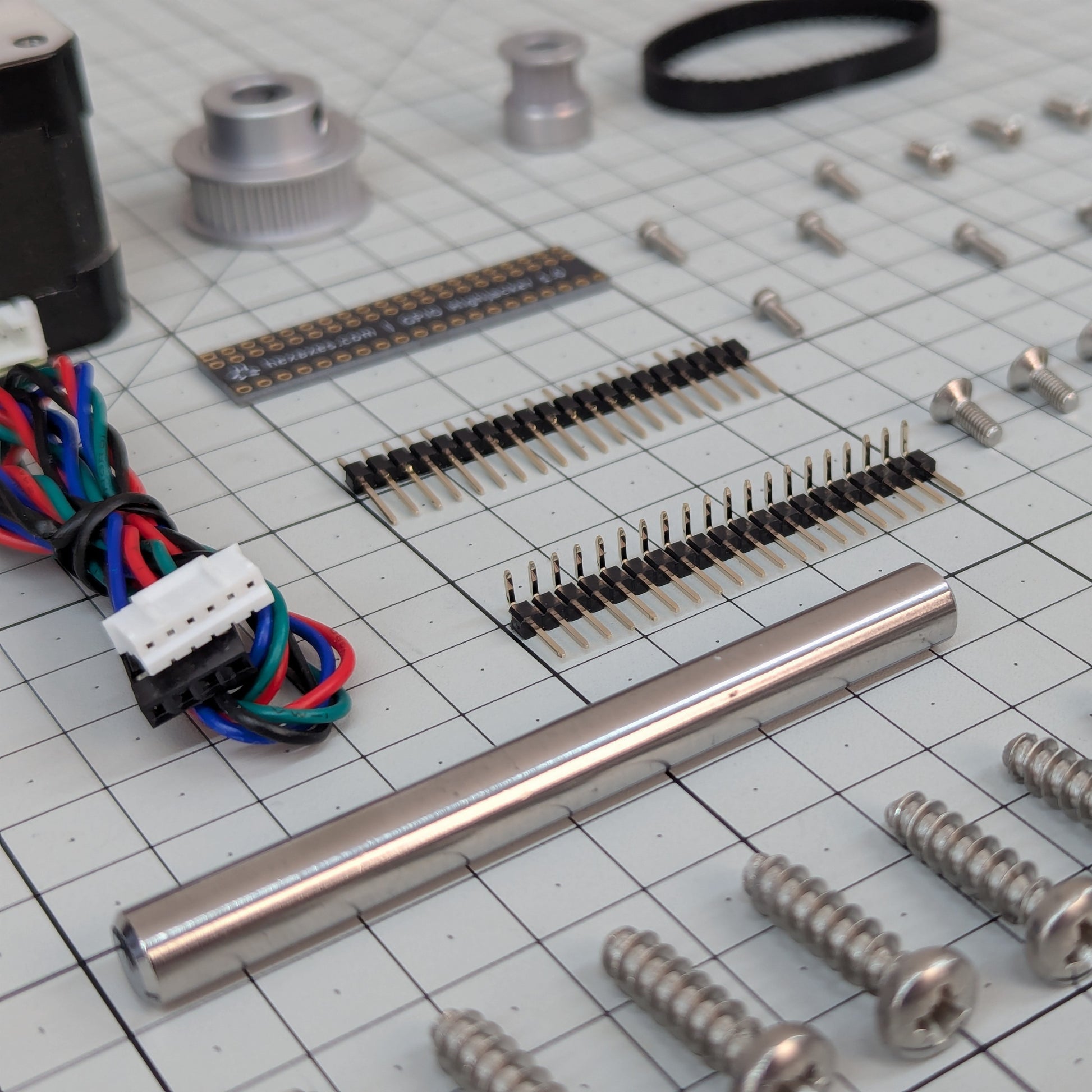

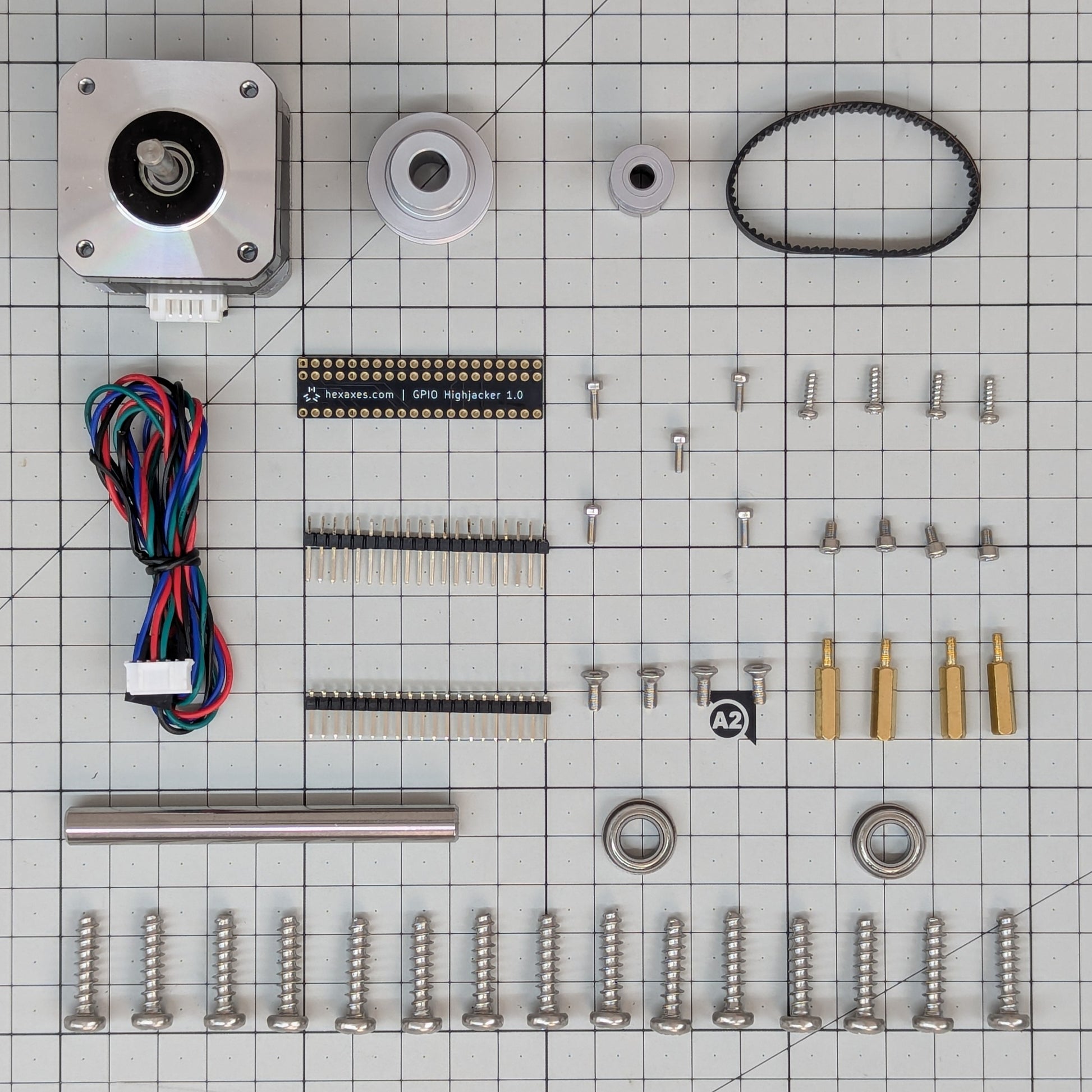

The 102OTA Hardware Kit includes the following parts.

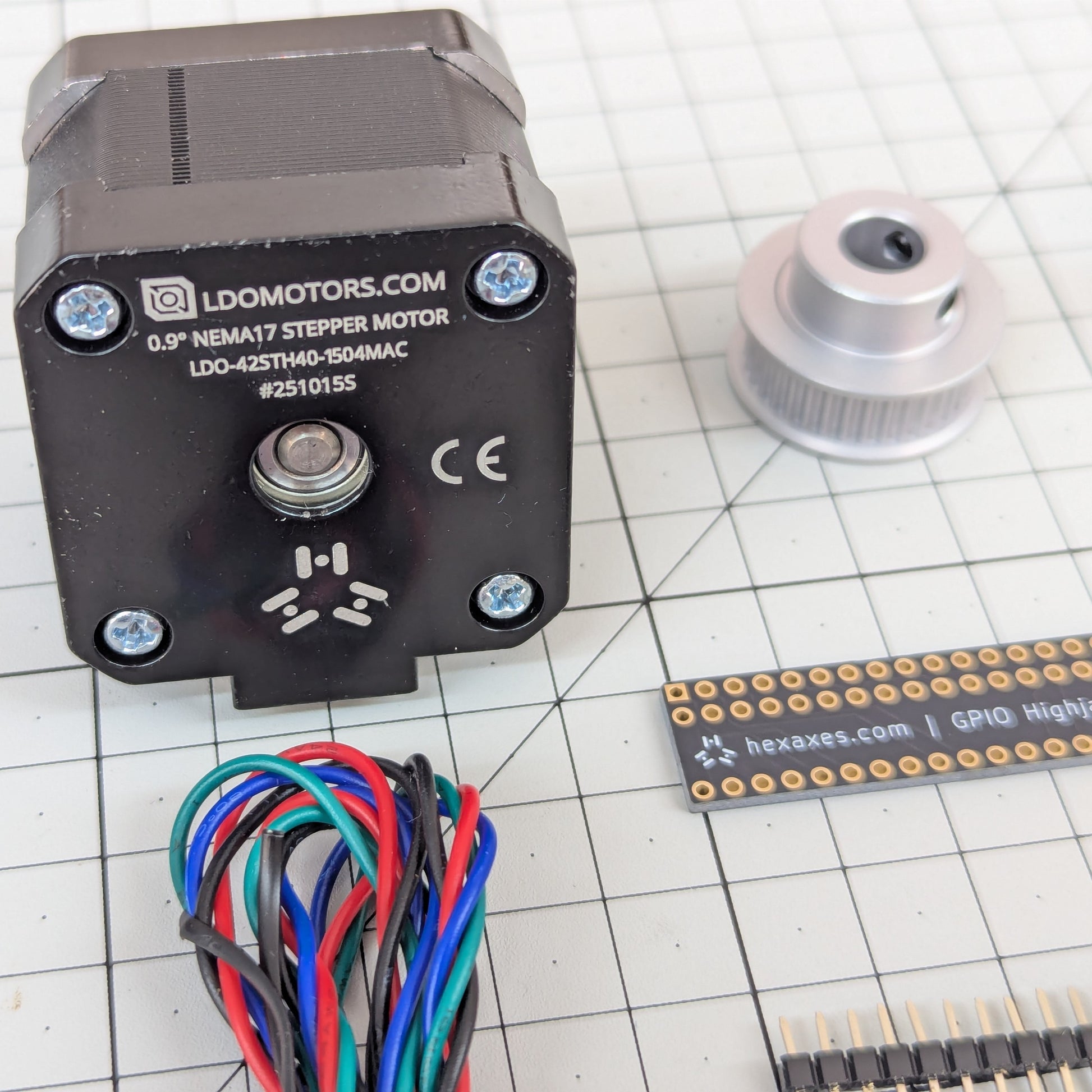

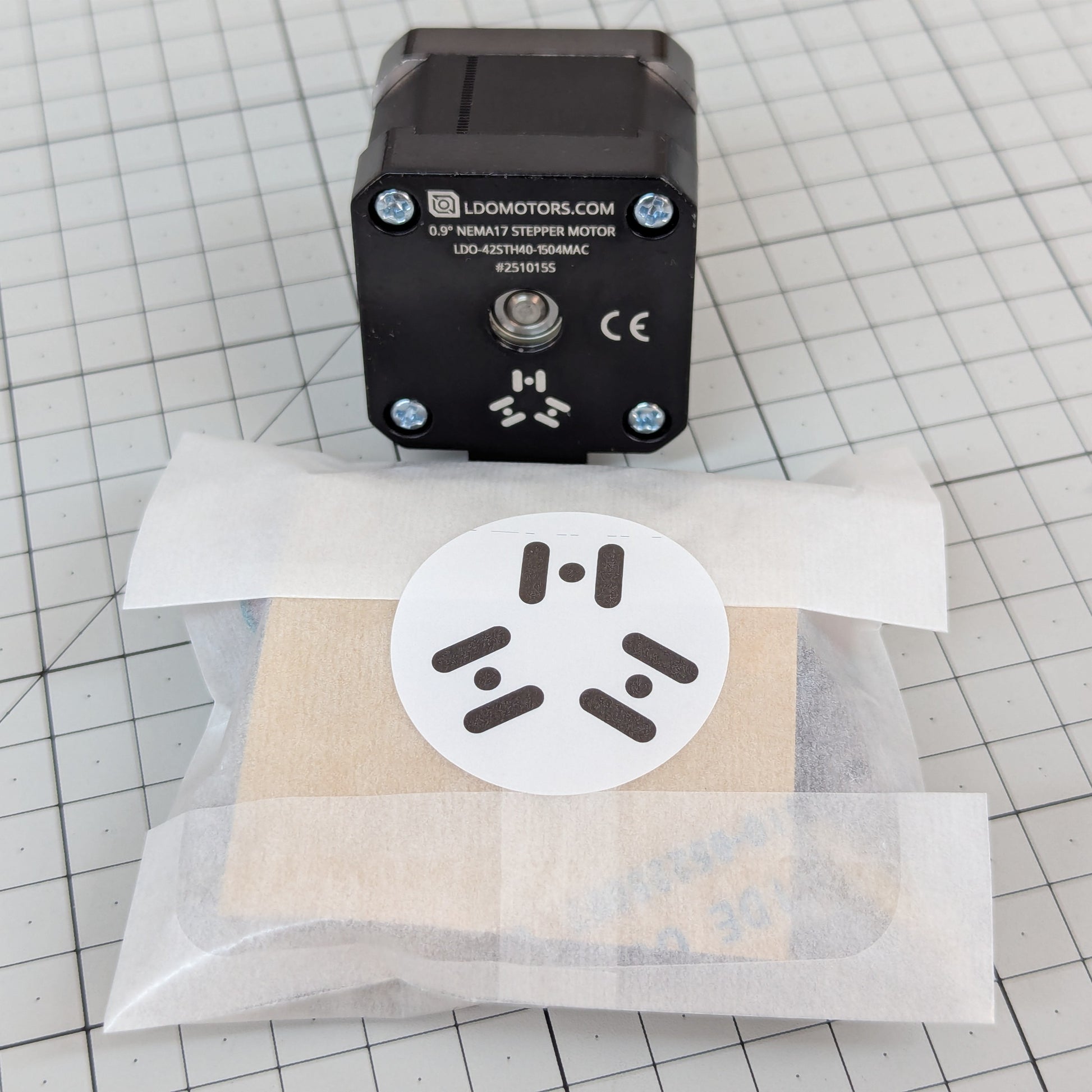

• 1 x LDO 0.9° Stepper Motor & Cable.
• 1 x GPIO Highjacker.
• 2 x 6811-2RS Bearings.

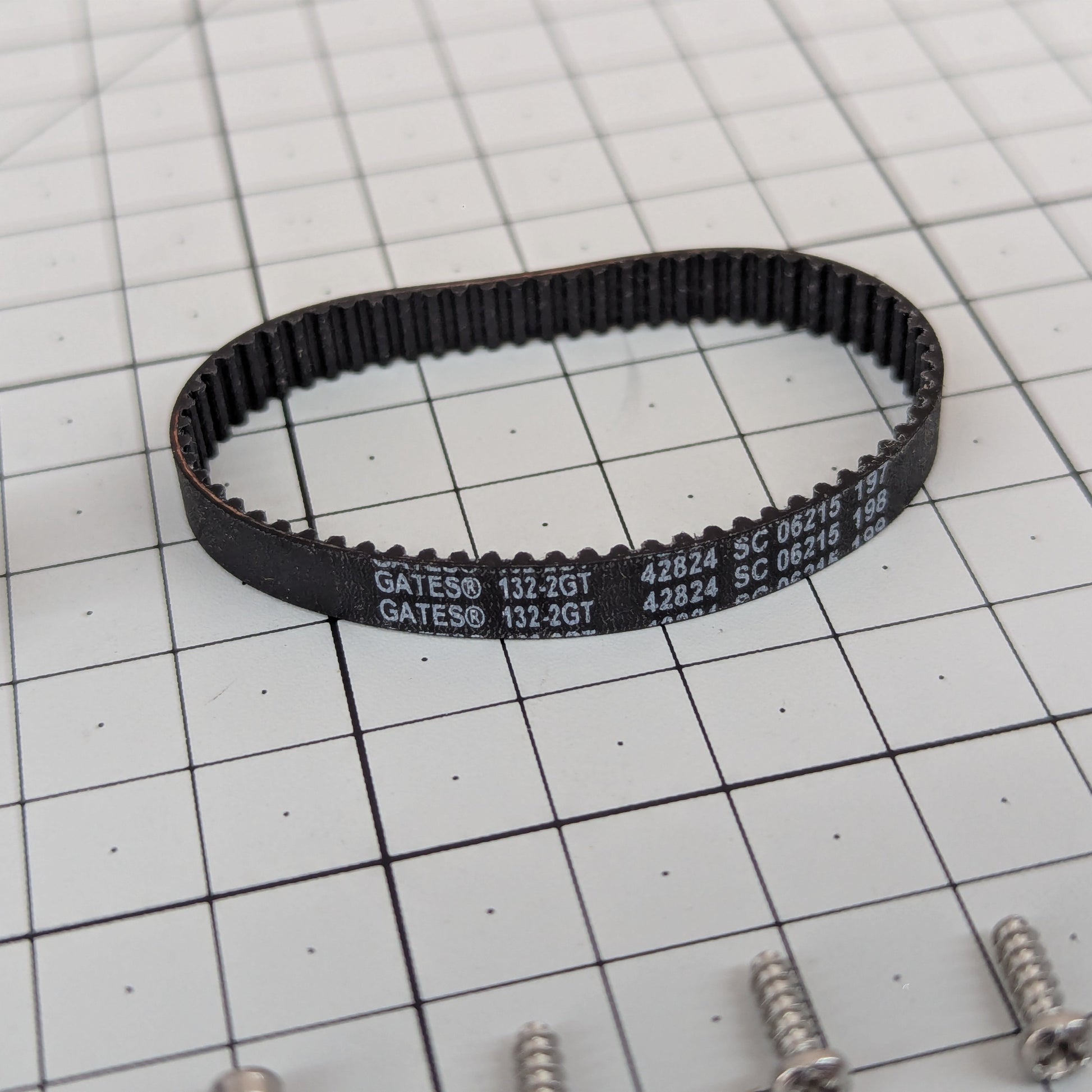

• 1 x Gates 2GT 132T Loop-Belt.
• 1 x 16T 2GT Pulley.
• 1 x 36T 2GT Pulley.
• 15 x M5 20mm Screws for Plastic.
• 4 x M2.5 8mm Screws for Plastic.
• 4 x M3 8mm Countersunk Bolts.
• 4 x M2.5 15mm Standoffs.
• 4 x M2.5 4mm Socket Cap Screws.
• 5 x M2 6mm Socket Cap Screws.


Included with the 102OTA Hardware Kits are the following downloads.

• The 102OTA CAD Pack.
  • STEP Files, including the Main Assembly.
  • STL Files, full sets with all calibration sizes.
  • F3Z Fusion Files, the fully-editable Master Assembly.
  • PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
  • 3MF Files, for Bambu Lab P2S & A1 Mini.


Click here for full details on the 102OTA CAD Pack.

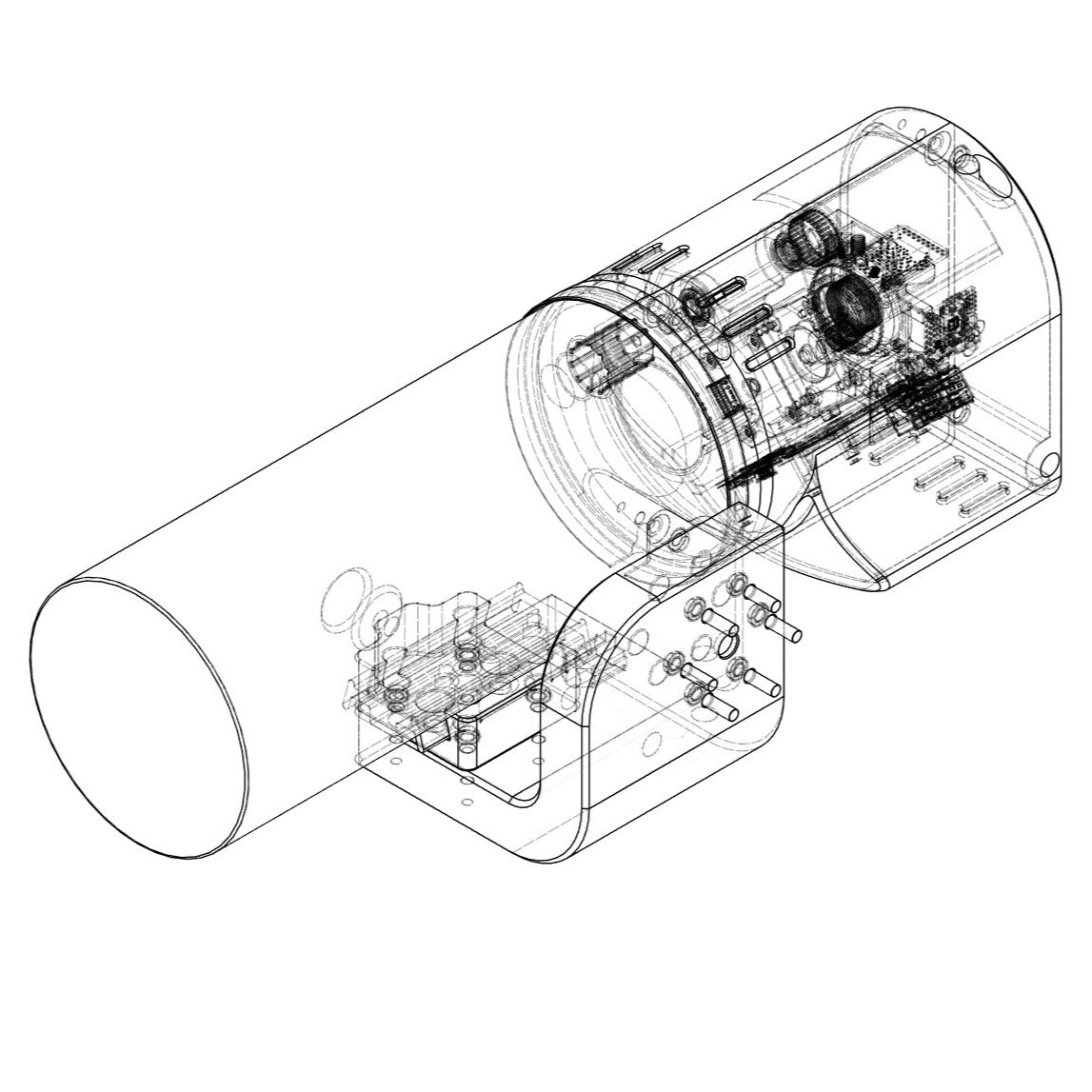

The MountOne Sky-Watcher 102 OTA Astrograph.

The 102 OTA Astrograph takes advantage of the Sky-Watchers low weight, but powerful optics and combines it with the high precision of the MountOne GOTO System.

With the tight Field-Of-View we fully use the Raspberry Pi 5's dual CSI camera sockets and integrate a Guide Scope into the system.

The 102OTA astrograph integrates focus control, HQ Camera, a Raspberry Pi 5 & accessories, power converter, and an optional GPS into a single unit. We also use a 30mm Guider Scope.
