The 100MM Astrograph Hardware Kit.

The Hardware Kit for The MountOne 100MM Astrograph.

Considerable time and effort has gone into selecting and testing the components in the 100MM Hardware Kit.

Each part has been selected for its quality, tested to ensure its durability and packaged together into The 100MM Hardware Kit for your convenience.

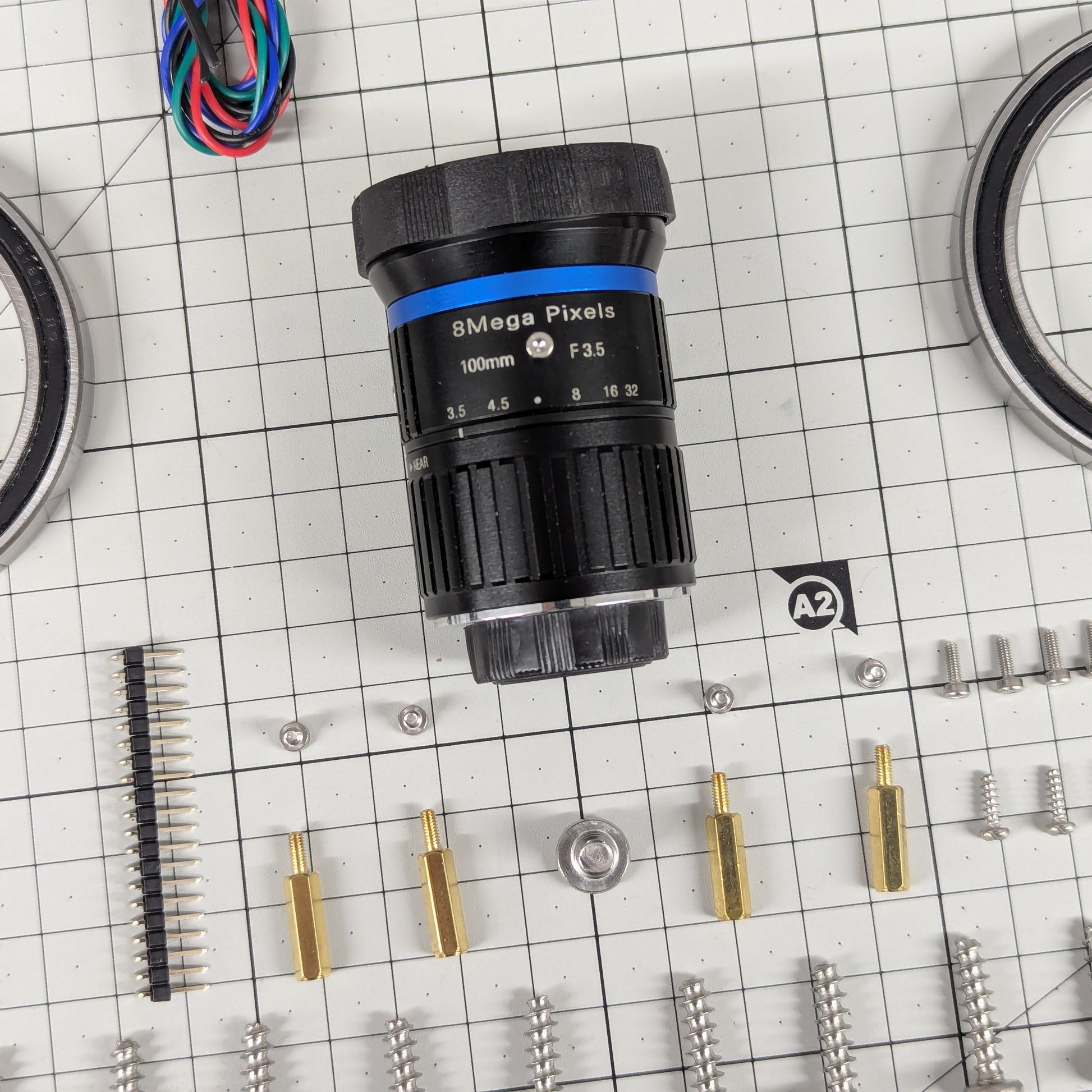

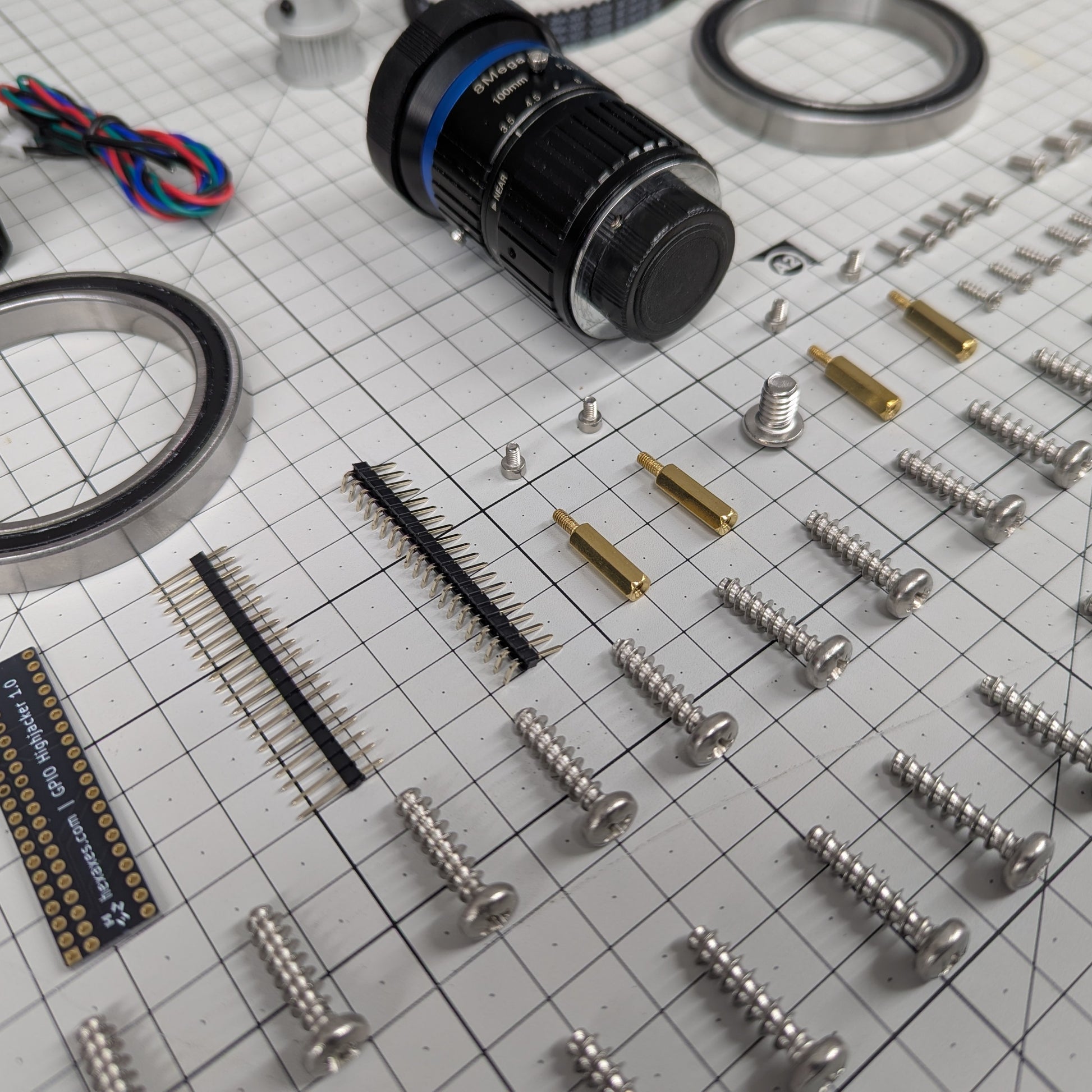

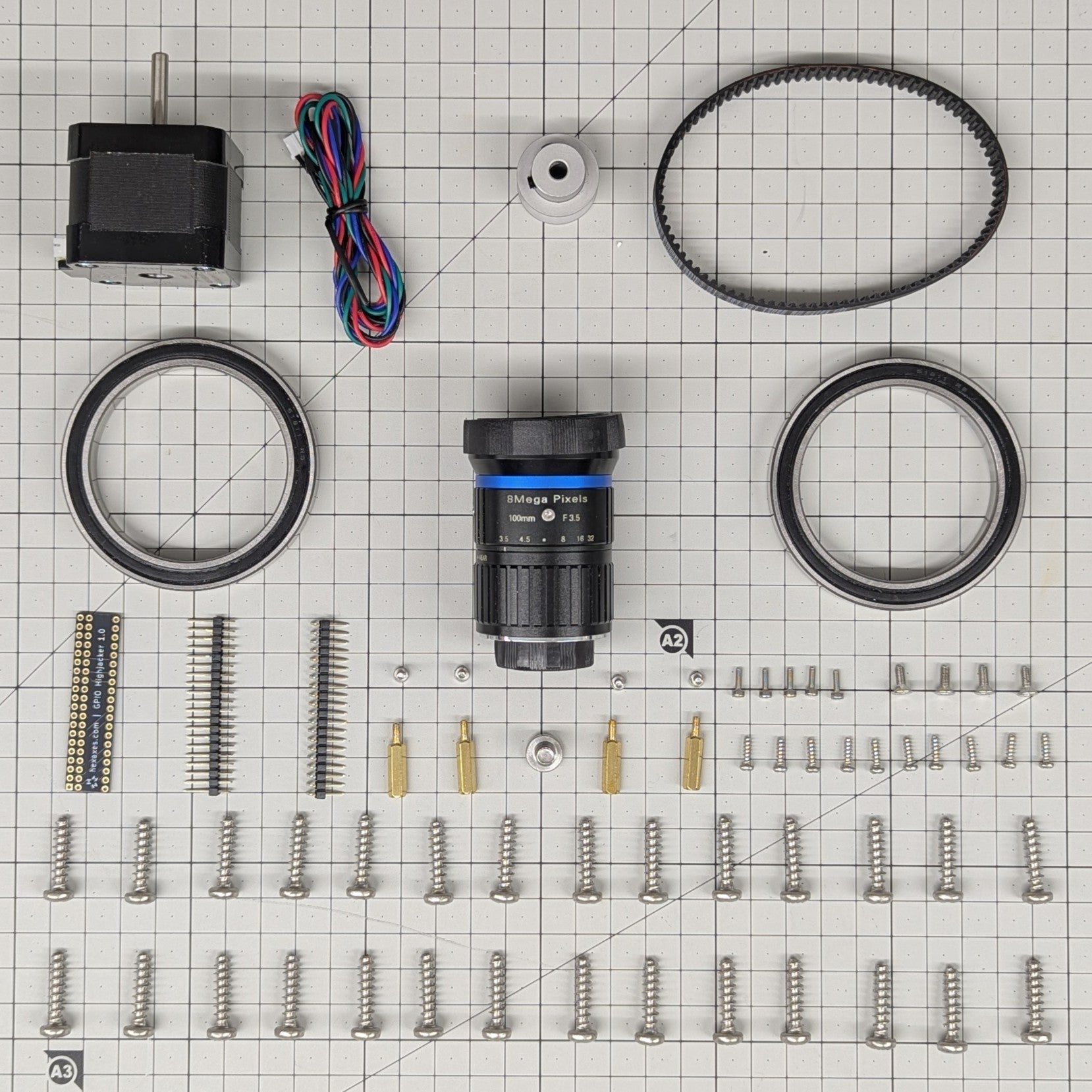

The 100MM Hardware Kit includes the following parts.

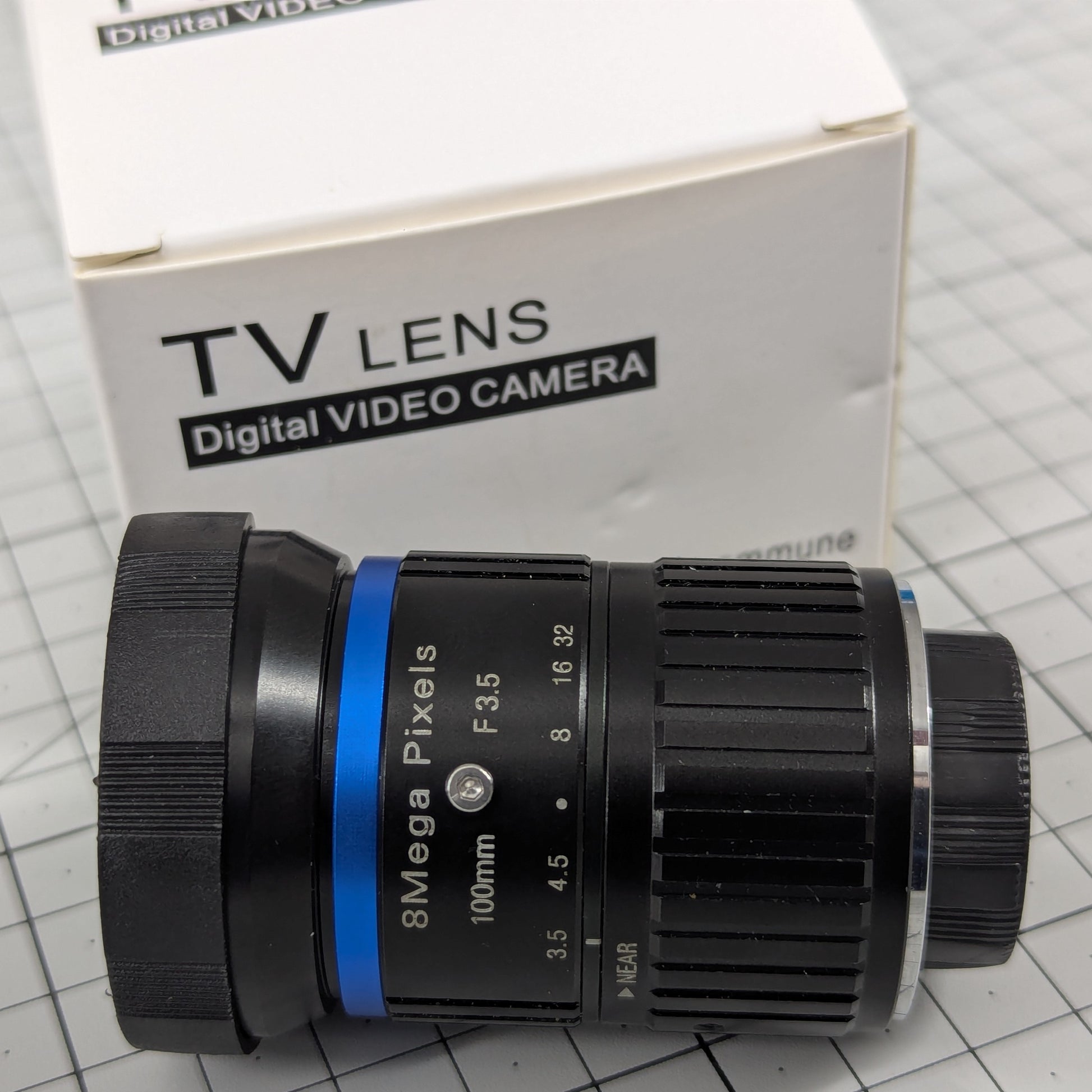

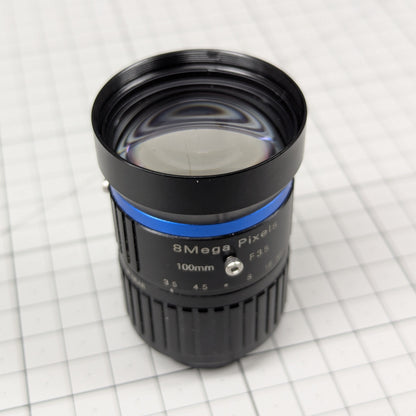

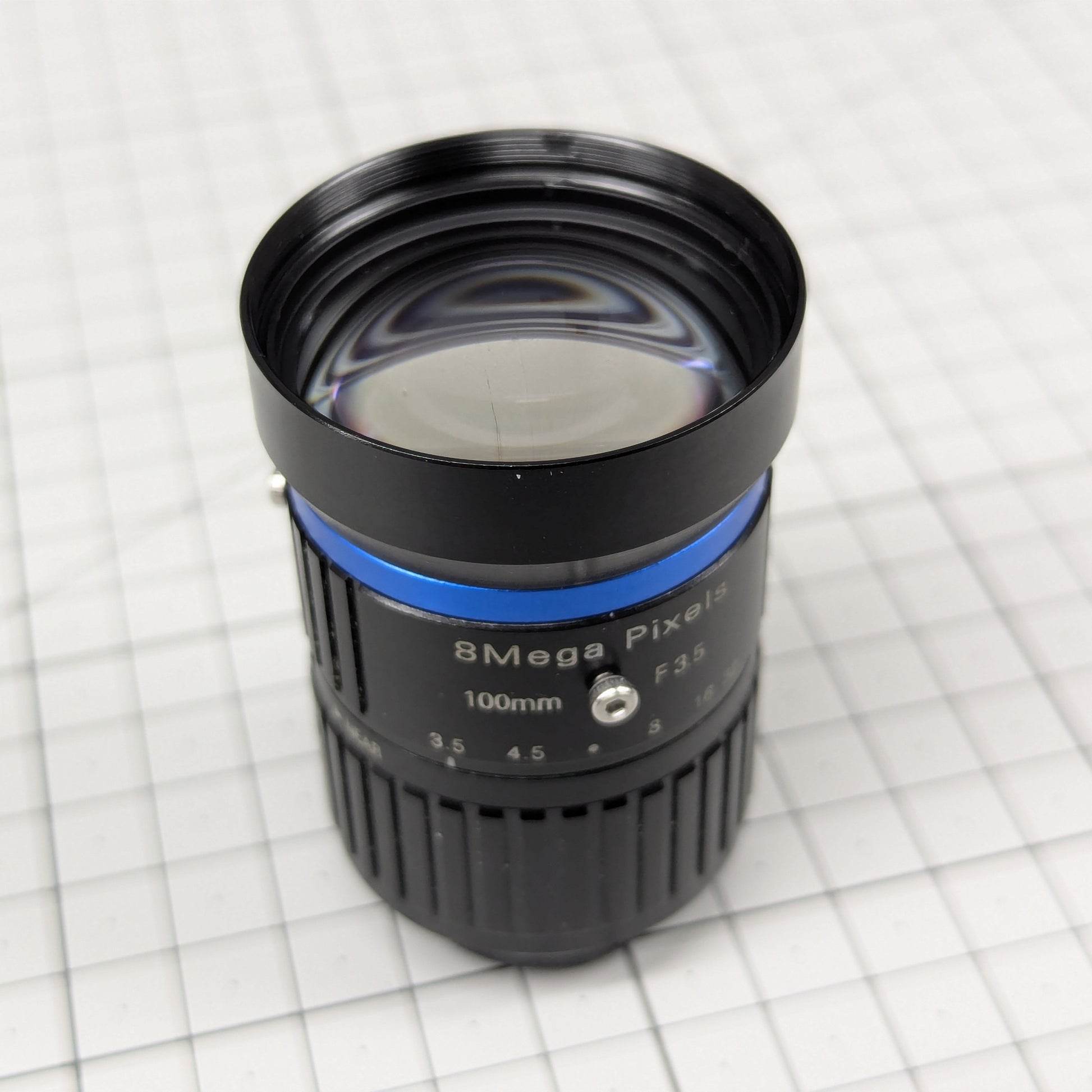

• 1 x 100mm f/3.5 C-Mount Apochromatic Lens.

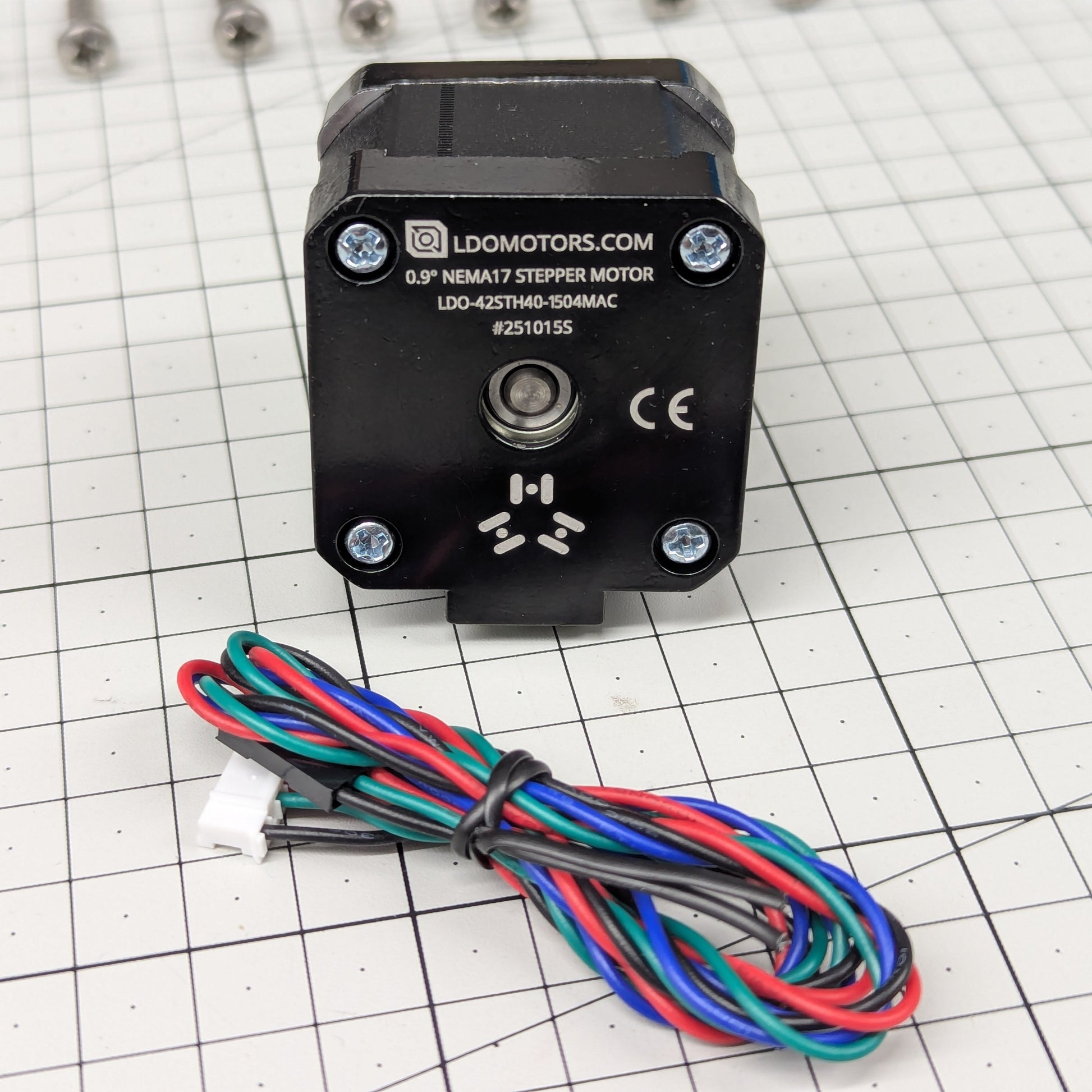

• 1 x LDO 0.9° Stepper Motor & Cable.
• 1 x GPIO Highjacker.
• 2 x 6811-2RS Bearings.

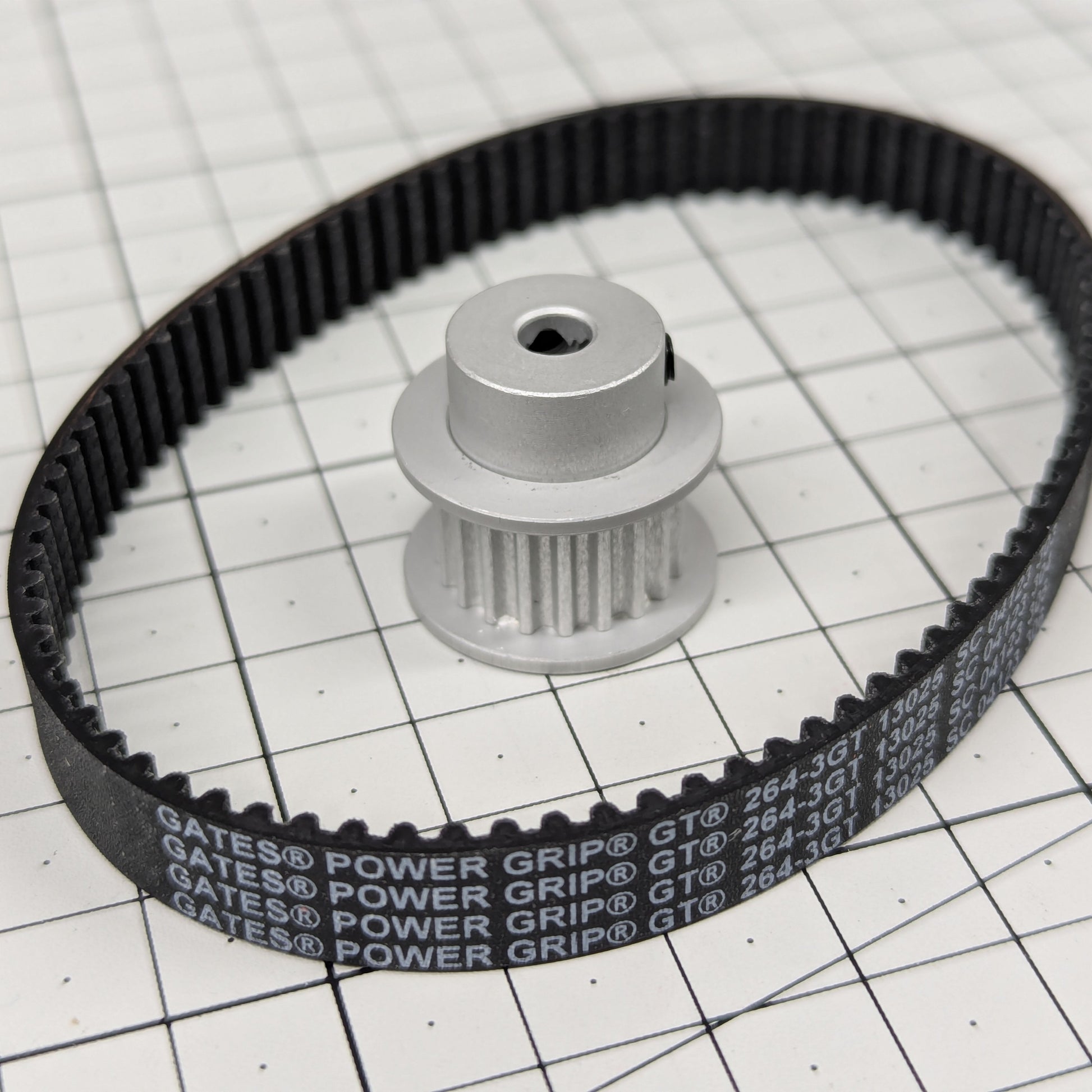

• 1 x Gates 3GT 264T Loop-Belt.
• 1 x 20T 3GT Pulley.

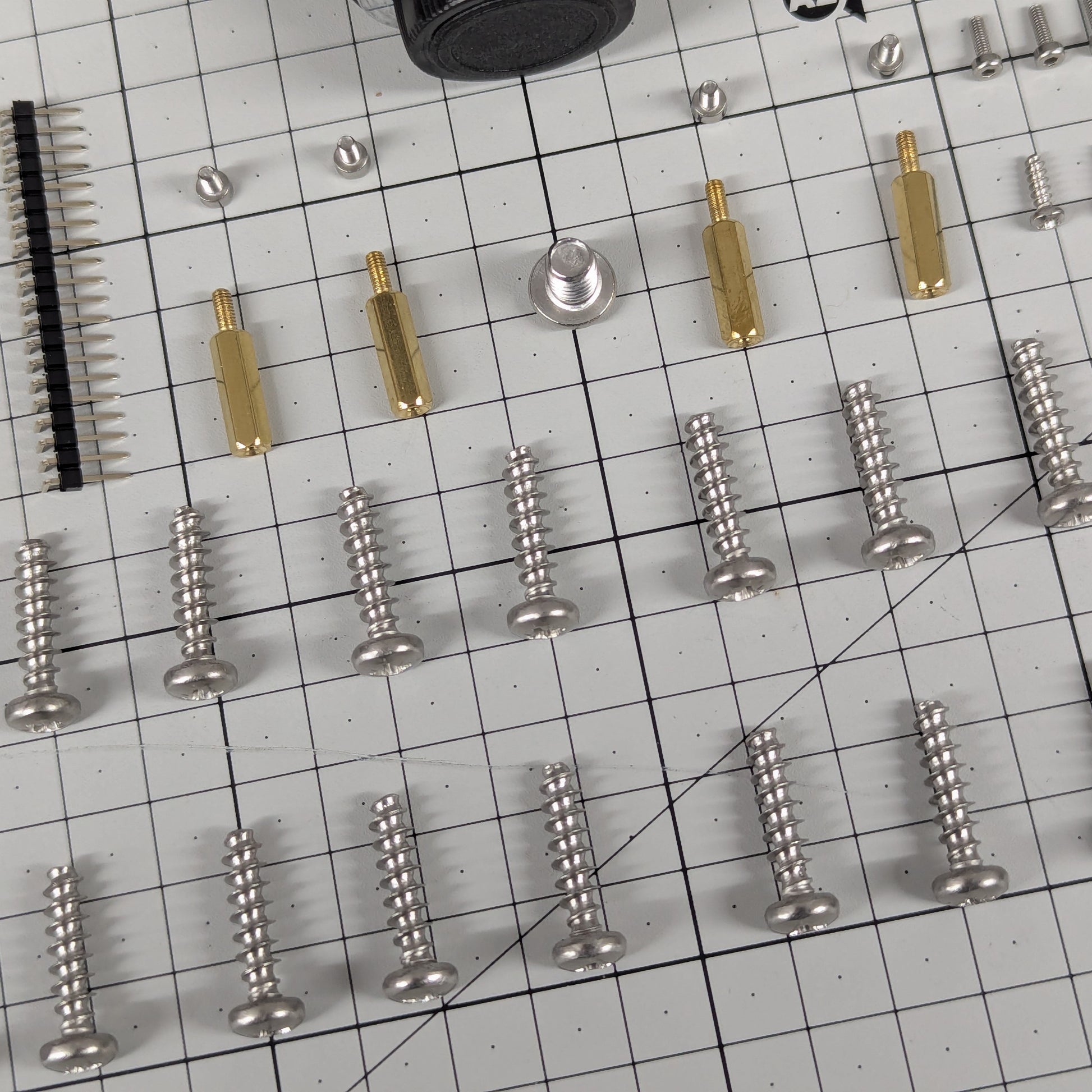

• 28 x M5 20mm Screws for Plastic.
• 10 x M2.5 8mm Screws for Plastic.
• 4 x M3 8mm Countersunk Bolts.
• 4 x M2.5 15mm Standoffs.
• 4 x M2.5 4mm Socket Cap Screws.
• 5 x M2 6mm Socket Cap Screws.
• 1 x 1/4-20 3/8 UNC Bolt.

Included with the 100MM Hardware Kits are the following downloads.

• The 100MM CAD Pack.
  • STEP Files, including the Main Assembly.
  • STL Files, full sets with all calibration sizes.
  • F3Z Fusion Files, the fully-editable Master Assembly.
  • PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
  • 3MF Files, for Bambu Lab P2S & A1 Mini.


Click here for full details on the 100MM CAD Pack.

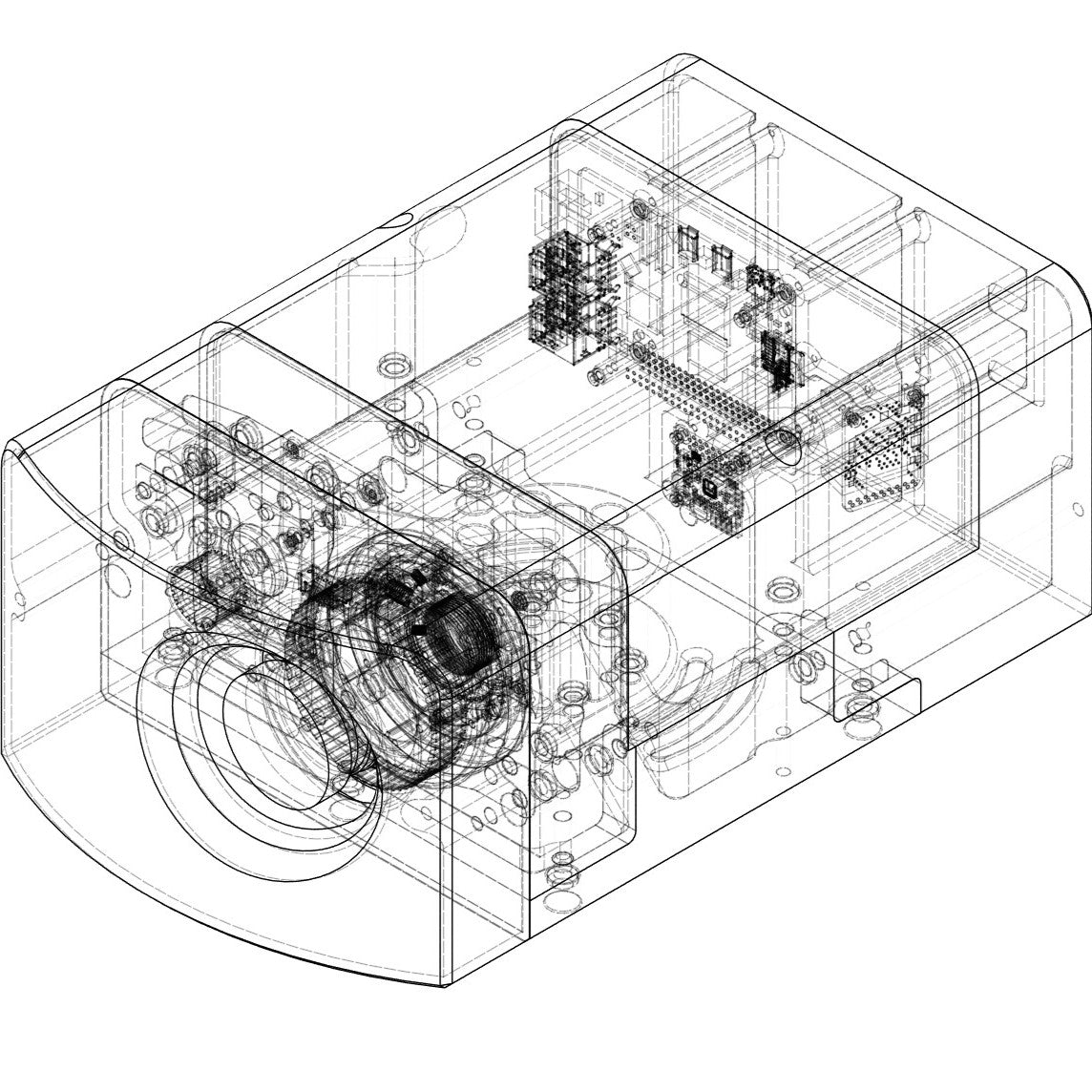

The MountOne 100MM Astrograph.

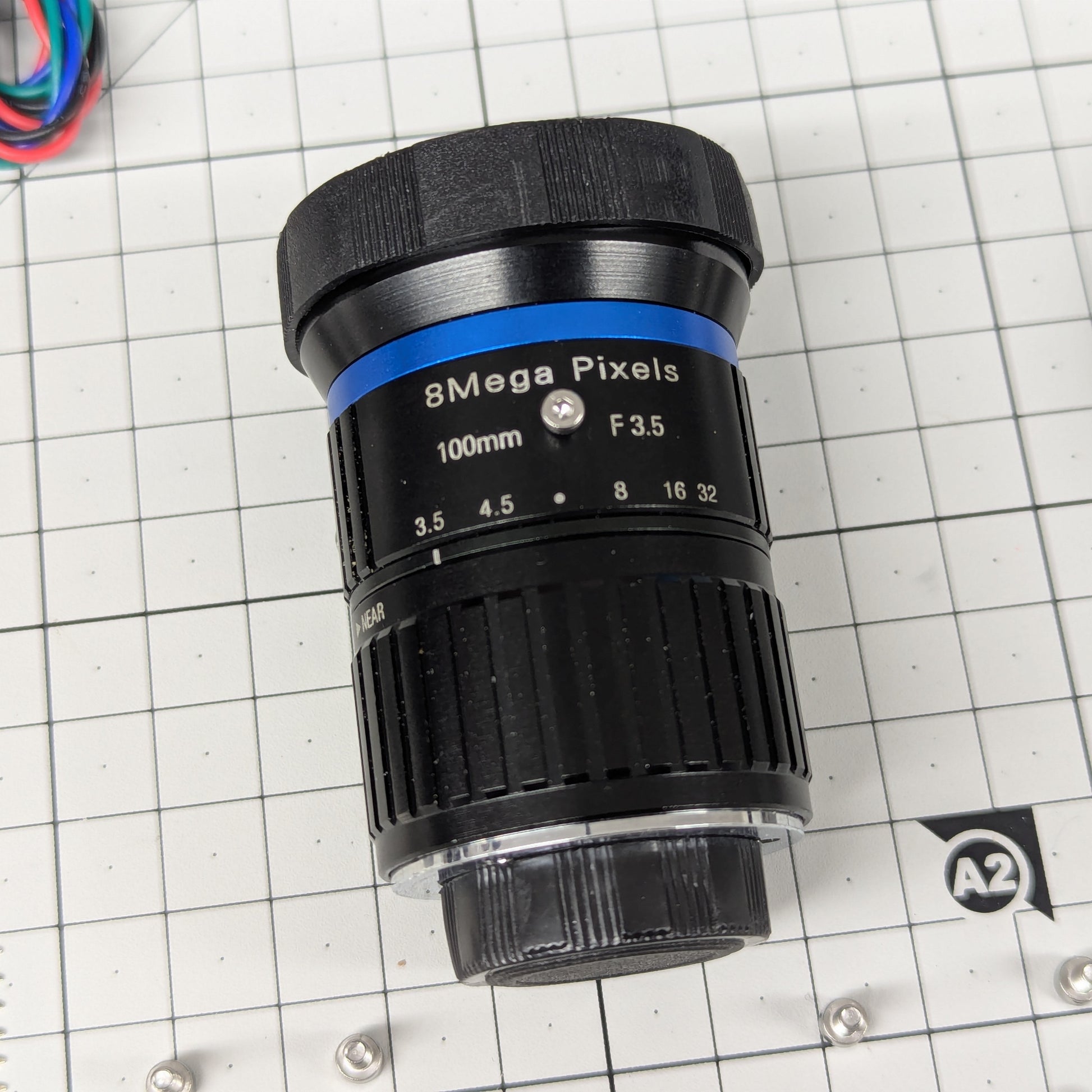

Front and centre, top, is a 100mm f/3.5 apochromatic C-Mount lens. The lens has manual iris and focus control rings on the exterior of the lens.

The 100MM Astrograph enables automatic focus control of the lens by way of a stepper motor, belt and printed focus ring. Taking advantage of OnStep's INDI Focus driver, we can remotely control and adjust the precise position of the 100mm's focal plane.

Twin 6811-2RS bearings (the same as used in the MountOne), support any tension on the belts that adjust the focus. This keeps any stresses off both the lens and the Raspberry Pi HQ Camera it attaches to.

The 100MM astrograph integrates the lens, focus system, HQ Camera, a Raspberry Pi 5 & accessories, power converter, and an optional GPS into a single unit.

The 100MM Assembly Documentation.
