The 100MM Astrograph STL Set.
The 100MM Astrograph STL Set.
Couldn't load pickup availability
The 100MM Astrograph STL Set.

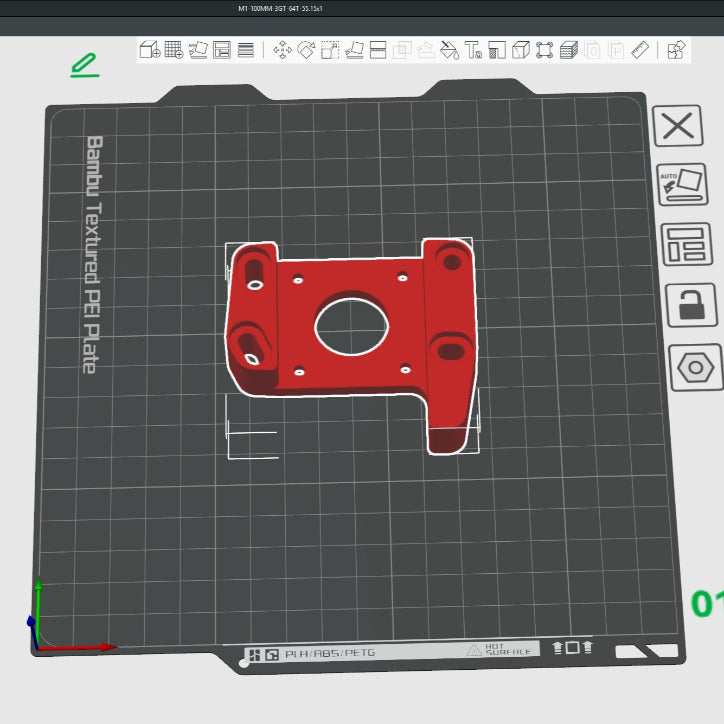

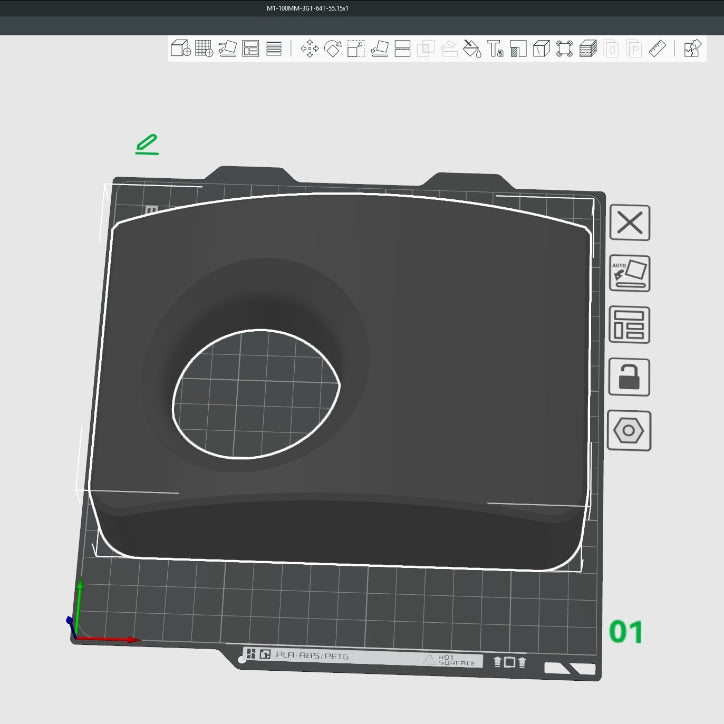

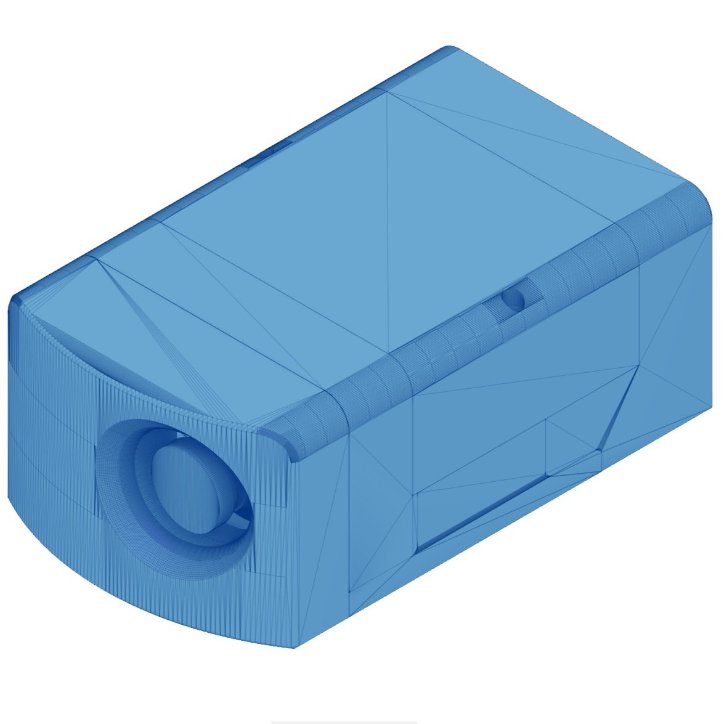

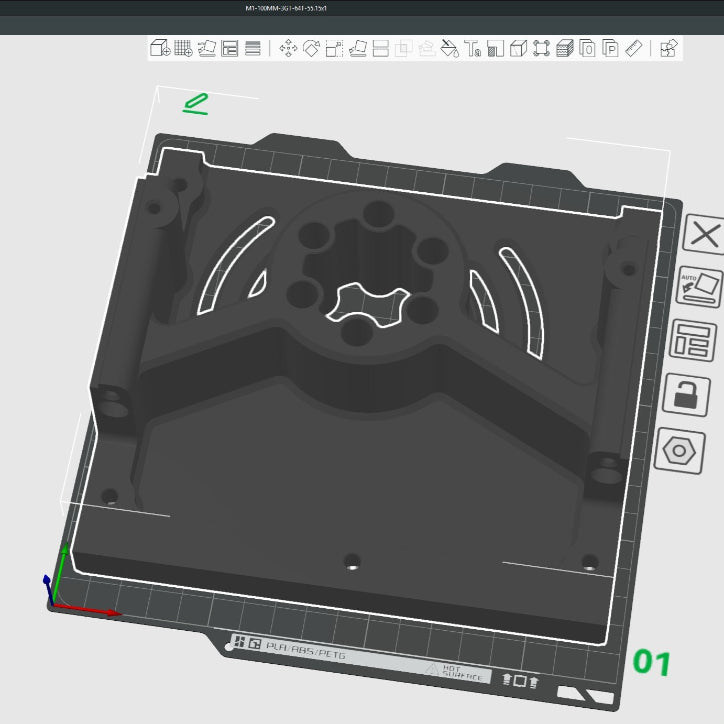

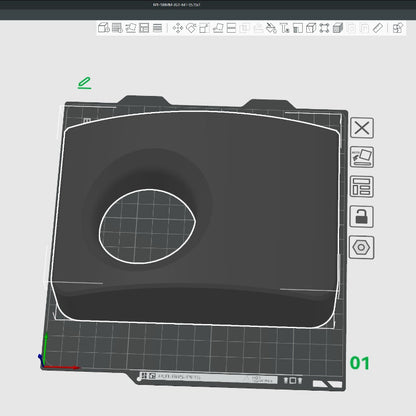

This set contains the basic STLs needed to print and build the MountOne GOTO Telescope Mount. You will need to source all your own hardware and electronics.
The MountOne STL Set is available to download from the following websites,
The 100MM Astrograph CAD Pack is also available, and contains all digital resources for the astrograph.
- STEP Files, including the Main Assembly.
- STL Files, full sets with all calibration sizes.
- F3Z Fusion Files, the fully-editable Master Assembly.
- PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
- 3MF Files, for Bambu Lab X1C & A1 Mini.
The 100MM Hardware Kit is available too, and contains all the fixings and hardware required to print and build the astrograph. Just add electronics.
The MountOne 100MM Astrograph.
Front and centre, top, is a 100mm f/3.5 apochromatic C-Mount lens. The lens has manual iris and focus control rings on the exterior of the lens.

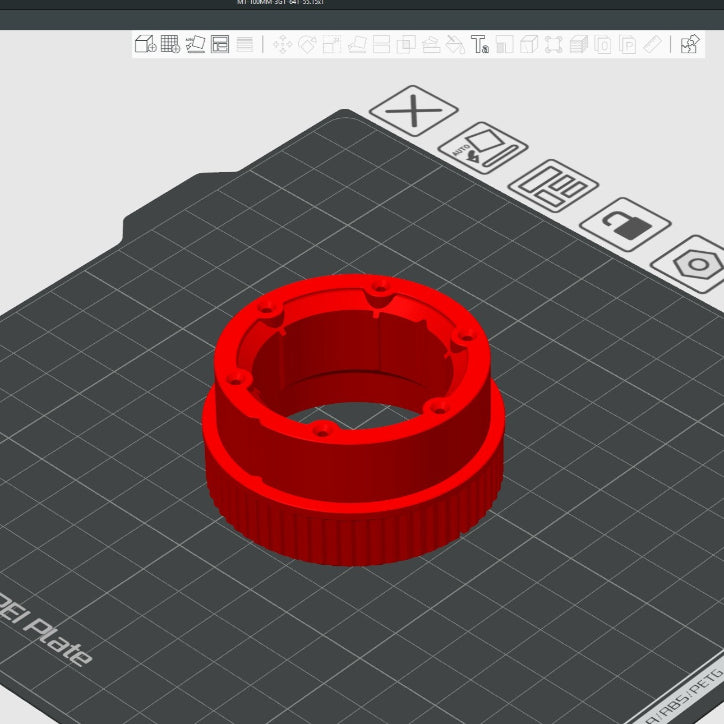

The 100MM Astrograph enables automatic focus control of the lens by way of a stepper motor, belt and printed focus ring. Taking advantage of OnStep's INDI Focus driver, we can remotely control and adjust the precise position of the 100mm's focal plane.
Twin 6811-2RS bearings (the same as used in the MountOne), support any tension on the belts that adjust the focus. This keeps any stresses off both the lens and the Raspberry Pi HQ Camera it attaches to.

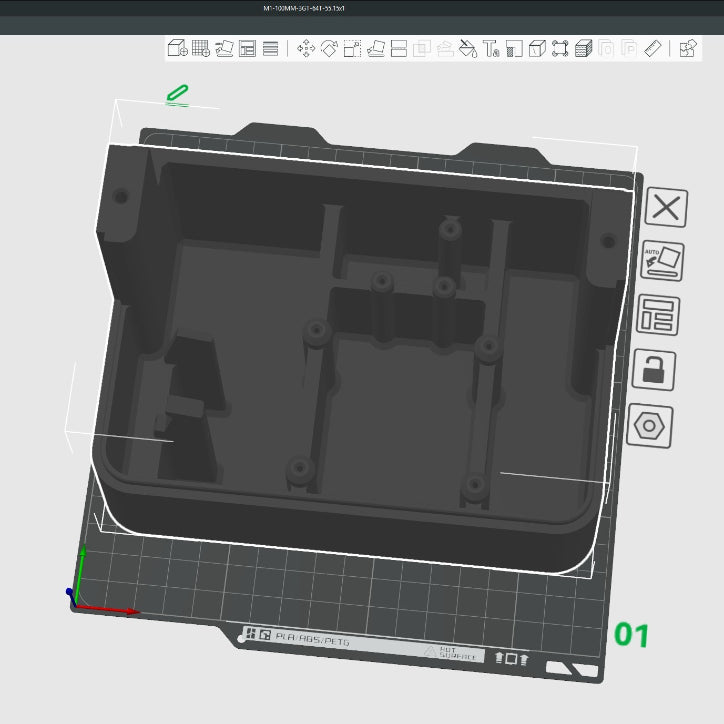

The 100MM astrograph integrates the lens, focus system, HQ Camera, a Raspberry Pi 5 & accessories, power converter, and an optional GPS into a single unit.
The 100MM Assembly Documentation.
