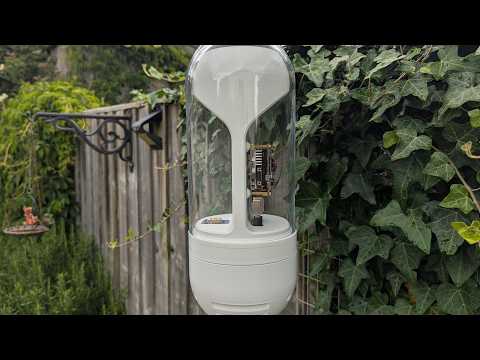

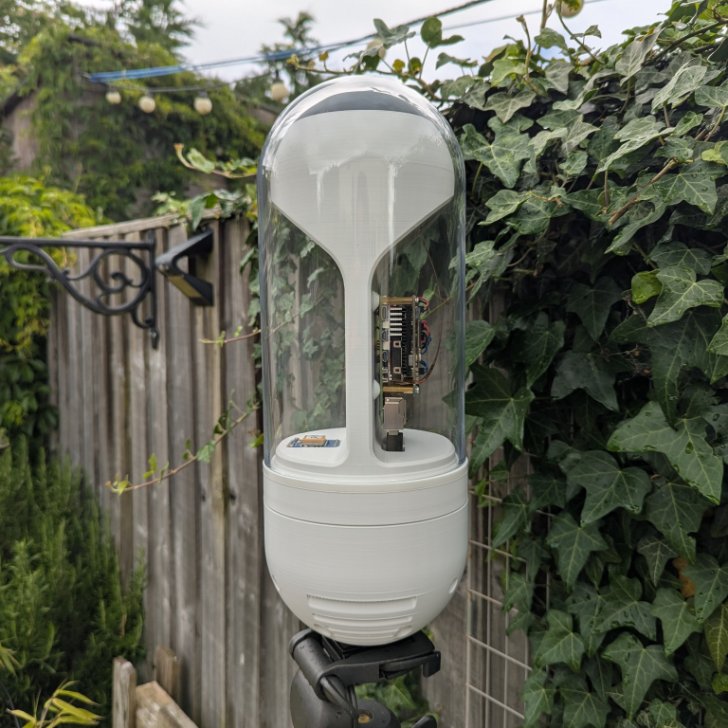

The AllSky Capsule CAD Pack.

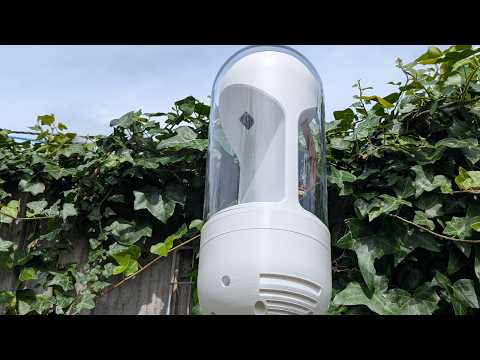

The AllSky Capsule is a camera system for astrophotography. It constantly records images of the sky, both night and day, and compiles timelapses using the captured images.

I have developed the AllSky Capsule to use Aaron Morris' indi-allsky software.

https://github.com/aaronwmorris/indi-allsky

There are many other AllSky software packages available, and I have designed another Allsky Enclosure in the past using Thomas Jacquin's AllSky.

This version, The AllSky Capsule, is inspired by the Ikea BEGÅVNING Glass Dome.

Features.

• Raspberry Pi 4/5
• Raspberry Pi HQ Camera.
• Arducam 120 Degree Ultra Wide Lens.
• Temperature Controlled System Fan.
• Designed for PoE.
• Real Glass Enclosure.
• Real-Time Weather Data (BME680).
  • Temperature.
  • Pressure.
  • Humidity.
  • Air Quality.
• Real-Time Lux Data (TSL2591).
  • Lux.
  • Visible Light.
  • Infrared.
  • Full Spectrum.
• GNSS Location Data (Adafruit Ultimate GPS Module).

The CAD Pack includes the following.

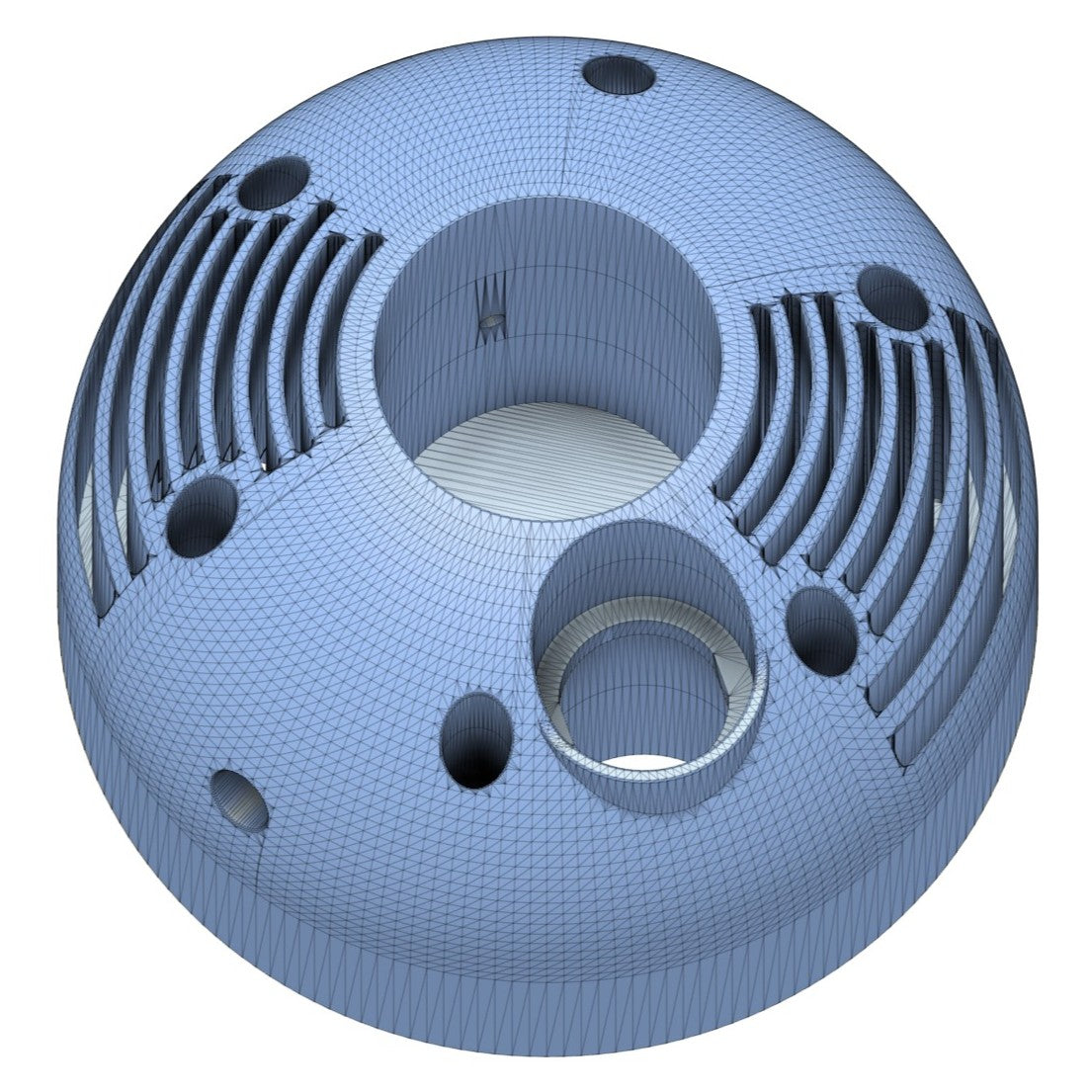

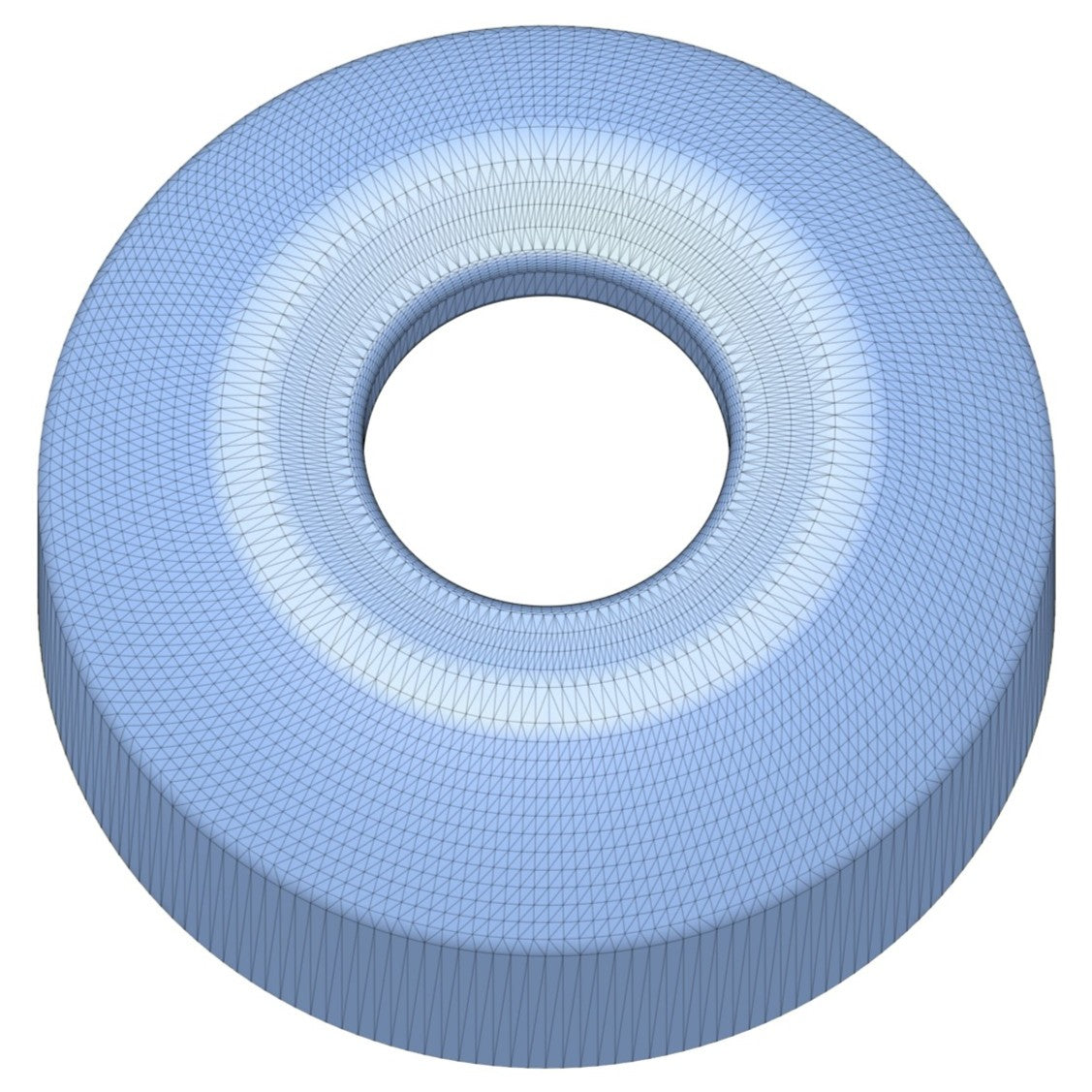

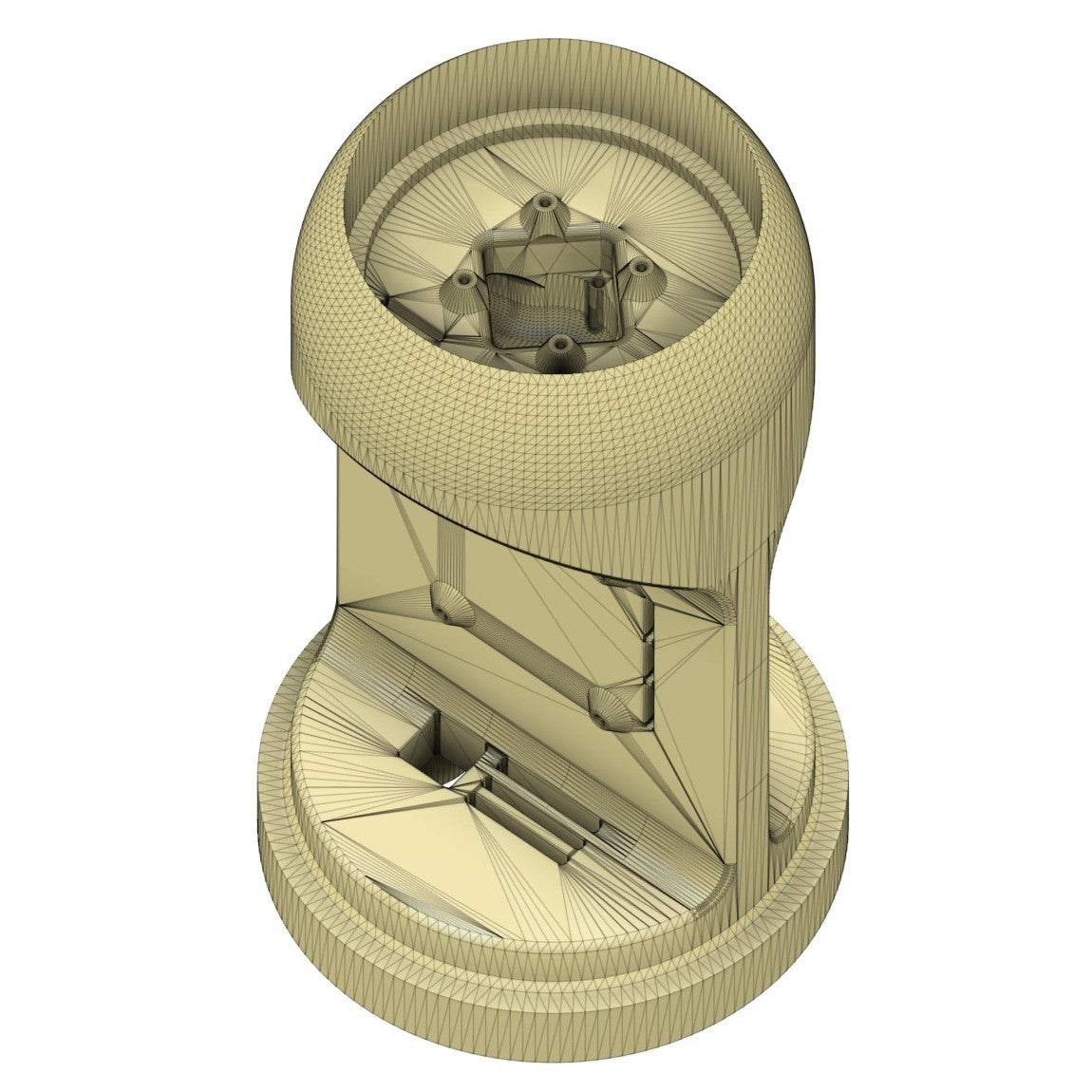

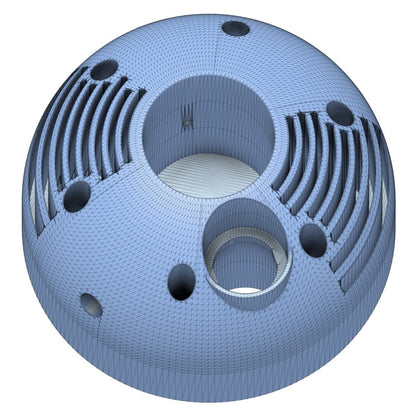

• The Full STLs Set.
• The Full STEPs Export.

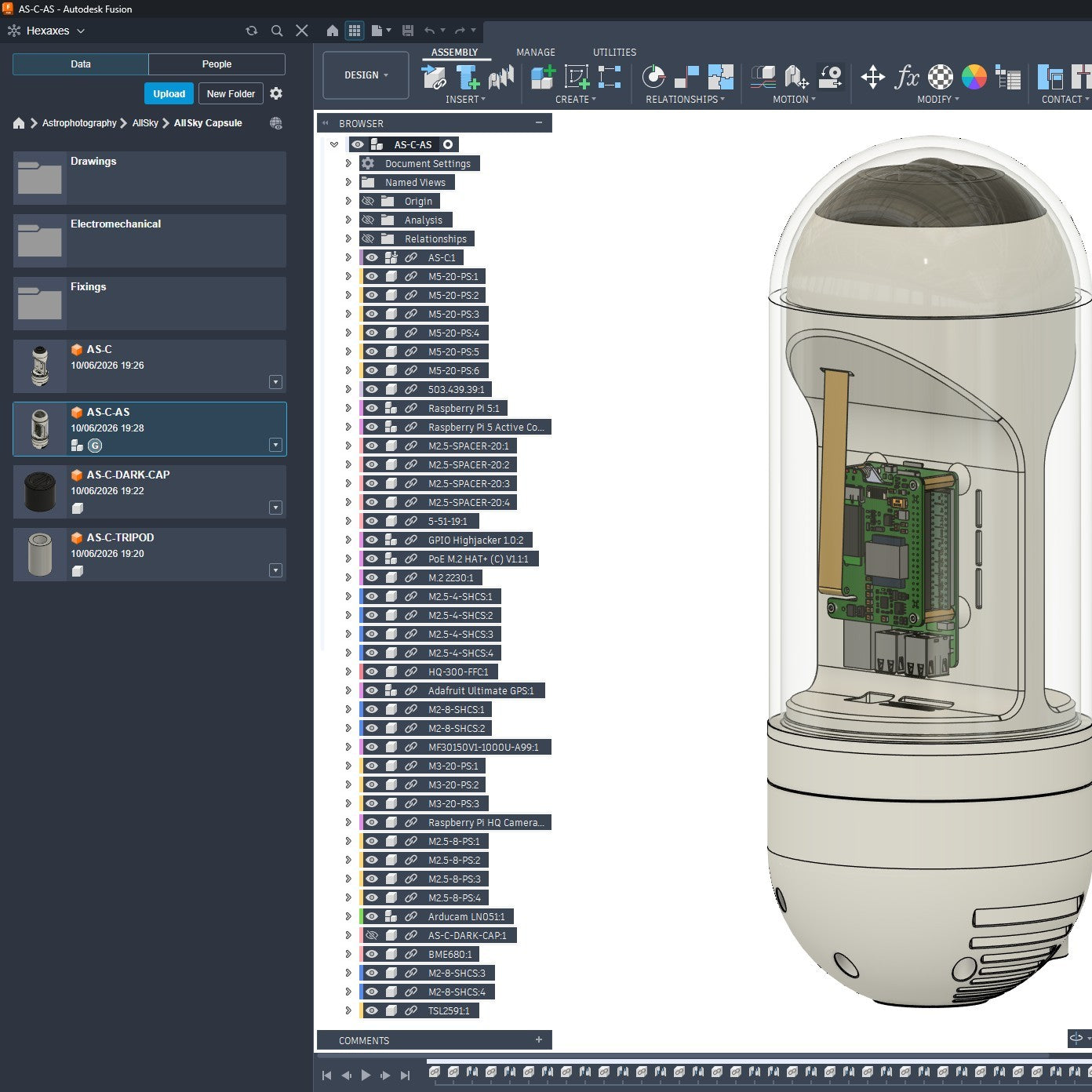

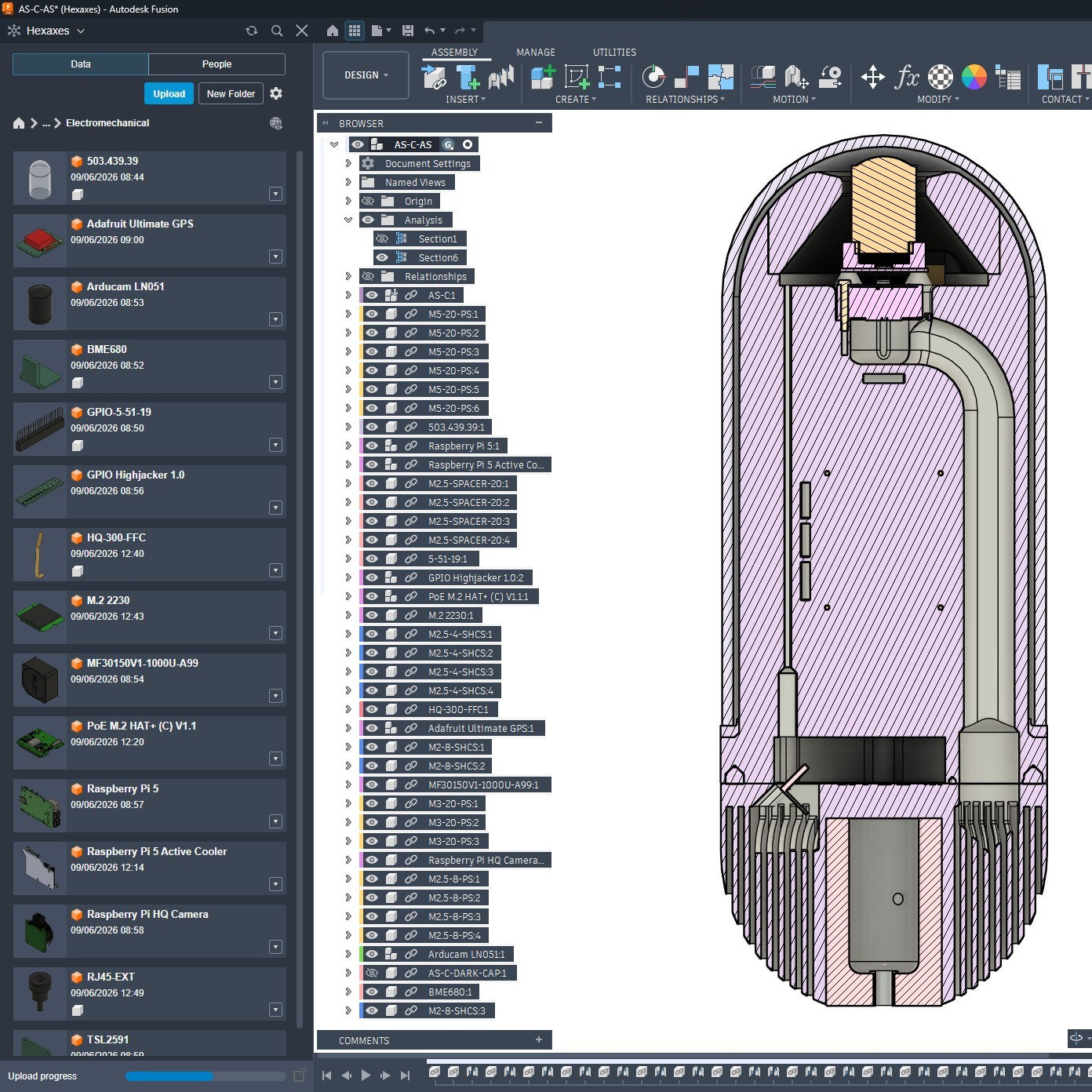

• Fusion 360 Design File.

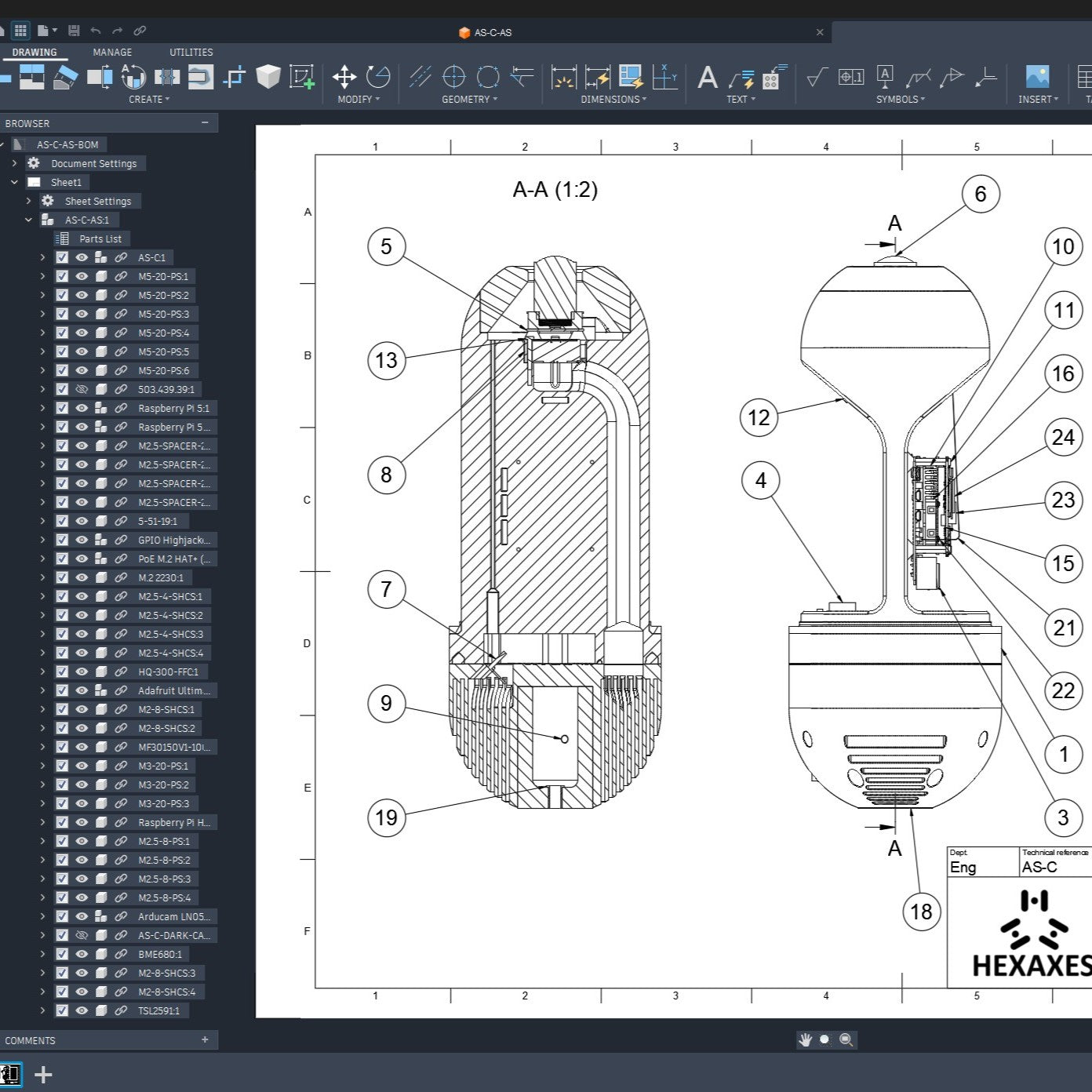

• Diagramatic Bill Of Materials (BOM).

The CAD Pack makes it possible to edit, modify and change the design. You can incorporate different sensors, or remove ones already included. This is not possible with the basic STLs Set. Downloading the CAD Pack also supports my work, with a percentage of any profits going back to the community.
