The MountOne Hardware Kit.

The Hardware Kit for The MountOne GOTO Telescope Mount.

Considerable time and effort has gone into selecting and testing the components in the MountOne Hardware Kit.

Each part has been selected for its quality, tested to ensure its durability and packaged together into The MountOne Hardware Kit for your convenience.

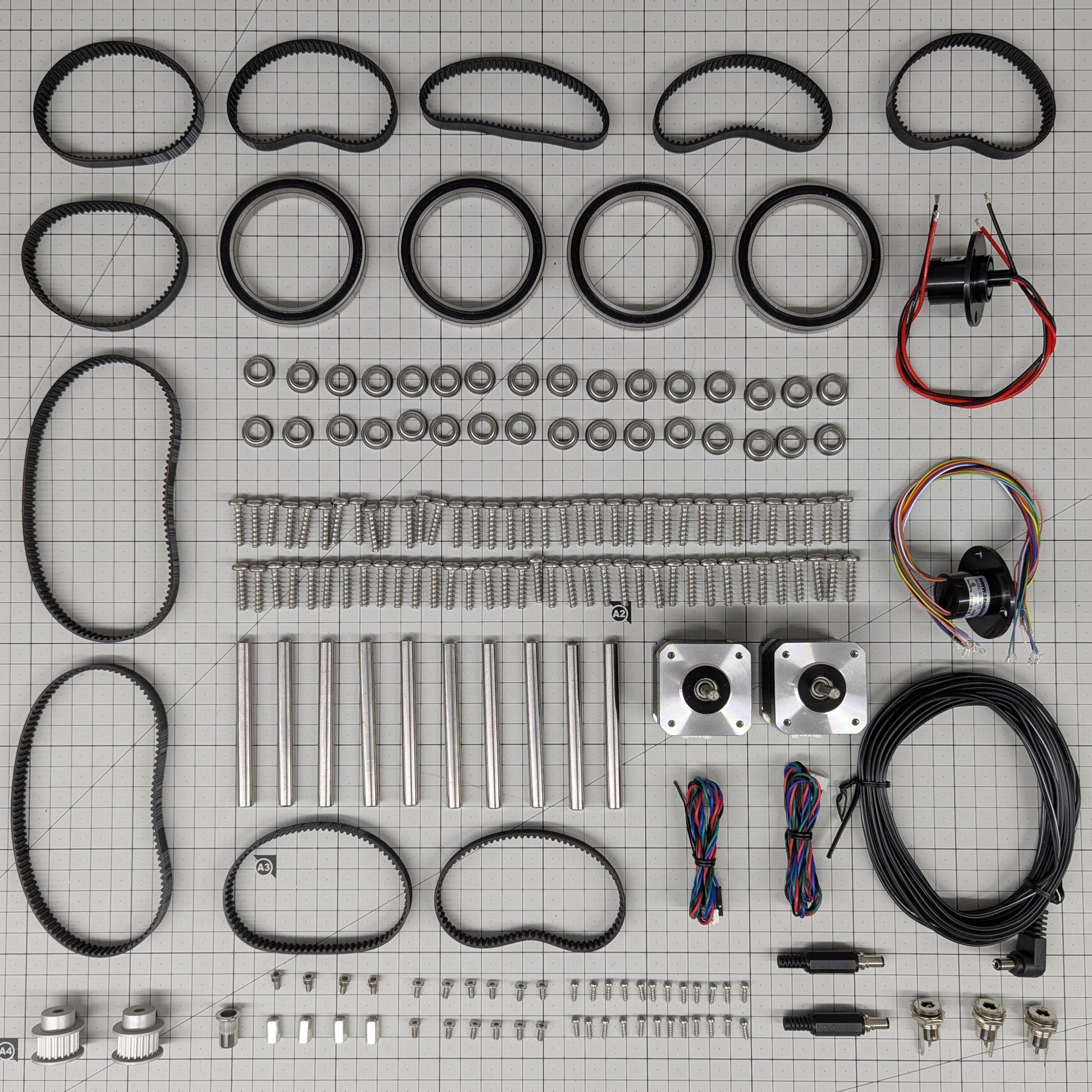

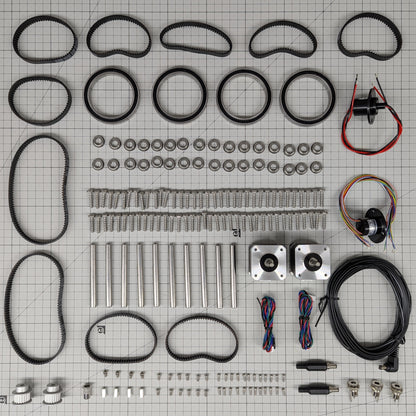

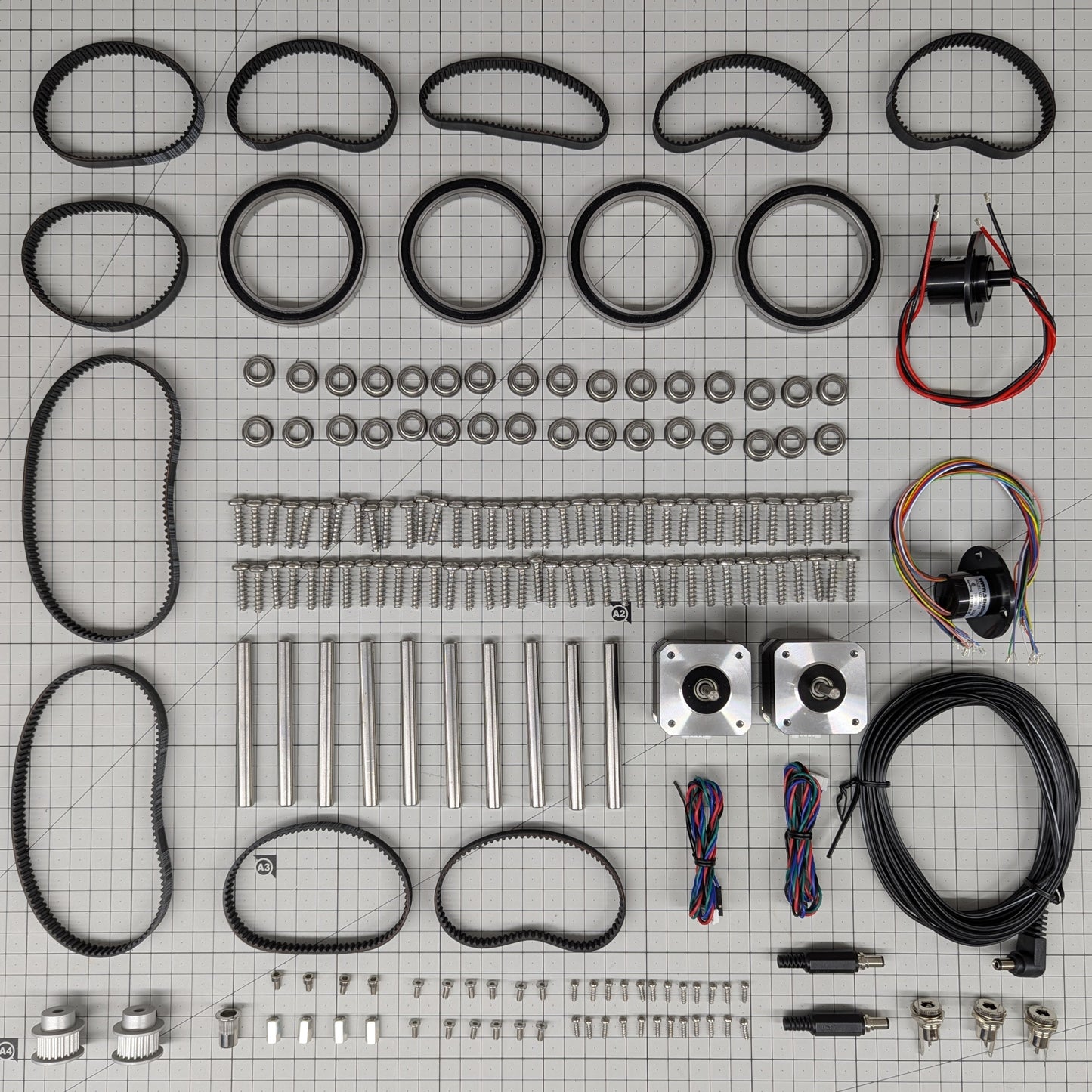

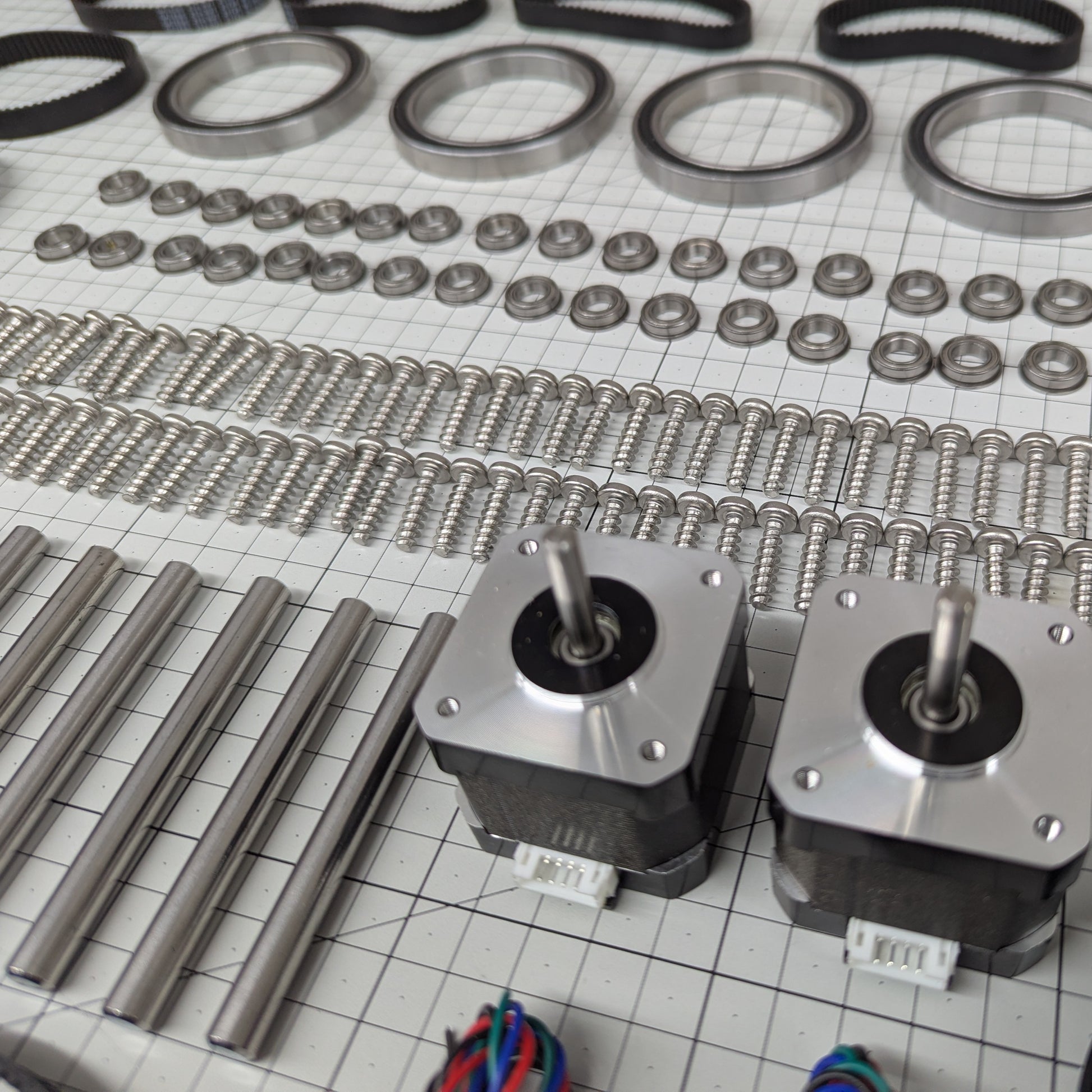

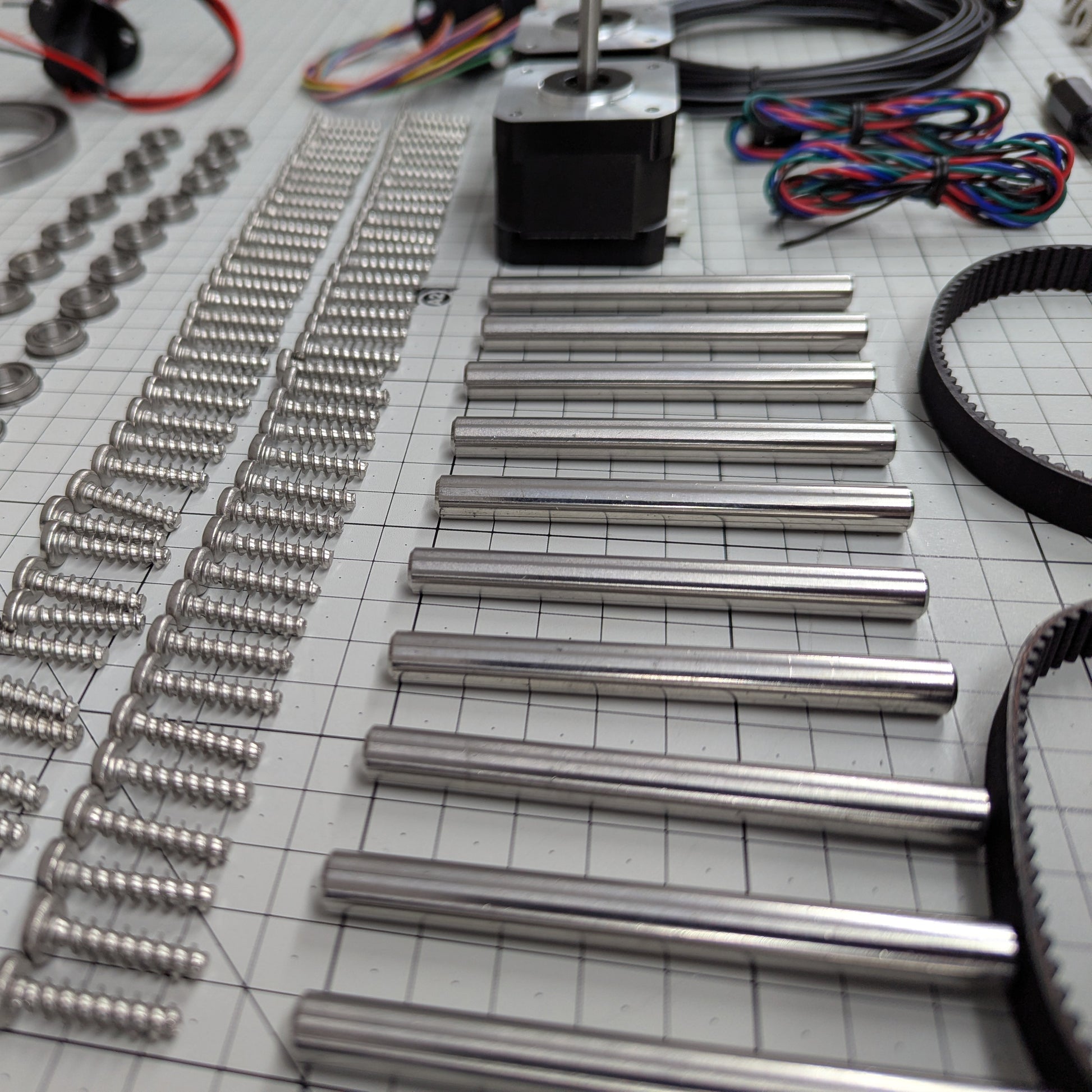

The MountOne Hardware Kit includes the following parts.

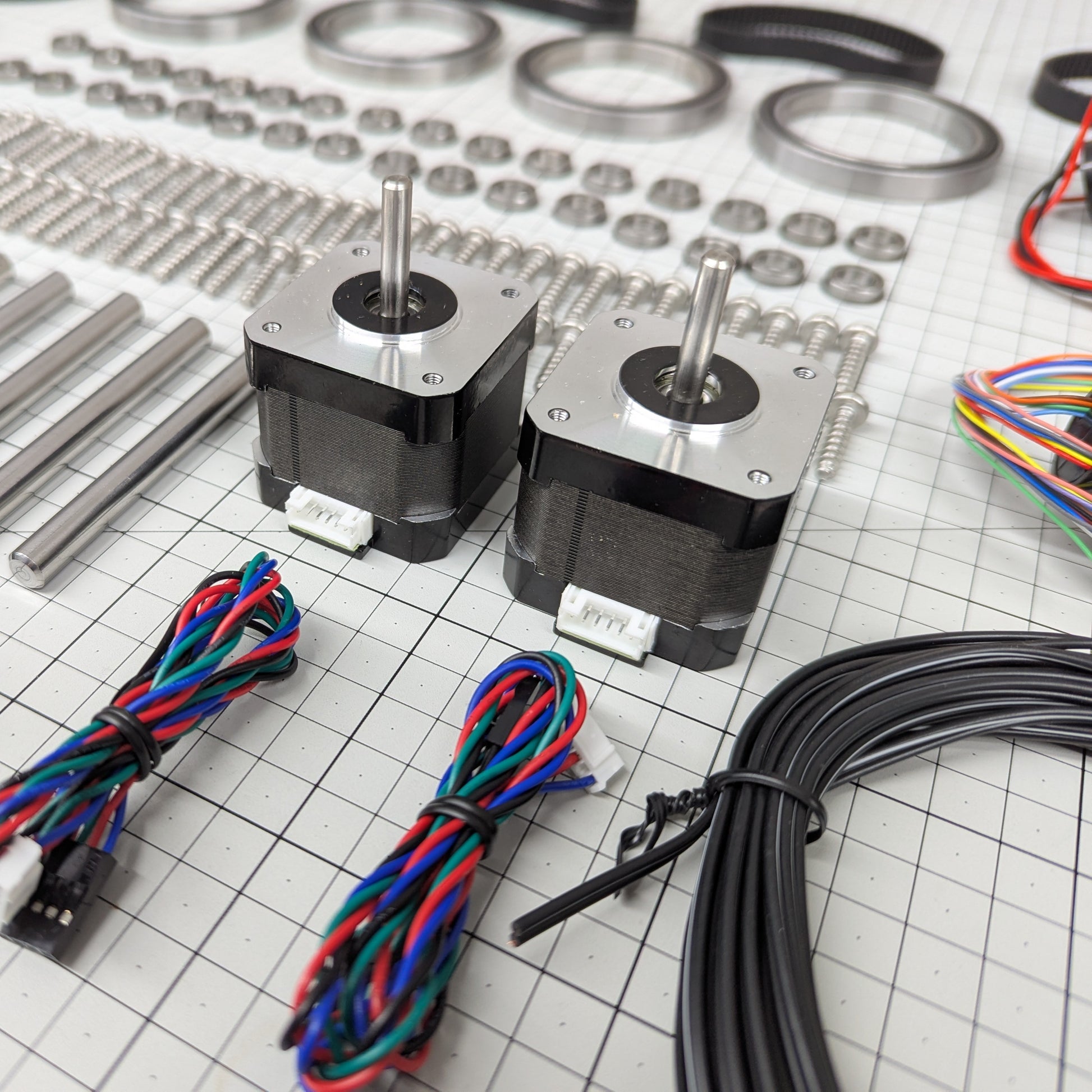

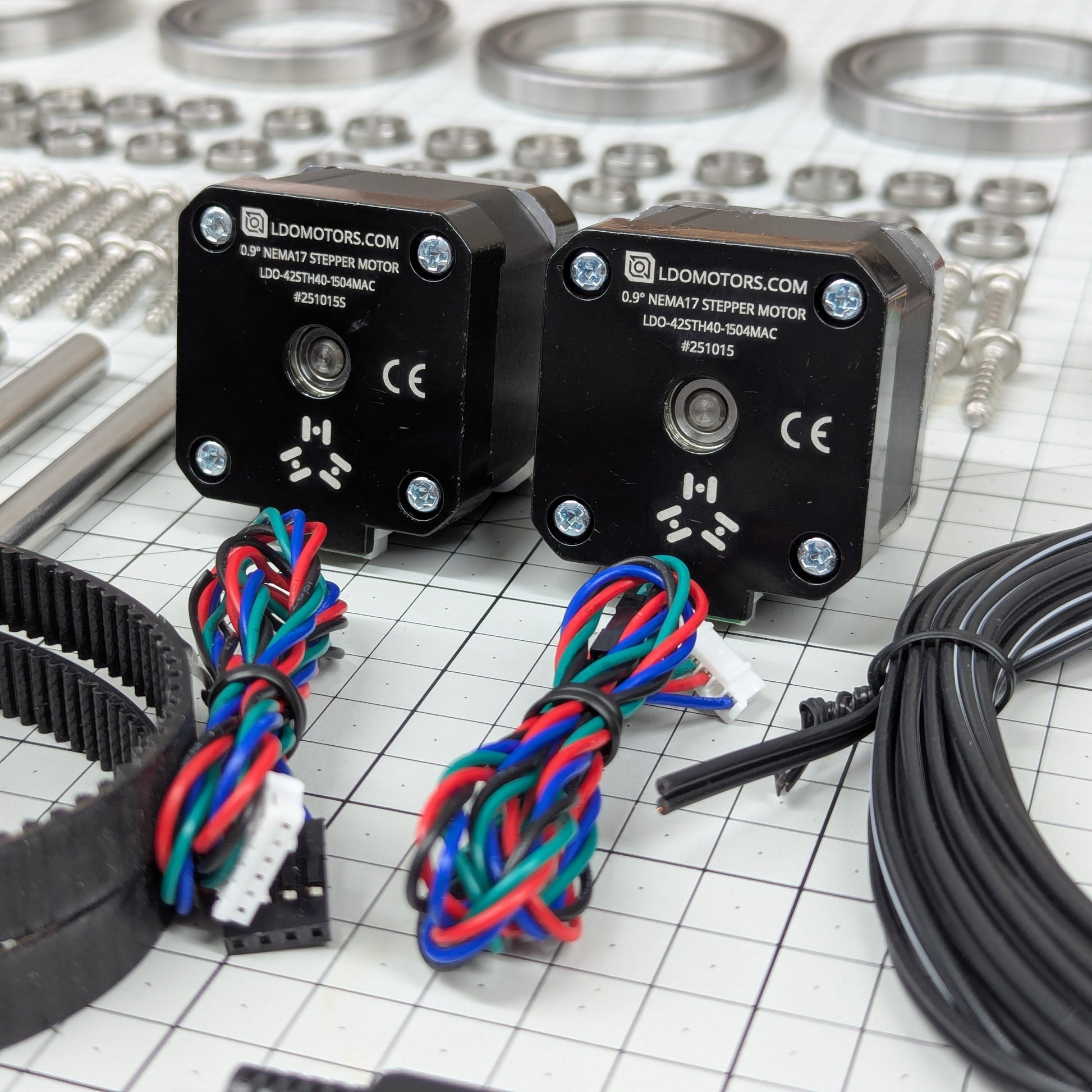

• 2 x LDO 0.9° Stepper Motors & Cables.
• 4 x 6811-2RS Bearings.
• 32 x MF148ZZ Bearings.

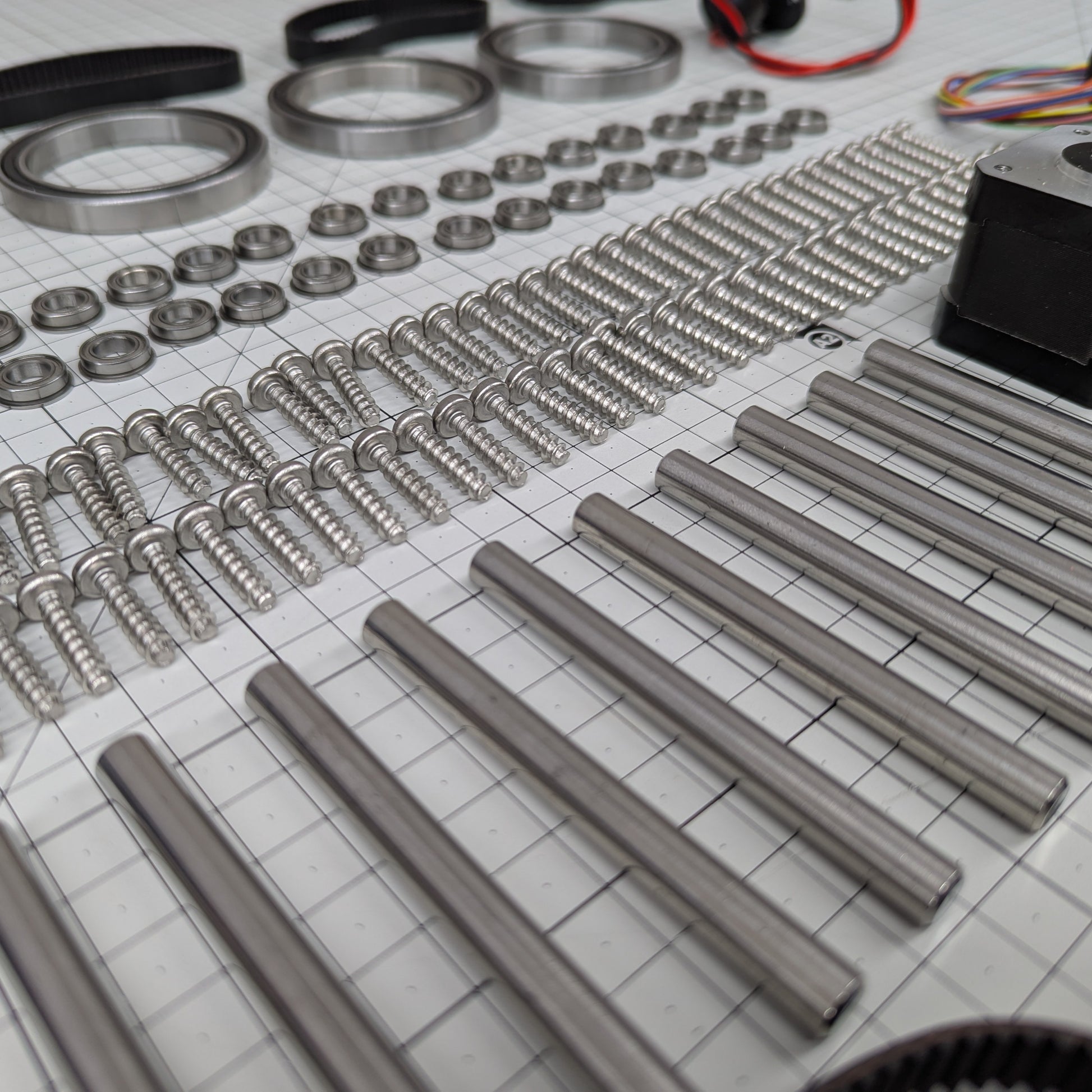

• 10 x 80mm Long, 8mm Diameter Bars.

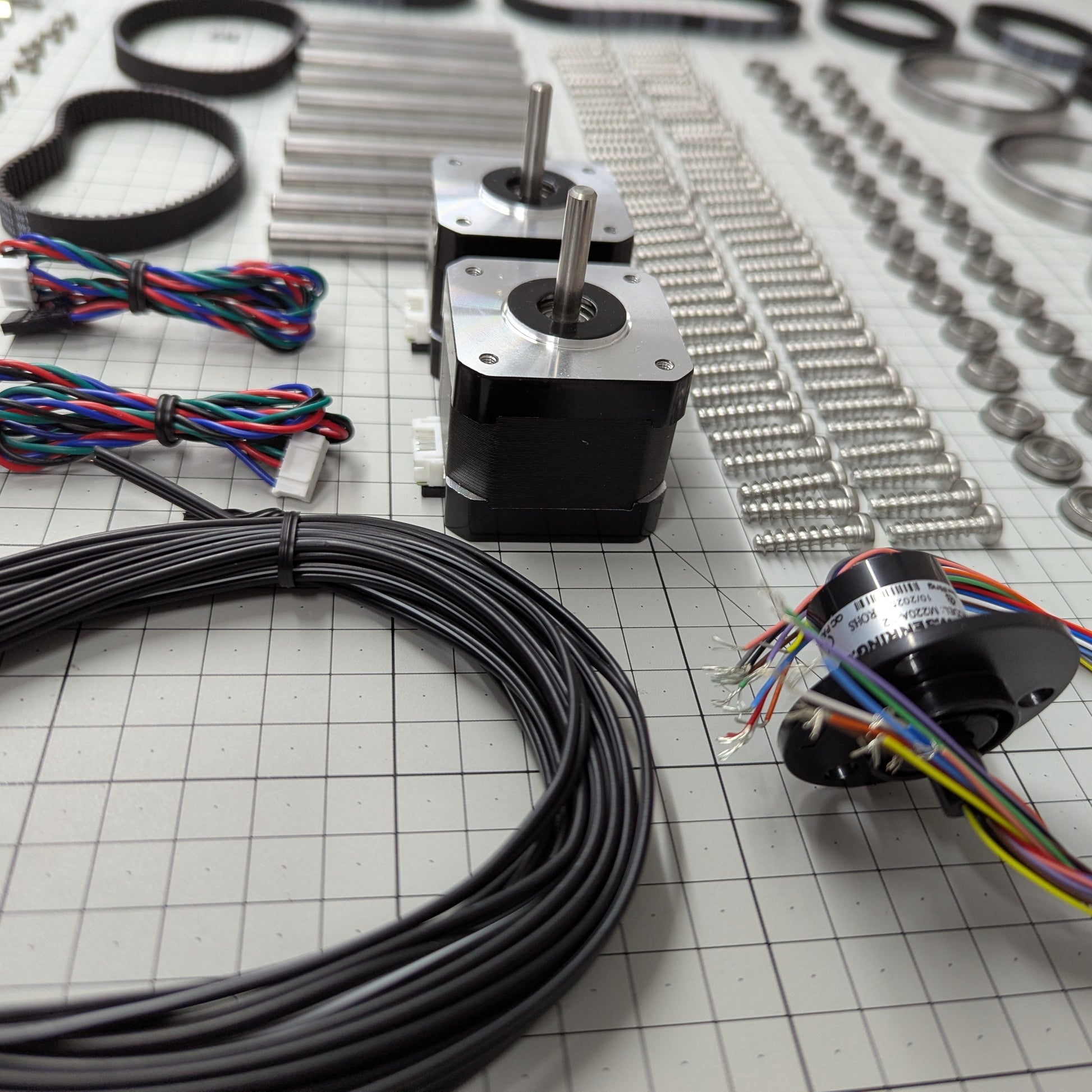

• 1 x Power Slip-Ring.
• 1 x Signal Slip-Ring.
• 3 x DC Female Sockets
• 2 x DC Male Plugs.
• 1 x DC Male Angled Plug with 2m cable.

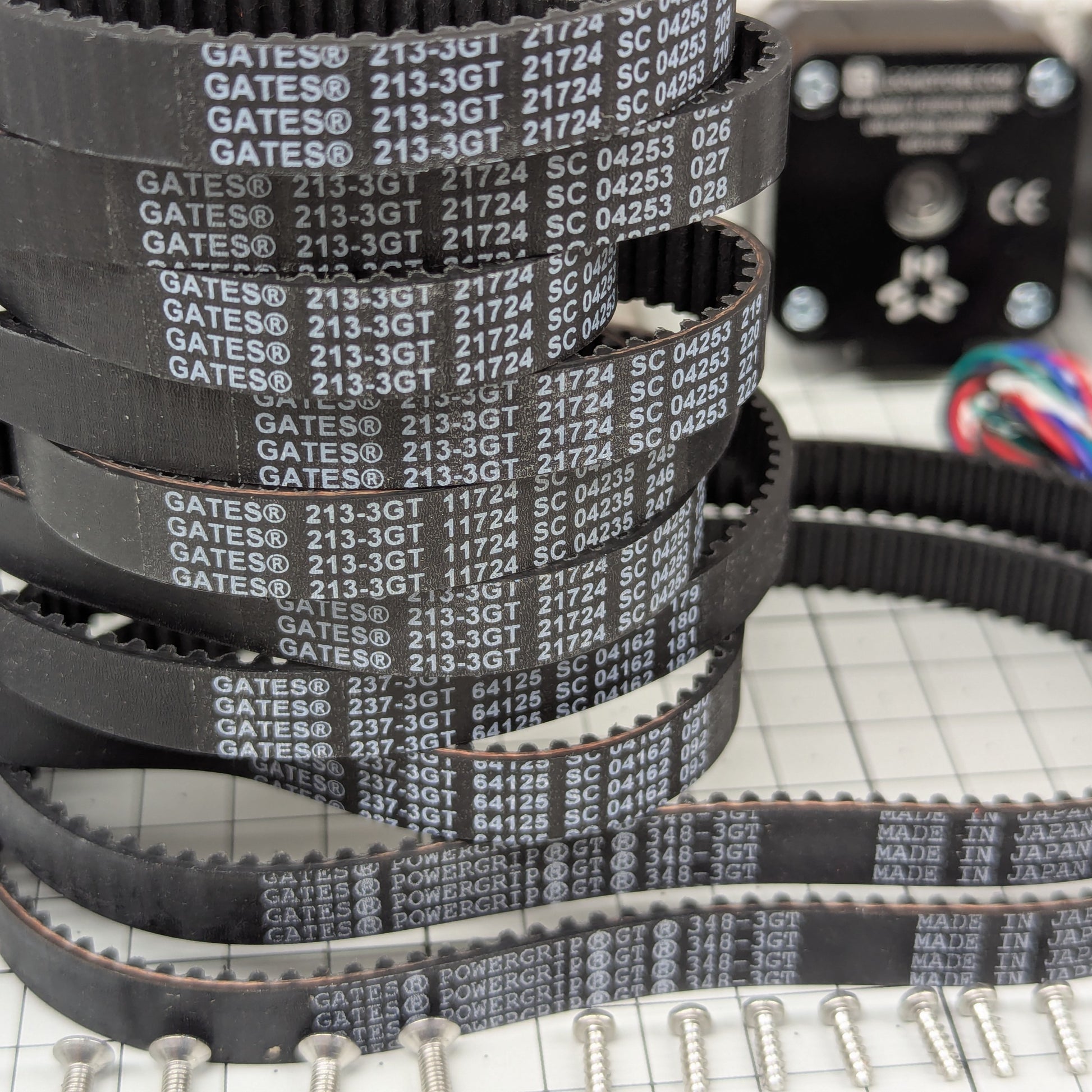

• 6 x Gates 3GT 213T Loop-Belts.
• 2 x Gates 3GT 237T Loop-Belts.
• 2 x Gates 3GT 348T Loop-Belts.

• 2 x 20T 3GT Pulleys.
• 72 x M5 20mm Screws for Plastic.
• 24 x M2.5 8mm Screws for Plastic.
• 12 x M3 8mm Countersunk Bolts.
• 4 x M3 10mm Standoffs.
• 4 x M3 5mm Socket Cap Screws.

Included with the MountOne Hardware Kits are the following downloads.

• The MountOne CAD Pack.
  • STEP Files, including the Main Assembly.
  • STL Files, full sets with all calibration sizes.
  • F3Z Fusion Files, the fully-editable Master Assembly.
  • PDF Files, Bill-Of-Materials with Fixings & Printed Parts.
  • 3MF Files, for Bambu Lab P2S & A1 Mini.


Click here for full details on The MountOne CAD Pack.

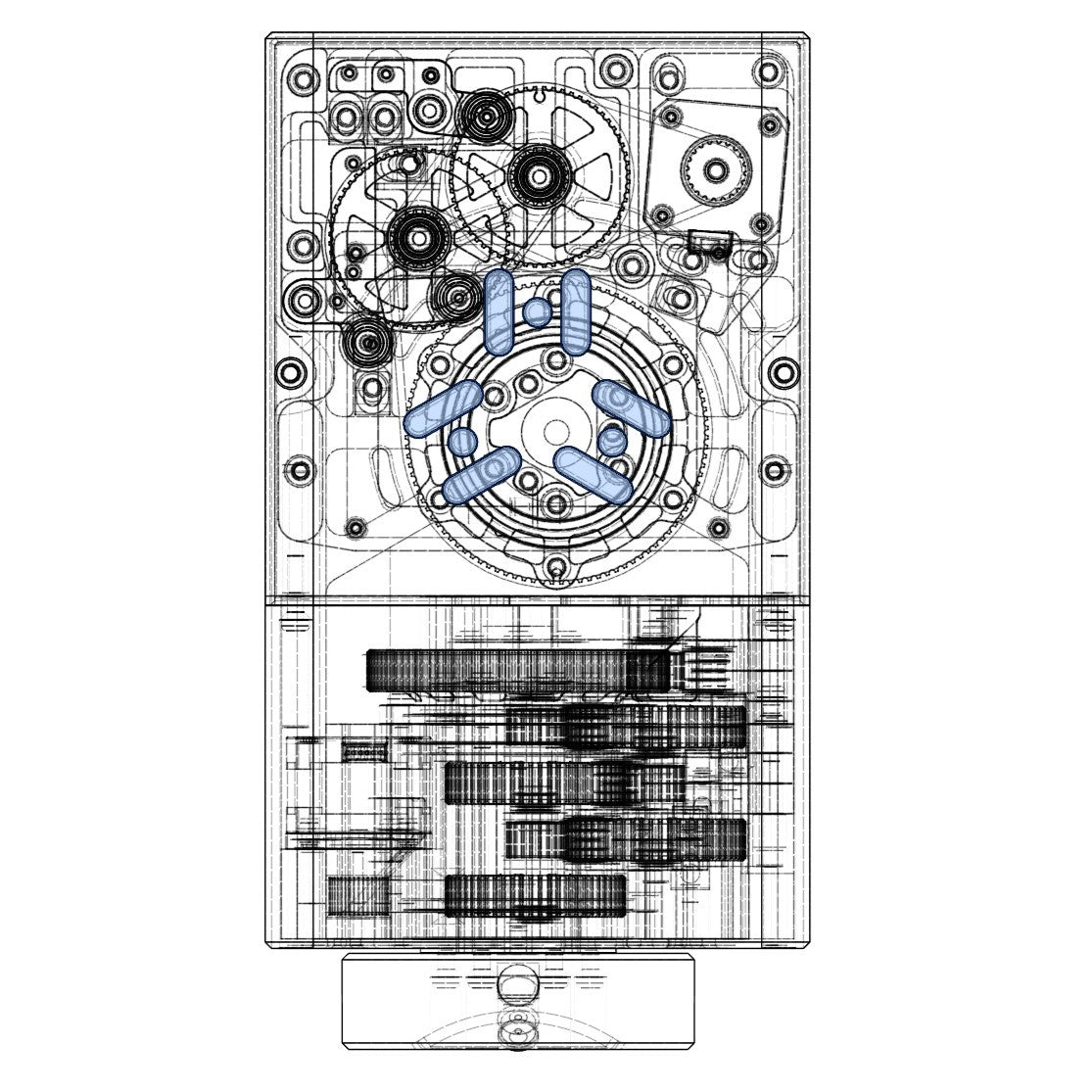

The MountOne GOTO Telescope Mount.

The MountOne GOTO Telescope Mount uses two high performance 0.9° stepper motors coupled to two 5-stage 405:1 belt-driven reduction-drives. This configuration removes almost all backlash in the motion system. The MountOne is able to track with a computed  resolution of 0.25 arcseconds per-step while still being able to slew at 3° a second.

Eighteen bearings in the DEC & RA axes provide smooth and jitter free movement. Genuine Gates 3GT belts are used for each compound stage and are individually tensioned for optimal performance.

Integrated Slip-Rings pass power and signal data between the MountOne and one of four attached astrographs.

OnStep firmware controls the mount and provides a data-link to a huge range of astronomy software packages via one of four attached astrographs.

The Printed Equatorial Tripod (PET) provides polar alignment between latitudes of 30-90°.

The MountOne GOTO Telescope Mount, Printed Equatorial Tripod, and Four Astrographs can all be printed on machines with a build volume of 180X180x180 or larger.
