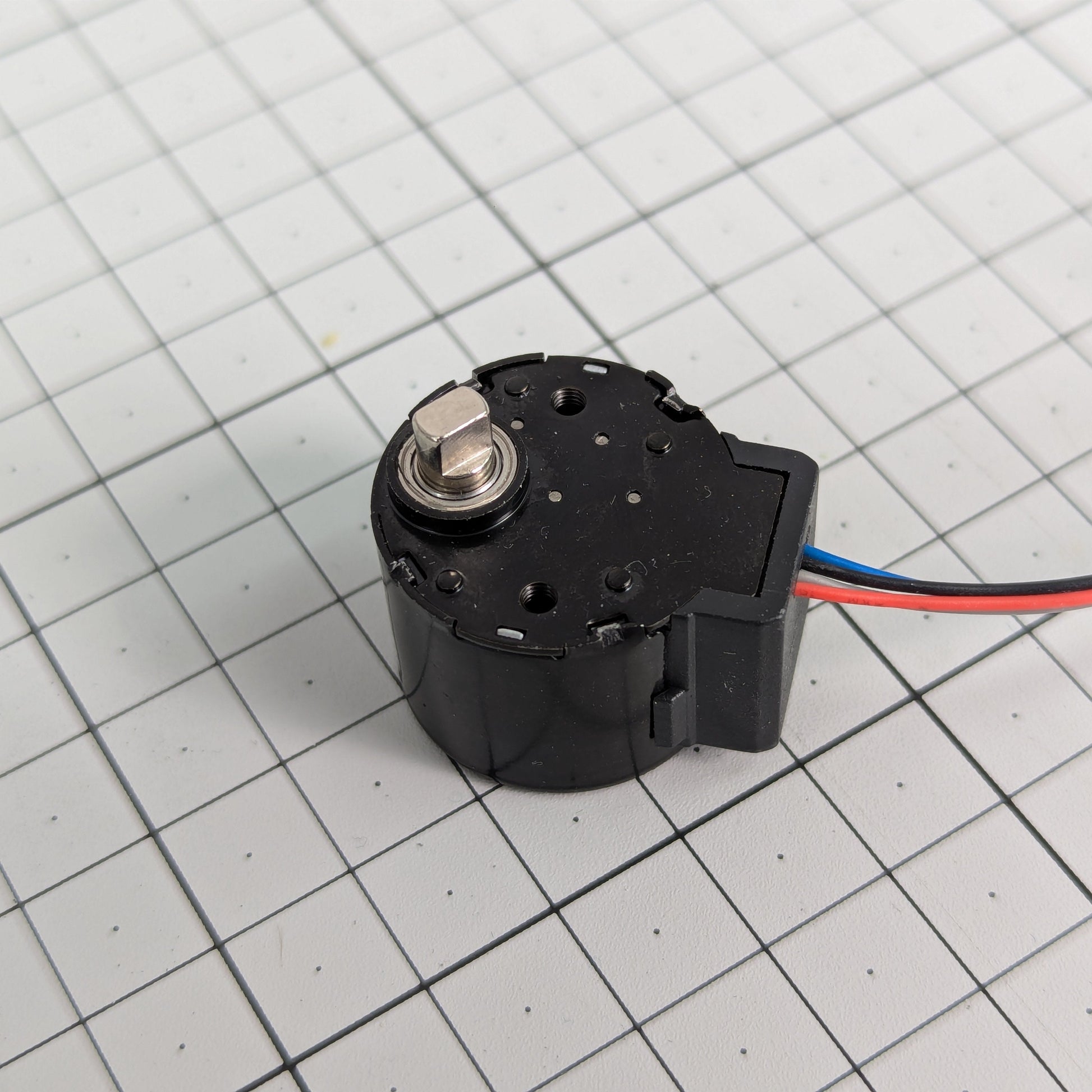

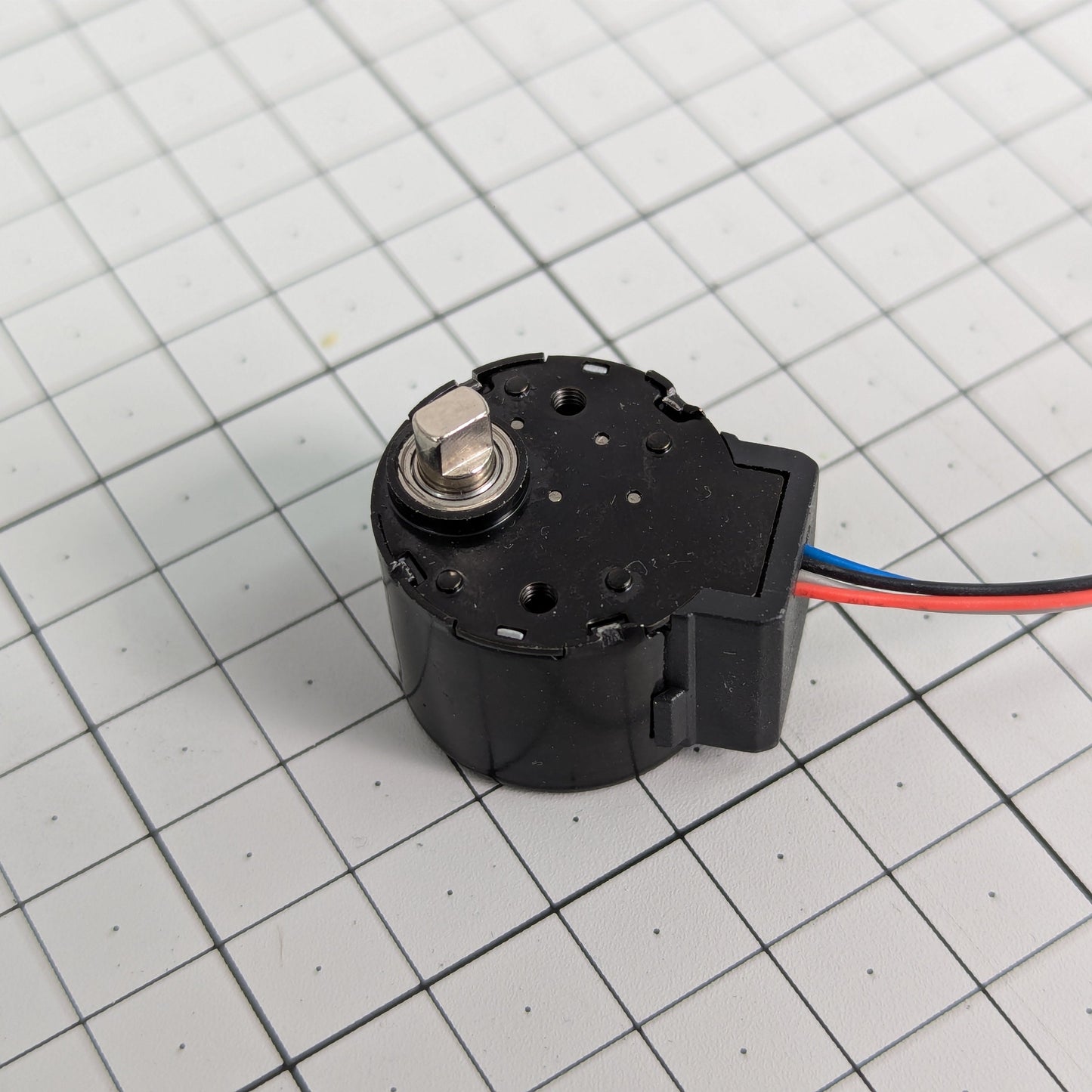

E3D's ToolChanger Spare ToolHead Stepper Motor.

Spare stepper motor for E3D's ToolChanger Tool Head. Direct Drop-In replacement.

Electrical:
400mA phase current RMS.
3mH inductance.

Mechanical:
32 Steps-Per-Revolution (11.25° step angle).
1:64 reduction gearbox.

Interface:

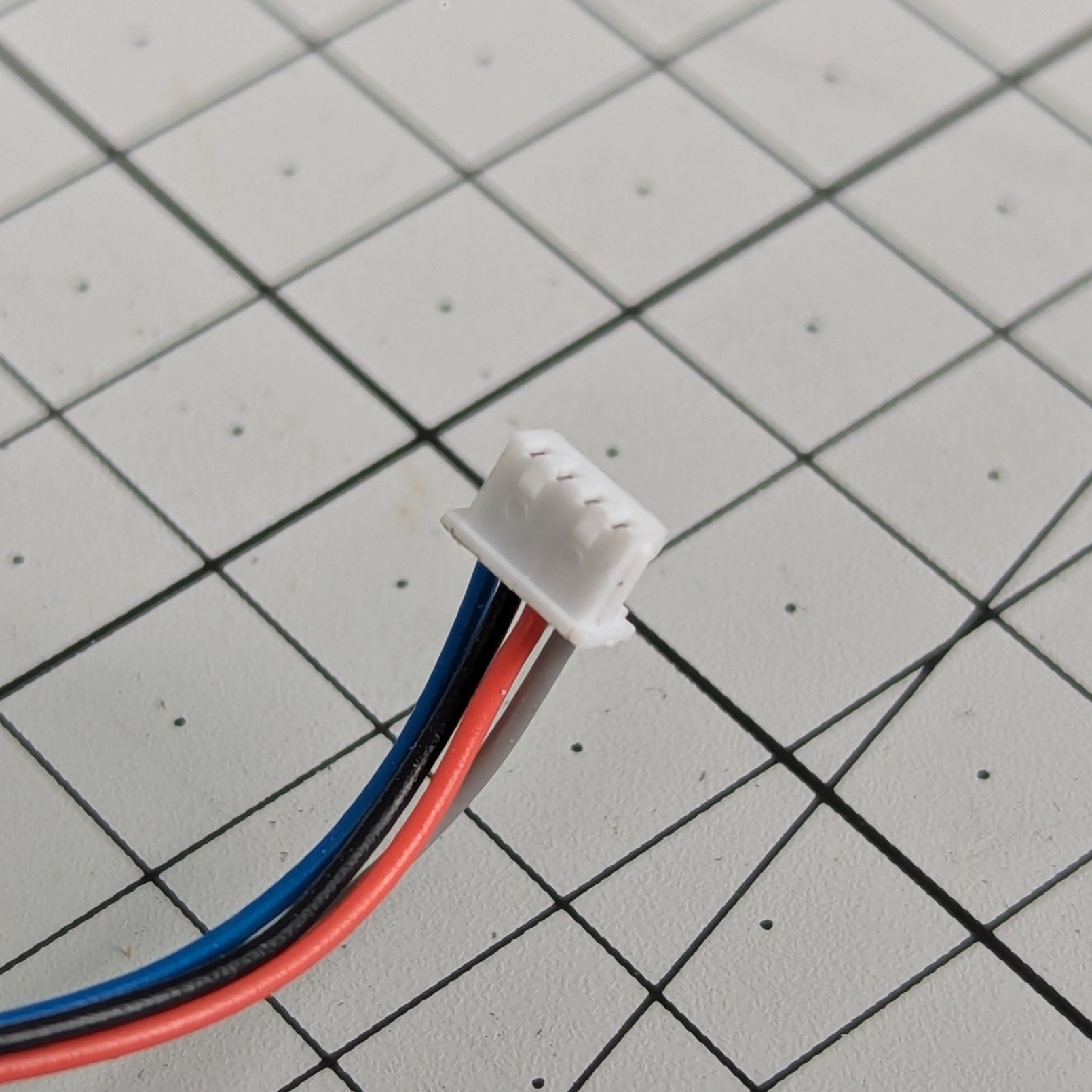

Motor connector: Molex PicoBlade 051021-0400.
M2.5 tapped holes on motor face plate.

Operational:
70°C max ambient operating temperature.
The internal temperature of motor must not exceed 80°C.
Rated to 1,500,000 tool changes.

Datasheet | Toolchanger-ToolHead-Stepper-M.pdf
